3-Axis vs 4-Axis vs 5-Axis Machining —
Kya Difference Hai? ⚙️
Simple Parts se Complex Aerospace — Kaunsa Setup Aapke Liye Sahi Hai?
3-axis, 4-axis, 5-axis — har machining setup ki apni capability aur application hai. Sahi choice = fewer setups + better quality + maximum machine utilization.
CNC machining mein 3-Axis, 4-Axis aur 5-Axis terms bahut common hain — lekin agar aap field mein naye hain, to sawal aata hai: in tino mein actual difference kya hai?
Simple language mein samjhenge — kya difference hai, kaunsa setup kab better hai, aur aapke component ke liye kaunsa machining approach choose karna chahiye!
1️⃣ 3-Axis Machining — Foundation
3X
3-Axis CNC Machining
X + Y + Z — Three Linear Axes
3-axis VMC — basic to medium complexity parts ke liye excellent. Pocket, drilling, facing, 2D profiles — fast aur cost-effective!
✅ 3-Axis Best For:
- 2D profiles + pockets
- Drilling + tapping
- Facing operations
- General 3D machining
- VMC / HMC production
⚠️ 3-Axis Limitation:
- Multiple sides = multiple setups
- Complex angles difficult
- Re-clamping needed
- Compound angles impossible
📌 3-Axis = General engineering, job work, VMC shops ke liye most practical solution!
2️⃣ 4-Axis Machining — Rotary Power
4X
4-Axis CNC Machining
X + Y + Z + A (ya B) Rotary Axis
More Capable!
💡 Key Benefit: Component ko rotate karke different sides par machining — fewer manual setups!
✅ 4-Axis Best For:
- Multiple-side machining
- Rotary components
- Holes at different angles
- Fixtures multi-component
- Reduced manual setups
📦 4-Axis Real Example:
Component ke 4 different faces par machining hai — rotary axis ki help se ek setup mein sab possible! Manual re-clamping 4 baar karne ki zarurat nahi!
4-Axis Common Applications:
Rotary parts
Cam shafts ⭐
Indexing fixtures
Multi-face parts ⭐
Gear housings

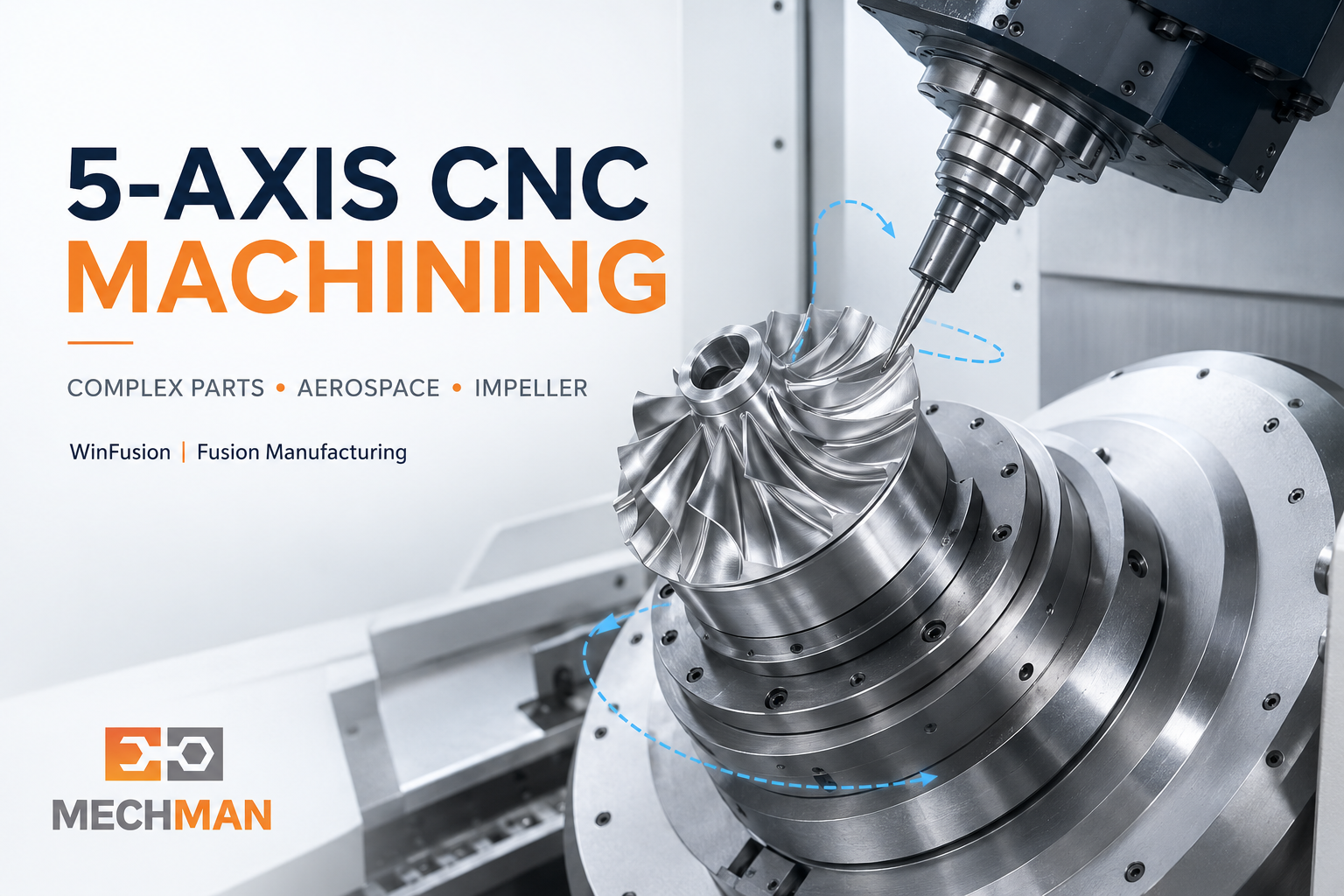

3️⃣ 5-Axis Machining — Advanced Level ⭐
5X
5-Axis CNC Machining
X + Y + Z + 2 Rotary Axes — Full Freedom
Most Advanced ⭐
💡 Major Advantage: Tool ya component ko any orientation mein position karo — complex geometry, fewer setups, better reach!
5-axis machining — complex aerospace, impeller, medical parts ek setup mein. CAM + proven post processor + machine simulation = sab essential!
✅ 5-Axis Sabse Better For:
- Aerospace components ⭐
- Impellers + turbine blades
- Medical implants
- Mold & Die cavities
- Complex automotive parts
- Precision engineering
🚀 5-Axis Real Benefits:
- Fewer setups ⭐
- Better tool reach
- Shorter tools possible
- Better surface finish
- Complex geometry possible
- Higher accuracy

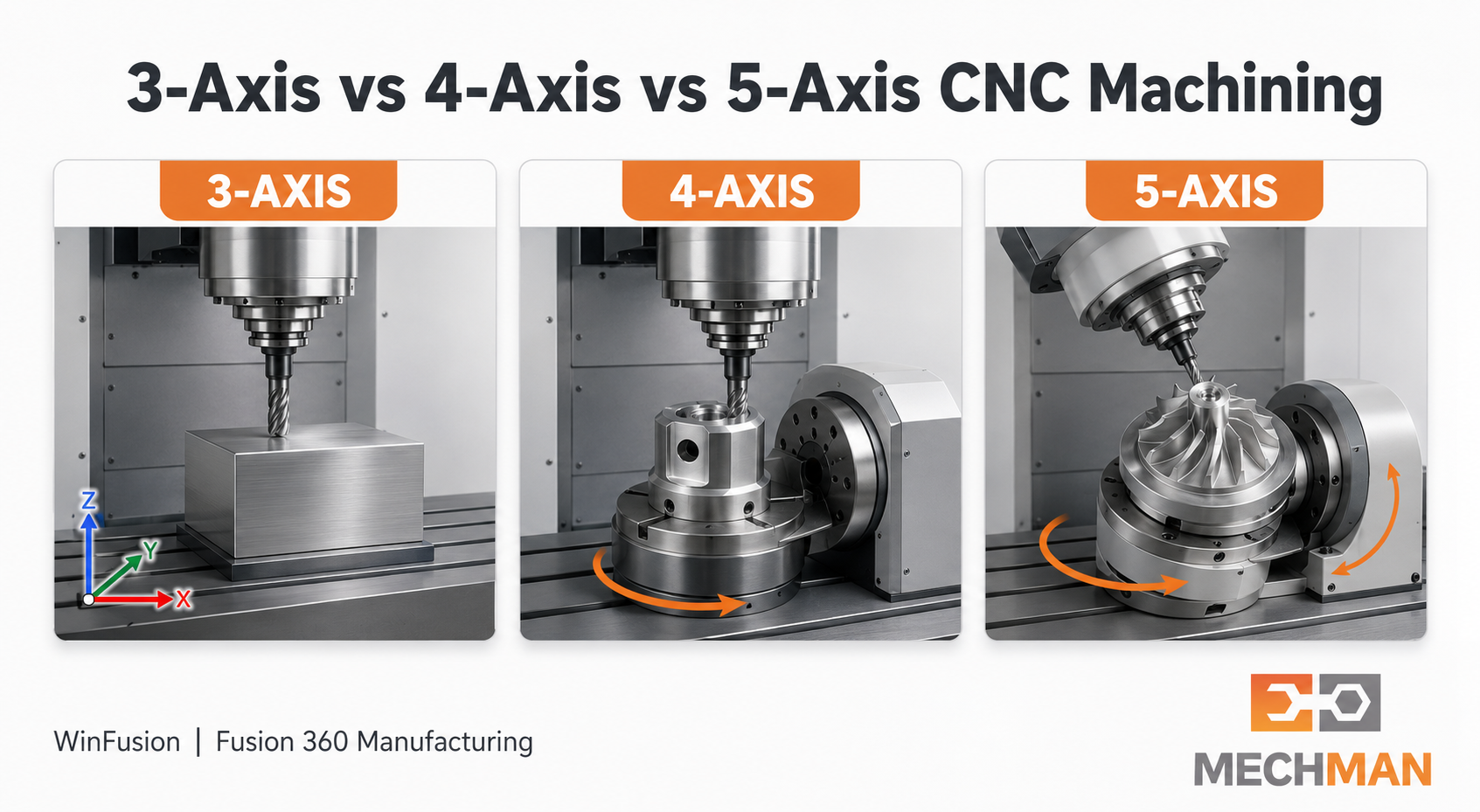

📊 3-Axis vs 4-Axis vs 5-Axis — Complete Comparison
| Feature |
3-Axis |
4-Axis |
5-Axis ⭐ |
| Linear Axes |
X, Y, Z |
X, Y, Z |
X, Y, Z |
| Rotary Axes |
None |
1 (A or B) |
2 Rotary ⭐ |
| Multi-Side Machining |
Limited |
Yes ✅ |
Excellent ⭐ |
| Manual Repositioning |
More likely |
Reduced |
Significantly Less ⭐ |
| Programming Complexity |
Simple |
Medium |
Advanced |
| Post Processor Importance |
Important |
Very Important |
Critical! ⭐ |
| Typical Applications |
General VMC Work |
Rotary + Multi-face |
Complex Aerospace ⭐ |
⚠️ Machine Hone Se Hi Kaam Complete Nahi Hota!
Ye bahut important point hai — Especially 4-Axis aur 5-Axis ke liye!
Expensive 4-axis ya 5-axis machine purchase karne ke baad — proper CAM + post processor ke bina machine idle rahegi!
Tool library + proven post + machine simulation = machine pehle din se confidently productive. WinFusion yahi deta hai!
CAM Software→Correct Toolpath→Machine Simulation→Proven Post ⭐→Correct NC Code→CNC Machine ✅
🔧 5-Axis Mein Post Processor Itna Important Kyun?
3-Axis mein:
Programming relatively straightforward hoti hai. Post processor bhi simpler hota hai. Thoda modify karke bhi kaam chal sakta hai.
5-Axis mein — CRITICAL!
Rotary axis configuration, machine kinematics, TCP, RTCP, safe movements — sab perfectly configured hona mandatory hai!
5-Axis CAM solution evaluate karte waqt check karo:
→Exact machine supported hai?
→Post processor configurable?
→Machine simulation milega?
→Rotary axes correctly set?
⭐Onsite implementation?
⭐Technical support ongoing?
WinFusion — 3/4/5-Axis Implementation Expert 🚀
WinFusion — 3/4/5-Axis, Turn-Mill — sab ke liye proven post + machine simulation + implementation. Machine install hone ke baad pehle din se productive!
✅3-Axis Programming
✅4-Axis Programming
✅5-Axis Programming ⭐
✅Machine-Specific Post Processor
✅Machine Simulation Setup
✅Turn-Mill Programming
✅Tool Library + Training
⚡Day 1 Productive Machine!
Quick Summary — Yaad Rakho! 🎯
3-Axis
X + Y + Z
General + Job Work
4-Axis
+ Rotary A/B
Multi-face + Rotary
5-Axis ⭐
+ 2 Rotary
Complex + Aerospace
Naye 4-axis ya 5-axis machine ke liye — machine model + controller details share karo. WinFusion proven post + simulation + implementation se Day 1 se productive banayega! ✅
⚙️
