Collision Avoidance —
WinFusion Mein 5-Axis Ka Safety Net! 🛡️
Auto Tool Tilt | Holder Detection | Fixture Clearance | Machine Simulation | Mould Die Aerospace
Collision Avoidance = CAM toolpath ko aise control karna ki cutting ke time tool, tool holder ya shaft component/fixture se takraye nahi. 5-axis machining mein sirf tool tip dekhna enough nahi — holder bhi check karna mandatory hai!
5-axis machining mein sirf tool tip ka path correct hona enough nahi — tool deep cavity mein ja raha ho, component ke paas wall ho ya holder part ke bahut close aa raha ho to holder collision ka serious risk hota hai! WinFusion mein Fusion ki multi-axis Collision Avoidance capability potential collision identify karke tool axis ko automatically tilt kar sakti hai!
“Collision Avoidance = Tool path sahi + Holder bhi safe + Fixture bhi clear — sab verify hone ke baad NC code machine par!” ✅
Complete WinFusion workflow: 3D Model → Toolpath → Tool Axis Control → Collision Avoidance → Machine Simulation → Proven Post → NC Program → CNC Machine! ✅
💥 Collision Kahan Hoti Hai — 3 Risk Zones!

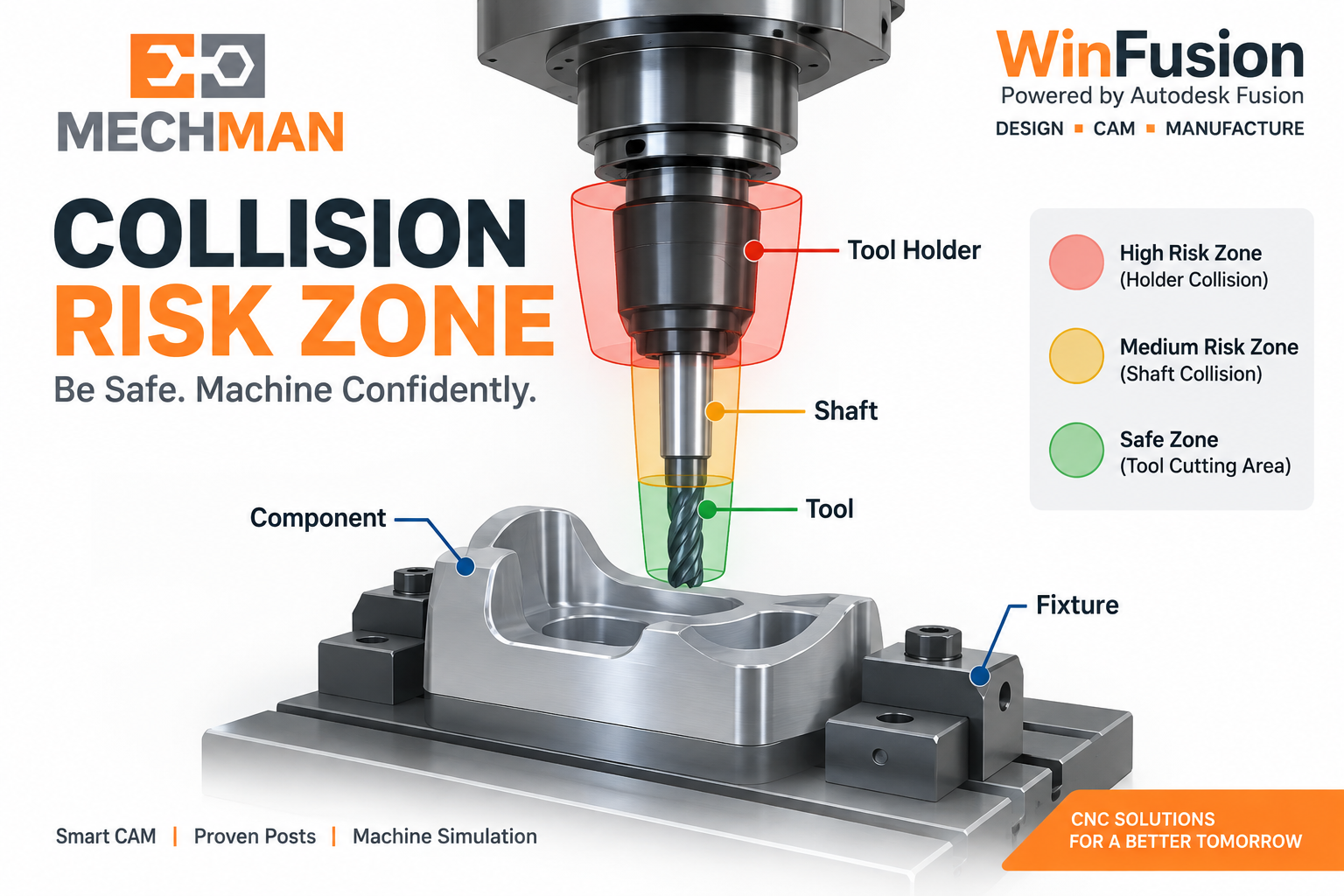

5-axis machining mein ye 3 areas collision risk zone hain — sab check karna zaroori!
5-axis mein collision sirf tool tip se nahi hoti — tool holder, shaft, chuck, fixture sab component ke paas aate hain. Har element ko check karna mandatory hai production se pehle!
- Wrong path = cut wrong area
- Over-travel
- Gouge into component ⚠️
- Most common ⚠️
- Holder side wall se hit
- Deep cavity = high risk ⭐
- Rotary = fixture move
- Clamp proximity risk
- Setup design critical ✅
WinFusion Collision Avoidance: Tool + Holder + Fixture — teeno check hote hain automatically! ✅
⚙️ WinFusion Mein Collision Avoidance Kaise Kaam Karta Hai?
Step-by-step: WinFusion collision detect karta hai aur automatically solve karta hai!
1
Programmer Tool + Holder define karta hai — diameter, length, shank, holder geometry ⭐
2
Clearance distance define karo — tool/holder component se kitna door rehna chahiye
3
Software potential collision points identify karta hai — automatically! ⭐
4

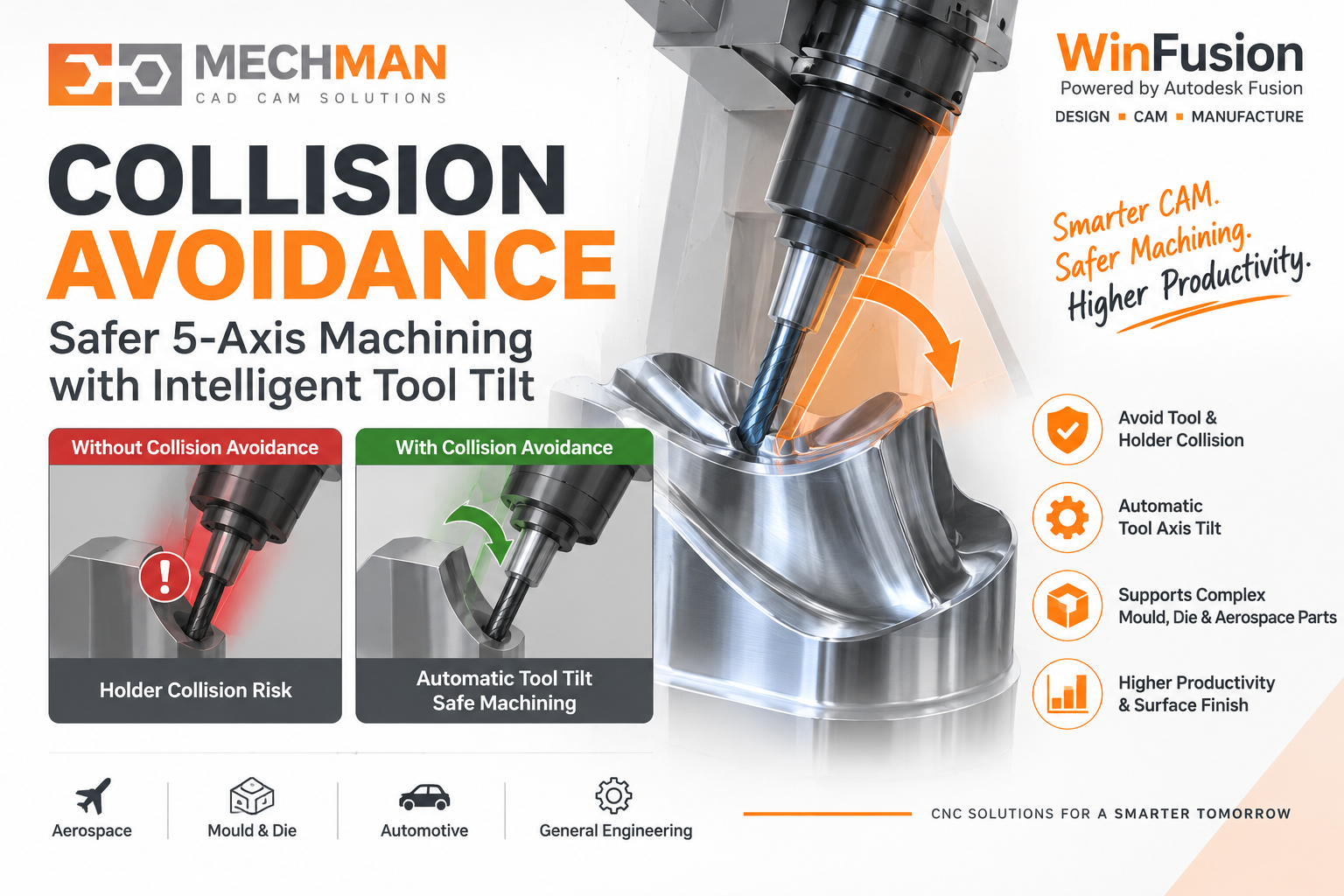

Tool axis automatically tilt hoti hai → Holder wall se clear ho jata hai! ⭐⭐
✅
Machining safely continue — component damage risk minimize! 🚀
Automatic Mode ⭐⭐
Software khud decide karta hai ki kis direction mein tilt karna hai. Programmer ko manually change nahi karna — most convenient!
Towards/Away Point ⭐
Programmer defined point se away ya towards tilt direction control karo. Advanced cases mein full tilt direction control!
📌 Deep Mould Cavity Example — Collision Avoidance Ka Real Power!
Deep mould cavity machining — without aur with collision avoidance:

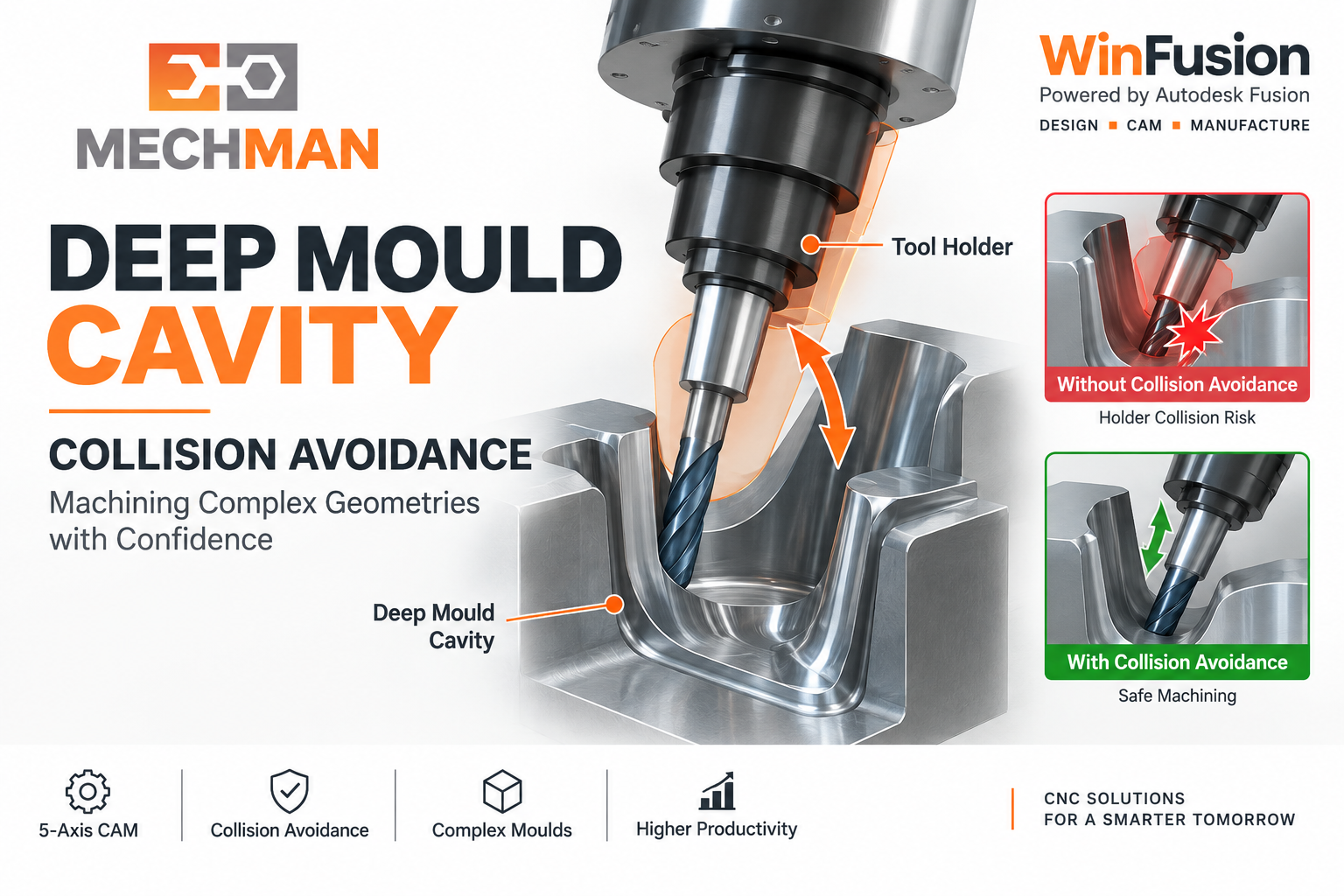

Deep mould cavity: Tool tip cavity tak easily pahunchta hai — lekin holder side wall se hit ho sakta hai. Collision Avoidance ke saath tool automatically tilt hota hai → holder safe distance par → machining reliable!
❌ Without Avoidance:
→Tool tip: Cavity reach ✓
→Holder → Side wall → 💥
→Machine alarm / damage ⚠️
✅ With Avoidance:
→Collision detected ⭐
→Tool axis auto-tilt ⭐
→Safe machining continue ✅

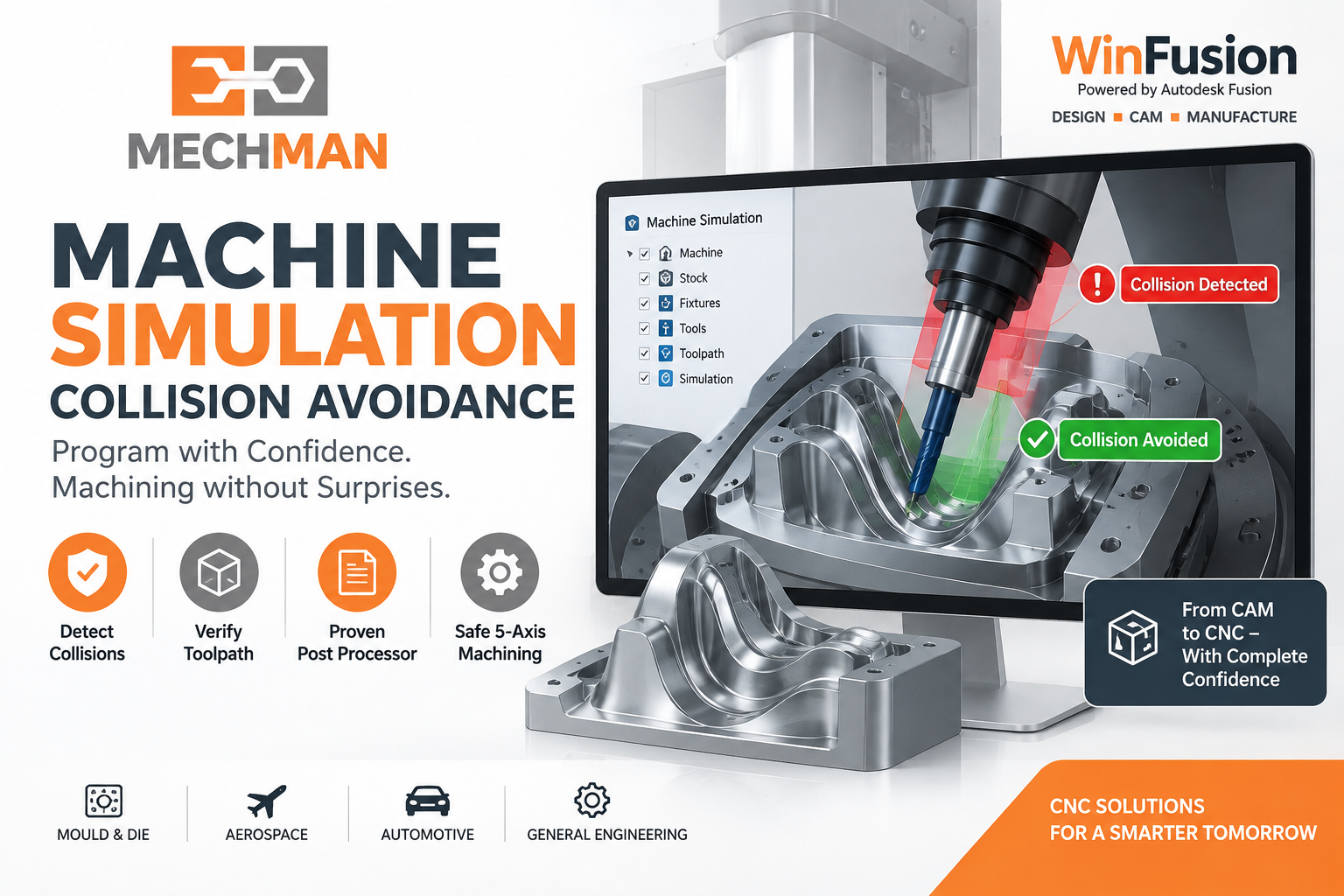

🎮 Machine Simulation — Collision Avoidance Ka Doosra Layer!
🎮
CAM Collision Avoidance + Machine Simulation = Complete Safety Net! ⭐
CAM mein safe = good. Machine simulation verify karo = production confident!
WinFusion: CAM Collision Avoidance (toolpath level) + Machine Simulation (machine kinematics level) + Proven Post Processor (NC output level) = 3 layers of safety before actual cutting!
Layer 1 ⭐
CAM Collision Avoidance — Toolpath level
Layer 2 ⭐
Machine Simulation — Kinematics level
Layer 3 ✅
Proven Post — NC output verified
Autodesk bhi confirm karta hai: 5-axis simulation = errors/collisions ko machine par cutting se PEHLE identify karo! ✅
🏭 Collision Avoidance Kahan Sabse Critical Hai?
🔧 Mould & Die — Most Common!
- Deep cavities + ribs ⭐
- Side walls + cores
- Holder clearance critical
- Expensive tooling risk ⚠️
Holder collision = mould damage = scrap! ⭐
✈️ Aerospace + Blade:
- Blade between blades ⭐
- Thin walls proximity
- Rotary = complex movement
- High precision critical ✅
Blade collision = expensive scrapped part! ⭐
✅ WinFusion Collision Avoidance — Practical Benefits:
✅Auto Tool Tilt ⭐
✅Holder Clearance Safe
✅Fixture Safe ⭐
✅Shorter Tool Possible
✅Deep Cavity Safe ⭐
🛡️Machine Damage Prevent!
Collision Avoidance — 5-Axis Safety Net! 🛡️
Complex cavities, mould & die, aerospace parts aur difficult-to-reach areas ko safer way mein machine karne ke liye Collision Avoidance mandatory hai!
CAM Collision Avoidance + Machine Simulation + Proven Post Processor
= 3-Layer Safety — Production Confident! 🛡️🚀
