5-Axis machining ki real performance depend karti hai CAM strategy, post processor, machine simulation aur programmer ki understanding par — sirf machine lene se nahi!
5-Axis machining sirf machine lene se fast nahi ho jaati. Real performance depend karti hai CAM strategy, post processor, machine simulation aur programmer ki understanding par.
Bahut si companies expensive 5-axis machine kharid leti hain — lekin wrong toolpath ya generic post processor ki wajah se machine ki full capability use hi nahi kar pati!
WinFusion + Fusion Manufacturing ke saath advanced strategies use karke — machining time reduce, surface finish improve, tool life increase! 🚀
10 Advanced 5-Axis Strategies ⚙️
S1
Simultaneous 5-Axis Machining ⭐
Most Advanced
X, Y, Z ke saath A aur C axis ek saath move karti hain — sabse complex geometry ke liye:
Best Use:
- Aerospace Parts
- Impellers + Turbine Blades
- Medical Components
- Complex Mold Cavities
Benefits:
- Better surface finish ⭐
- Shorter cutting tools
- Less vibration
- Better tool reach
- Complex geometry easy
S2
Swarf Machining — Mirror Finish! 🪞
Finish Expert
Cutter ka side use hota hai instead of tip—angled walls aur taper surfaces ke liye best:
Swarf machining — cutter ka side use. Angled walls, taper surfaces pe mirror-like finish. Aerospace mein standard strategy!
Complex free-form surfaces smooth finish ke saath. Best for:
- Injection Molds
- Die Manufacturing
- Automotive Parts
✅ Smooth motion + Less polishing
S4
Auto Tool Axis Control
Fusion Manufacturing automatically tool ko tilt karta hai:
- Holder collision avoid
- Tool engagement improve
- Deep cavity machining
✅ Machine movement smooth!
S5
Tool Orientation Opt. ⭐
Har angle par same orientation = wrong:
- Lead angle set karo
- Lag angle adjust karo
- Chip evacuation better
- Tool life longer
- Less vibration
S6
Collision Avoidance — Complete Verification 🛡️
Sirf tool collision check karna enough nahi hai. Professional verification mein sab check hona chahiye:
Tool
Holder
Arbor ⭐
Spindle
Rotary Table ⭐
Fixture
Machine Limits ⭐
⚠️ Machine simulation ke bina direct machine par program chalana = expensive crash risk! WinFusion complete collision-free simulation provide karta hai.
S7
Adaptive Roughing in 5-Axis
Constant tool load maintain karta hai — even in 5-axis:
↑Higher feed rate
↓Tool wear less
↓Cycle time short
⭐Better spindle load
S8
Machine-Aware Programming ⭐
Har 5-axis machine ki kinematics alag hoti hai:
Mazak VARIAXIS
Haas UMC
Okuma ⭐
DMG Mori
Makino ⭐
Generic post ≠ correct output. Machine-specific proven post = safe reliable machining!
S9
Rotary Axis Optimization — Smooth, Accurate, Fast
Advanced CAM software unnecessary rotary movement avoid karta hai — result: faster machining, less machine wear, smooth motion, better accuracy!

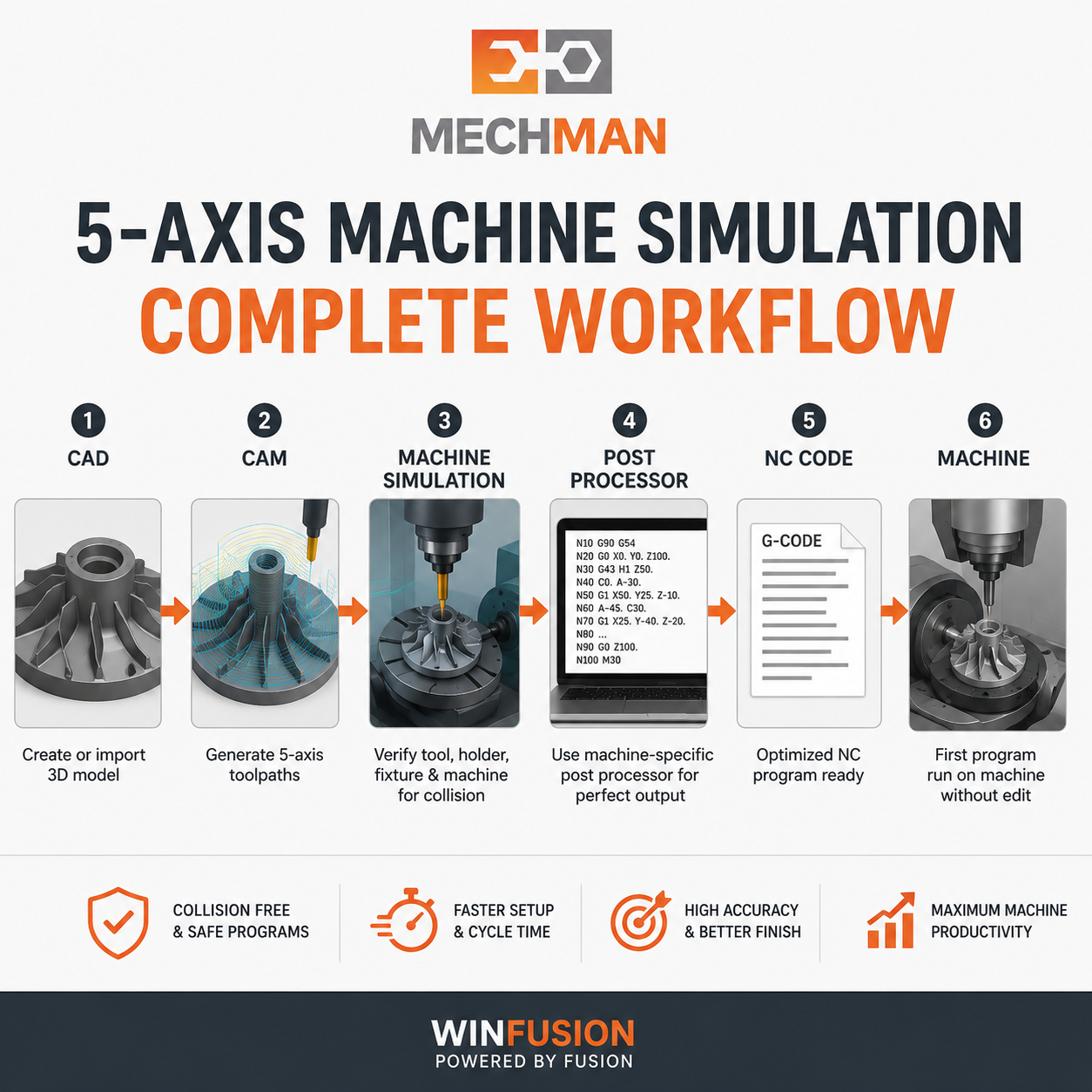

S10: Machine Simulation Before NC Code — Professional Workflow 🖥️
Professional 5-axis workflow—Machine simulation pehle, NC code baad mein. Is process se alarm, collision aur unexpected movement avoid ho jaate hain. ✅
⚠️ 5-Axis Programming Ki Common Mistakes — Avoid Karo!
❌Generic post processor use karna
❌Machine simulation skip karna
❌Tool holder ignore karna
❌Long tools unnecessarily use
❌Wrong work offset
❌Rotary limits ignore karna
❌Controller-specific output verify na karna — yeh sab WinFusion implementation mein automatically avoid hote hain!
WinFusion — Advanced 5-Axis Complete Solution 🚀
WinFusion 5-axis implementation — tool library, proven post, machine simulation sab ek package. First program se hi machine productive!
✅Machine-Specific Post Processor
✅Complete Machine Simulation
✅Rotary Axis Optimization
✅Tool Library Setup
✅Collision Verification
✅NC Code Validation
✅Operator + Programmer Training
⚡First Program Se Productive!
Final Thoughts 🎯
Advanced 5-axis machining ka real benefit tab milta hai jab CAM strategy + proven post processor + machine simulation + expert implementation ek saath kaam kare.
