Real Case Study: CNC Cycle Time
20–25% Reduce Kaise Hua? ⏱️
Aerospace Part | 48 Min → 38 Min | Fusion Manufacturing + WinFusion
Aerospace component machining — 48 min se 38 min. Sirf CAM programming optimize karke 20-25% cycle time reduce. Machine same, tool same — sirf toolpath better!
Cycle time reduction ka direct impact production, machine utilization aur profit par padta hai. Kai companies naye tools ya machine upgrade karte hain — lekin sirf CAM programming optimize karke 10% se 40% tak cycle time reduce kiya ja sakta hai.
Is case study mein dekhte hain ki WinFusion aur Fusion Manufacturing ki help se aerospace component ka machining time kaise 48 min se 38 min aaya — bina machine change kiye!
📋 Customer Problem — Starting Point
Company Type:
Aerospace component manufacturer
Part Cycle Time:
48 minutes ❌
Problems Identified:
- Bahut zyada air cutting
- Tool unnecessary retract
- Linking moves unoptimized
- Feed optimization missing
- Tool library non-standard
- Machine simulation unused
Result of problems: Machine idle time ↑ | Production delay ↑ | Higher machining cost ↑
5-Step Optimization Process 🔧
S1
Toolpath Analysis—Pehle Samjho, Phir Fix Karo 🔍

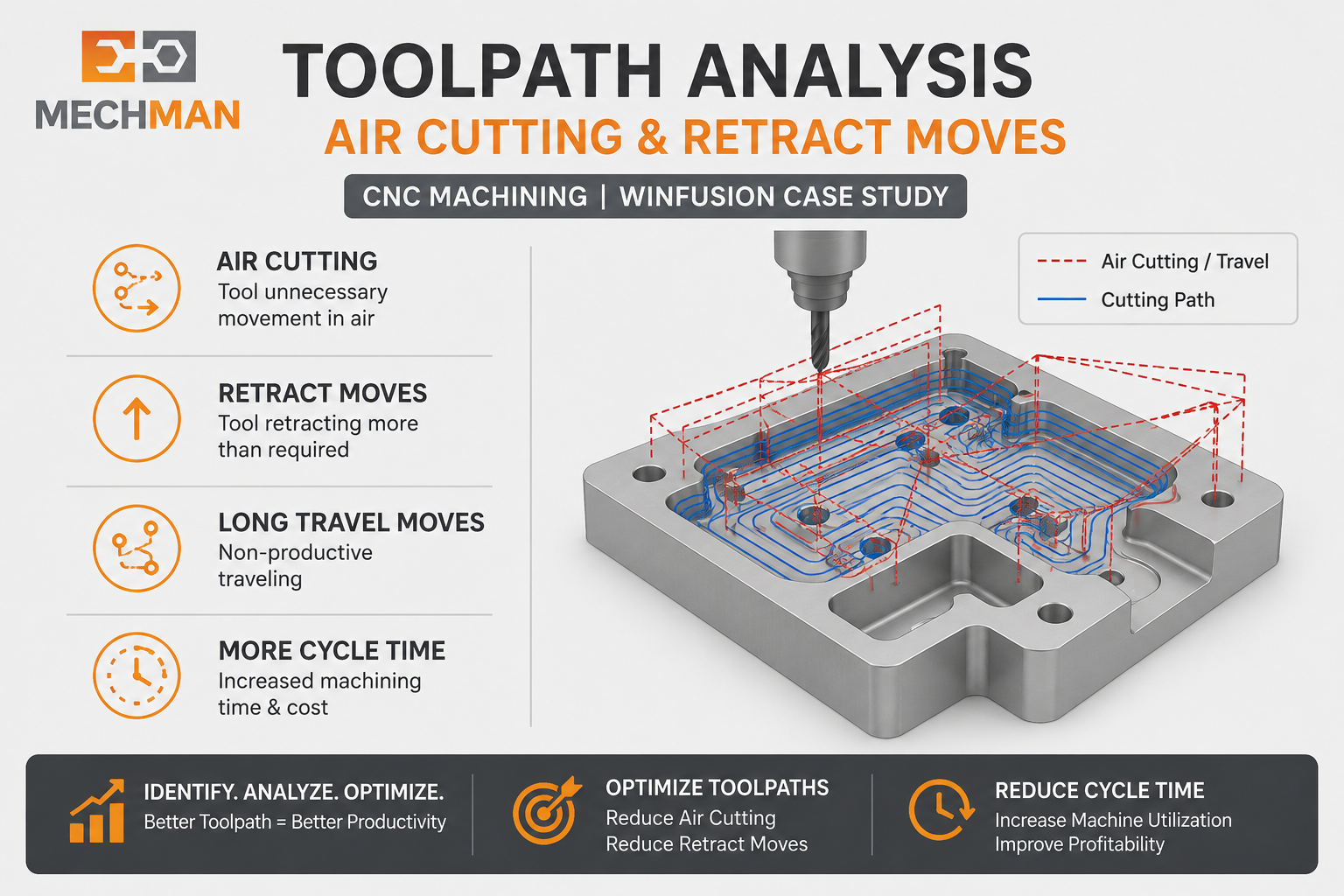

Sabse pehle existing NC program analyze kiya gaya—sirf analysis ke baad hi pata chala ki kitna improve ho sakta hai:
NC program analysis—air cutting, retract moves, linking, feed optimization sab measure karo. Jab problem dikh gayi tab fix karna easy tha.
📊Air cutting measured
📊Retract moves counted
📊Feed optimization gaps
S2
Adaptive Toolpaths — Game Changer! ⭐
Biggest Impact
Traditional pocket machining ki jagah Adaptive Clearing use kiya gaya:
❌ Traditional Pocket
- Variable tool load
- Frequent feed changes
- Higher tool stress
- More air cutting
✅ Adaptive Clearing
- Constant tool load ⭐
- Higher feedrate possible
- Better tool life
- Faster material removal
Adaptive strategy se roughing ka time significantly reduce ho gaya — yahi sabse bada saving tha! ✅
S3
Link Optimization — Sabse Common Mistake Fix ⚡
Ye sabse common mistake hoti hai — default CAM settings mein har pass ke baad tool unnecessary retract karta hai. WinFusion implementation mein:
✓Minimum Retraction
✓Smooth Linking moves
✓Keep Tool Down
⭐Clearance Cylinder
⭐Optimized Lead Moves — Machine ka idle movement bahut kam ho gaya!
S4

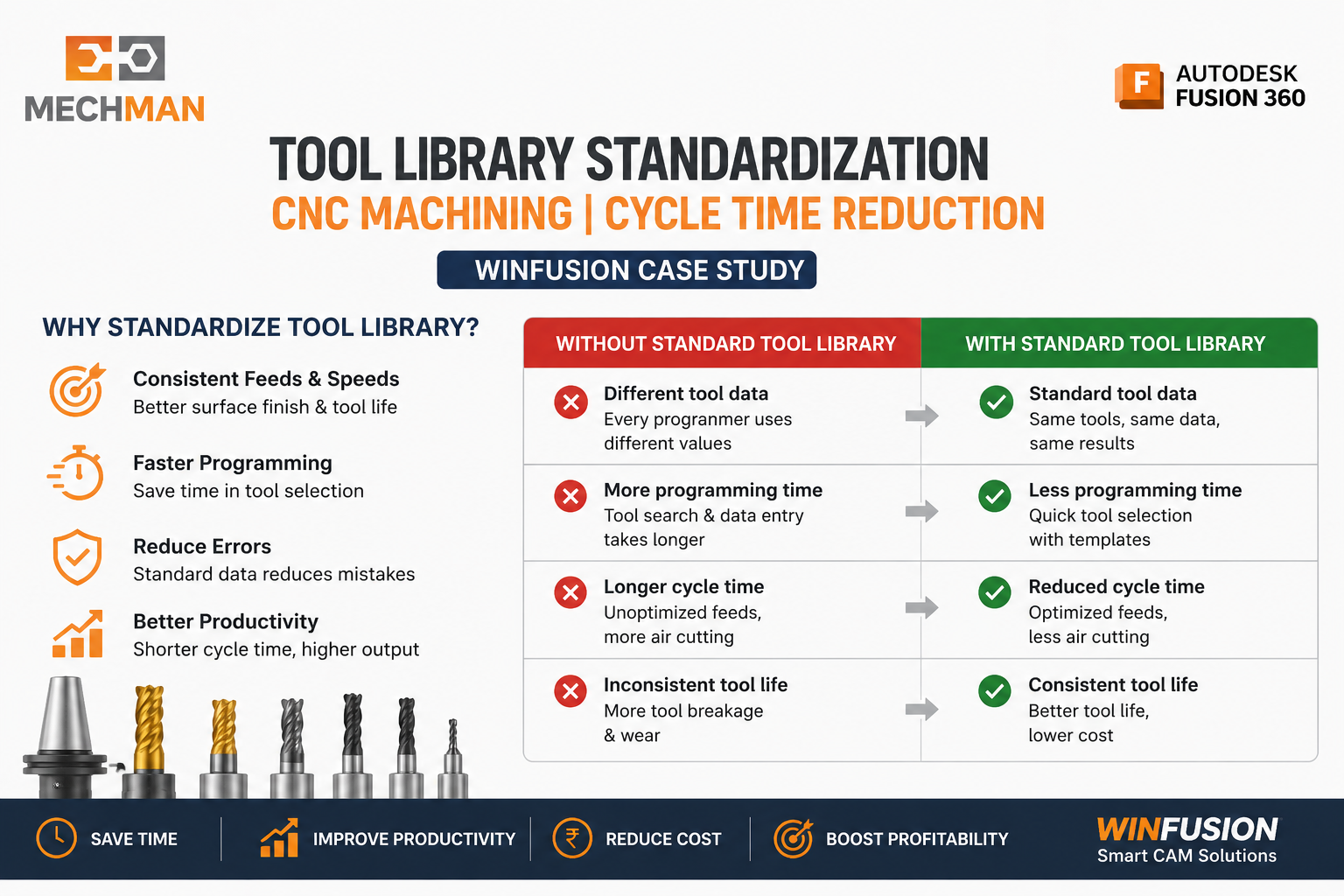

Tool Library Standardization 🔧
Har programmer alag feeds aur speeds use kar raha tha—WinFusion ne standard library create ki:
Standard tool library — har programmer same cutting parameters use karta hai. Consistent output, better tool life, faster programming.
✓Consistent programming
✓Faster CAM setup
✓Better tool life
✓Stable machining
S5

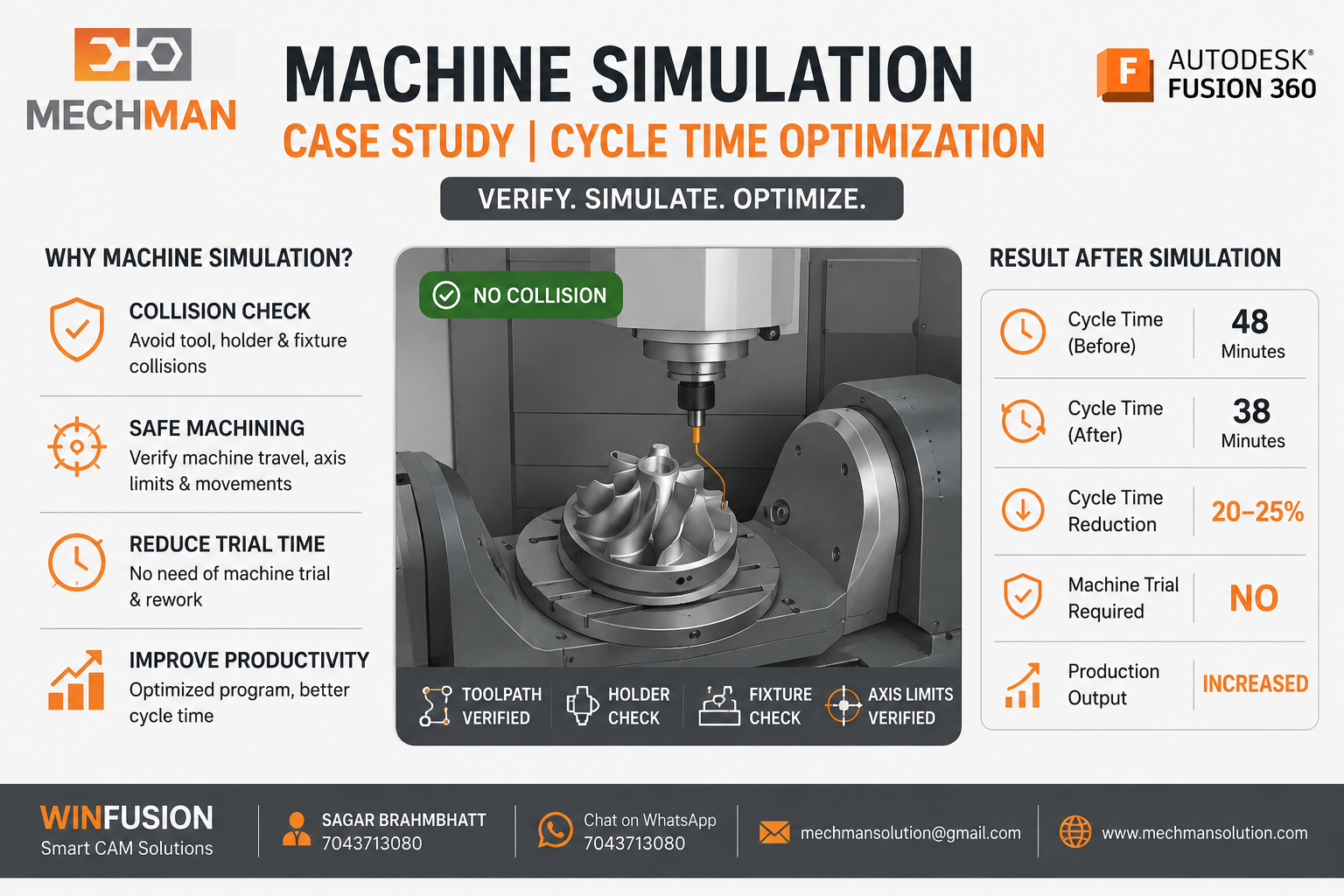

Machine Simulation — Before Run, Verify! 🖥️
Program directly chalane ke bajay pehle simulation—machine trial ka time bhi reduce hua:
Simulation — holder, fixture, machine travel, rotary limits sab verify. Machine par pahunchne se pehle program 100% safe tha.
Holder collision ✓
Fixture collision ✓
Machine travel ✓ ⭐
Rotary limits ✓
Safe retracts ✓ ⭐
📊 Final Results — Before vs After
| Parameter |
❌ Before |
✅ After |
| Cycle Time |
48 minutes |
38 minutes ⭐ |
| Air Cutting |
High |
Very Low ✅ |
| Tool Retracts |
High |
Optimized ✅ |
| Machine Idle Time |
High |
Reduced ✅ |
| Tool Life |
Normal |
Improved ✅ |
| Production Output |
Standard |
Increased ⭐ |
Overall Cycle Time Reduction: 20–25% 🏆
*Actual improvement depends on part geometry, tooling, machine configuration, and machining strategy.
⚡ Quick Tips — Cycle Time Reduce Karne Ke Liye
→Use Adaptive Toolpaths
→Optimize Linking Moves
→Reduce Air Cutting
→Standardize Tool Library
→Use Machine Simulation
⭐Keep Tool Down where possible
→Correct Stepdown & Stepover
⭐Proven Post Processor always!
WinFusion Approach — Aapki Machine Ke Liye 🚀
WinFusion sirf CAM software install nahi karta—complete production-ready implementation deta hai:
WinFusion — proven post + machine simulation + standard tool library + training. Aapki machine bhi aisi hi cycle time improvement achieve kar sakti hai!
✔Machine-Specific Postprocessor
✔Machine Simulation
✔Standard Tool Library
✔CAM Templates
✔Training + Implementation Support
⚡Proven NC — No Editing!
Case Study — Key Takeaways 🎯
Machine same thi — sirf CAM optimize hua. Aapki machine mein bhi yeh improvement possible hai! WinFusion se contact karo. ✅
⏱️
Cycle Time Reduce | Post Processor | Simulation | Implementation
