What is Adaptive Clearing?


🔥 Fusion CAM Deep Dive — WinFusion 2025

Adaptive Clearing Kya Hai?
Smart Roughing Strategy Explained! ⚡

Faster Material Removal | Constant Tool Load | Less Cycle Time | Better Tool Life

❌ Normal Pocketing

Variable tool load

⚡

UPGRADE

✅ Adaptive Clearing

Constant load ⭐

Adaptive Clearing — Fusion CAM ka smart roughing toolpath. Cutter engagement control karo, tool load constant rakho, material faster remove karo. Traditional pocketing se much better!

CNC machining mein roughing ka main goal hai: raw material quickly remove karna — lekin tool aur machine par unnecessary load nahi aana chahiye.

💡 Simple Language: Adaptive Clearing ek smart roughing toolpath hai jo cutter engagement ko control karke material ko faster aur more consistently remove karta hai.

⚙️ Adaptive Clearing Kaise Kaam Karta Hai?

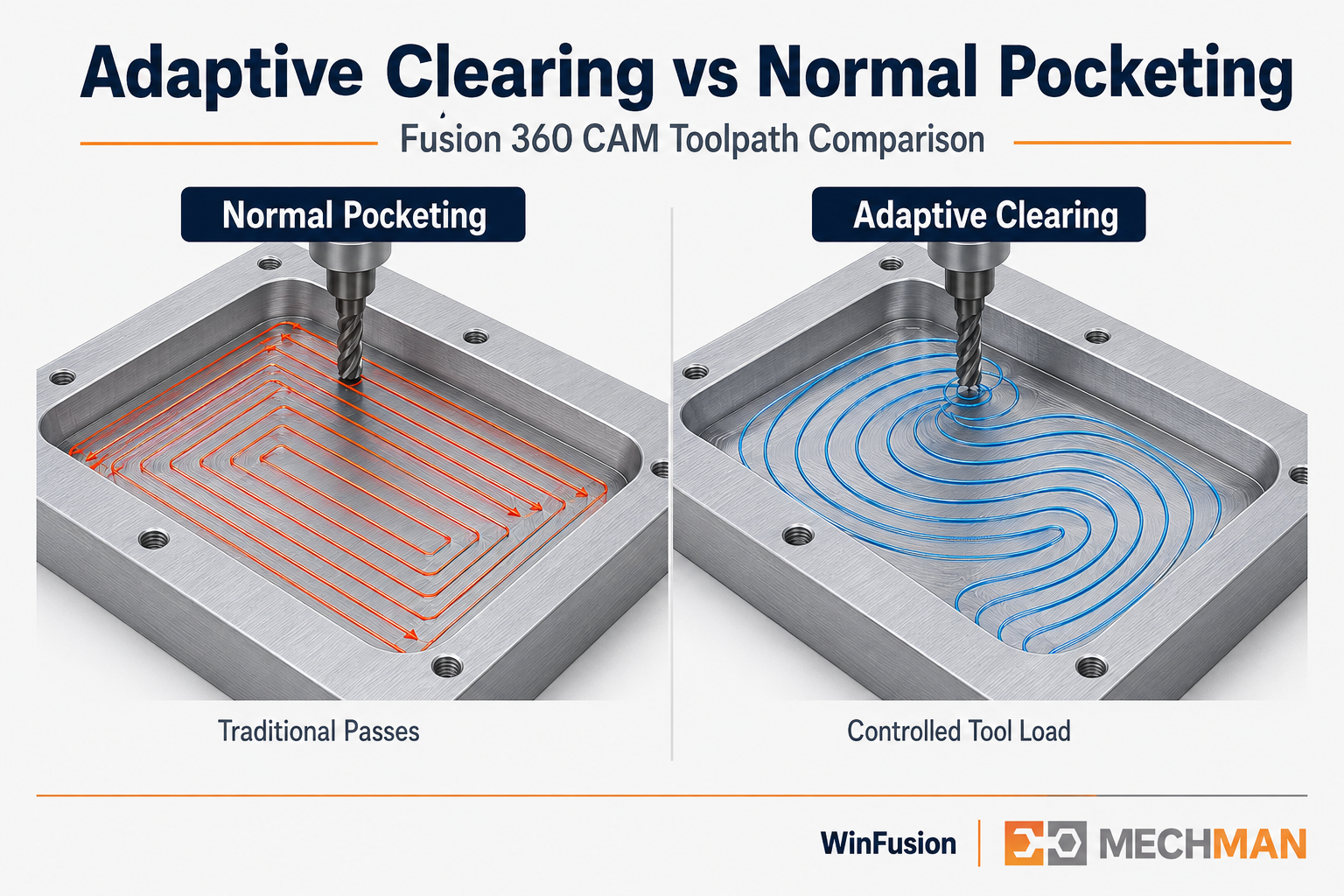

Normal Pocket vs Adaptive Clearing — Side by Side 🔥
Game Changer!

❌ Normal Pocket Toolpath:

  • Straight passes leta hai
  • Corner mein engagement suddenly ↑
  • Tool load variable hoti hai
  • Conservative parameters rakhne padte hain
  • Tool shock aur wear zyada

Result: Slower + tool stress + more wear

✅ Adaptive Clearing:

  • Continuously geometry recalculate
  • Cutter engagement controlled
  • Tool load consistent rehti hai
  • Aggressive depth possible ⭐
  • Tool shock minimum

Result: Faster + consistent + better tool life ✅

Adaptive Clearing toolpath — corner mein smooth arc entry, consistent tool load, longer flute engagement. Traditional pocketing se much smarter!

🎛️ Optimal Load — Sabse Important Parameter

Optimal Load = Maximum Cutter Engagement Control

Fusion automatically stepover vary karta hai taaki cutter par excessive load na aaye — ye Adaptive Clearing ka core intelligence hai:

📉

Open Area

Stepover increase — faster cutting

⚖️

Corner Area

Stepover reduce — load control

✅

Always ⭐

Consistent tool engagement

Autodesk documentation ke mutabik: Adaptive Clearing longer depth cuts enable kar sakta hai — kuch conditions mein up to 40% faster material removal possible! ✅

📦 Real CNC Example — Aluminium Deep Pocket

Material: Aluminium | Tool: Ø12mm Carbide | Job: Deep Cavity Roughing

Traditional Method:

  • Small stepdown
  • Larger conventional passes
  • Tool overloaded at corners
  • Slower cycle time

Adaptive

→

Adaptive Clearing:

  • Longer axial depth ⭐
  • Controlled radial engagement
  • Better flute utilization
  • Faster cycle time ⭐

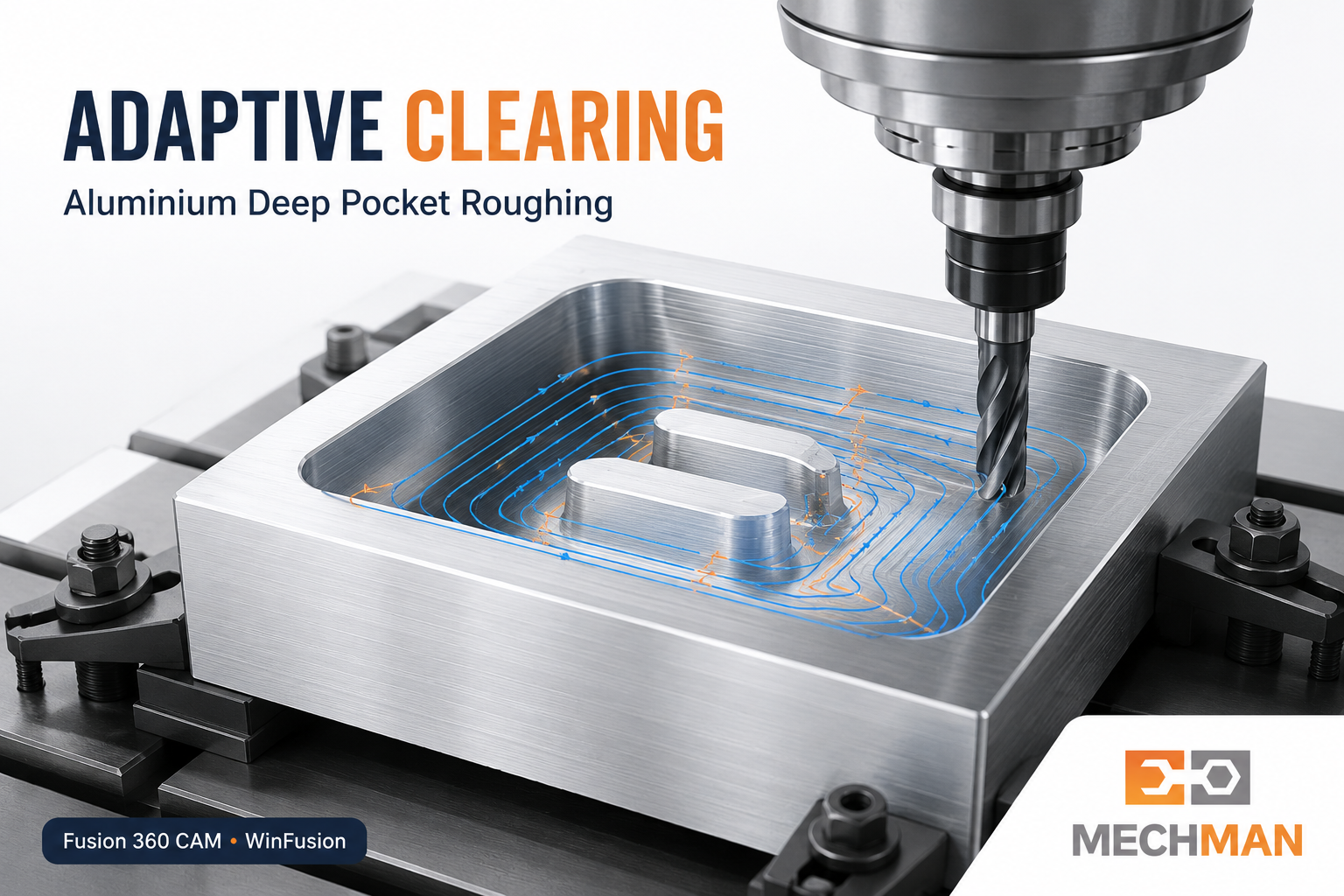

Aluminium deep pocket — Adaptive Clearing se longer axial depth + controlled radial = faster roughing + tool load consistent + less vibration.

⚠️ Exact feeds, speeds, optimal load aur stepdown — tool manufacturer’s recommendation, machine rigidity aur material ke according set karna zaroori hai. WinFusion implementation mein yahi optimize karte hain!

📊 Adaptive vs Normal Pocket — Feature Comparison

Feature ❌ Normal Pocket ✅ Adaptive Clearing
Tool Engagement Vary ho sakta hai More controlled ⭐
Corner Load Higher ho sakta hai Reduced ✅
Deep Roughing More conservative Aggressive depth ⭐
Toolpath Type Traditional Dynamic/Smart ⭐
Material Removal Standard High-efficiency ✅
Best Use Simple pockets Heavy/complex ⭐

🔄 2D Adaptive vs 3D Adaptive Clearing

2D Adaptive Clearing

Prismatic components, pockets aur straightforward geometry ke roughing ke liye:

  • Simple block to pocket roughing
  • Flat-bottomed pockets
  • Consistent Z-level clearing
  • VMC general work

Best for: Production + standard machining

3D Adaptive Clearing ⭐

More Powerful!

Complex 3D components, die-mold aur varying stock conditions ke liye:

  • Complex 3D geometry roughing ⭐
  • Die & Mold cavities
  • Varying stock conditions
  • Aerospace structural parts

Best for: Mold/die + 5-axis complex parts ✅

💡
Minimum Cutting Radius — Important Setting!

Sharp internal corner mein tool force kiya jaye → chatter aur load increase. Minimum Cutting Radius se Fusion corner mein smoother tool motion generate karta hai:

→Corner mein smooth arc motion
→Tool engagement spike avoid
→Remaining corner material
⭐Rest Machining se finish karo!

🎯 Adaptive Clearing Kab Use Karo?

✅Deep pocket roughing
✅Large material removal
✅Die & Mold machining
✅Complex 3D components
✅Aluminium + Steel roughing
✅Cycle time reduce karna ho
✅Tool life improve karna ho
⭐5-Axis complex roughing!

⚠️ Sirf Toolpath Banana Enough Nahi Hai!

CAM mein perfect Adaptive Clearing ≠ Machine par perfect output — Bridge chahiye!

Real production mein Adaptive Clearing ka full benefit lene ke liye:

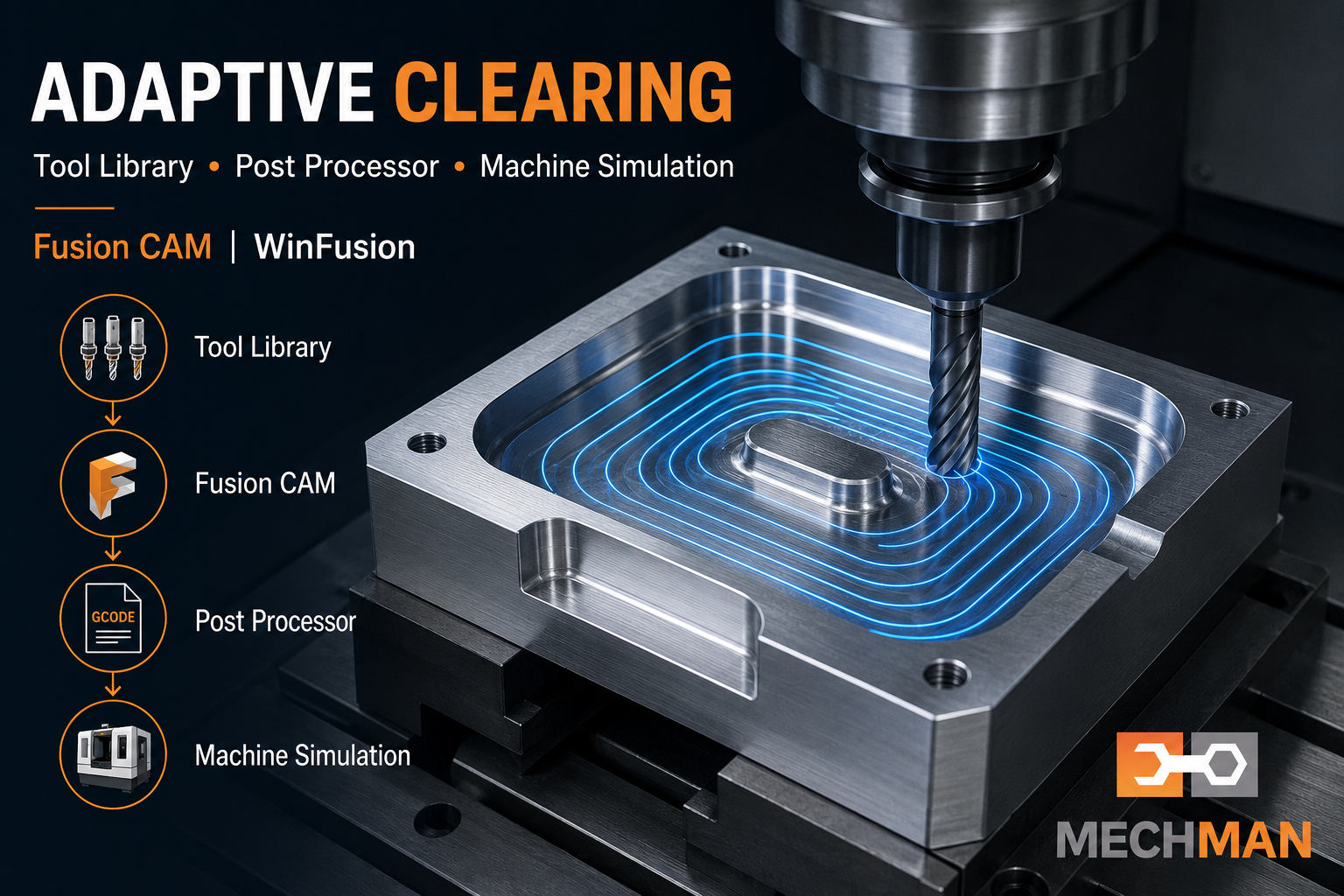

Tool library + cutting data + machine simulation + proven post = Adaptive Clearing ka real benefit shop floor par milta hai!
✓Correct Tool Library + Cutting Data
✓Machine Setup + Simulation
✓Proven Post Processor
⭐WinFusion yahi provide karta hai!

WinFusion—CAM Se Direct CNC Machine Tak 🚀

WinFusion — Fusion CAM implement karo + Adaptive Clearing set karo + proven post generate karo + machine par directly run karo. Minimum shop-floor editing goal!
✅Fusion CAM Implementation
✅Adaptive Clearing Training
✅Machine-Specific Post Processor
✅Machine Simulation Setup
✅3/4/5-Axis + Turn-Mill
✅Tool Library + Cutting Data
✅Online + Onsite Support
⚡Minimum Shop-Floor Editing!

Conclusion 🎯

Adaptive Clearing ek modern high-efficiency roughing strategy hai. Correct tool + Optimal Load + stepdown + feed/speed + machine setup ke saath ye traditional roughing se much better results deta hai.

Tool Life

Better ✅

Cycle Time

Faster ✅

Material Removal

Faster ✅

Adaptive Clearing + Proven Post + Machine Simulation = Real benefit shop floor par milta hai! WinFusion se contact karo. ✅

⚡
