⚡ HSM Strategy Guide — WinFusion 2025
High-Speed Machining Strategies —
WinFusion ke Saath Fast, Safe & Smart! ⚡
Adaptive Clearing | Smart Toolpath | Controlled Engagement | HSM Finishing | Proven Post
HSM ka Real Meaning:
+
+
=
Better Cycle + Tool Life ✅
HSM ka matlab sirf machine ka RPM ya feed high karna nahi — smart toolpath, controlled cutter engagement, optimized cutting parameters aur smooth machine motion se material efficiently remove karna hai! WinFusion yahi karta hai!
High-Speed Machining (HSM) ka matlab sirf machine ka feed ya RPM high kar dena nahi hota — HSM ka main objective hai smart toolpath, controlled cutter engagement, optimized cutting parameters aur smooth machine motion use karke material ko efficiently remove karna!
“Kam unnecessary movement + controlled cutting load + smooth toolpath = better cycle time, better tool life aur reliable machining!” ✅
WinFusion: Smart toolpath se machine ko fast, smooth aur safely productive banao — sirf fast chalana nahi! ✅
⚡ Traditional Roughing vs HSM — Kya Fark Hai?
Traditional method mein load fluctuate — HSM mein controlled engagement maintain!
❌ Traditional Roughing:
Load fluctuation = vibration + tool stress + poor finish!
✅ HSM with WinFusion:
Controlled load = better life + smooth cut + reliable!
🏆 WinFusion Mein 5 Key HSM Strategies
1
Adaptive Clearing — HSM Roughing Ka King! ⭐
Deep pockets, cavities, mould & die — consistent cutting conditions!
Adaptive Clearing = consistent cutting engagement. Tool corner mein bhi unnecessary heavy load nahi ata. Deep pockets, mould & die roughing ke liye most powerful HSM strategy!
→Deep pockets/cavities ⭐
→Mould & die machining
→Heavy material removal ⭐
⭐Higher depth possible!
2
Optimized Stepdown & Stepover — HSM Parameter Balance! ⭐
Sirf feed increase karna HSM nahi hai — correct parameters ka proper combination important hai!
Tool Diameter ⭐
Size-specific parameters
Material Type
Aluminium vs Steel vs SS
Machine Cap ⭐
Spindle + rigidity
Correct balance = MRR improve + Cutter load control + Tool life improve + Cycle time reduce! ✅
3
Smooth Entry & Exit — Gradual Load = Tool Protection! ⭐
❌ Aggressive Entry:
- Sudden full cutting load
- Tool shock load
- Machine vibration
- Tool damage risk ⚠️
✅ HSM Smooth Entry:
- Ramp / Helix entry ⭐
- Gradual load increase
- Smooth machine motion
- Tool life better ✅
Lead-In + Ramp + Helix = Smooth HSM workflow ka important part! ✅
Previous op mein remaining material target karo!
Large tool roughing → Corner/cavity remaining
Smaller tool → Only remaining area machine ⭐
- Air cutting eliminate ⭐
- Cycle time optimize
- Mould & die — critical!
Complex components mein essential! ✅
HSM sirf roughing nahi — finishing bhi HSM approach se!
Parallel ⭐
Scallop
Contour ⭐
3D Surface
Component geometry ke according select karo → smooth tool movement → required surface finish!
HSM finishing = Better Ra + Less polishing! ✅
⚙️ 3-Axis se 5-Axis HSM — WinFusion Complete!
WinFusion HSM — 3-Axis se 5-Axis tak complete support!
5-Axis HSM mein sirf toolpath nahi — machine simulation critical hai! Tool, holder, fixture aur machine-component interference virtually check karo production se pehle!
3-Axis HSM ✅
Milling, pockets, profiles
3+2 HSM ⭐
Multi-face, fewer setups
5-Axis HSM ⭐⭐
Complex surfaces!
5-Axis ka major advantage: correct tool orientation se difficult areas access + unnecessary multiple setups reduce! Lekin Machine Simulation mandatory hai! ✅
⚙️ Proven Post Processor — HSM Workflow Complete Hota Hai Isse!
Perfect HSM toolpath — lekin NC code machine ke according wrong hai to?
Critical!

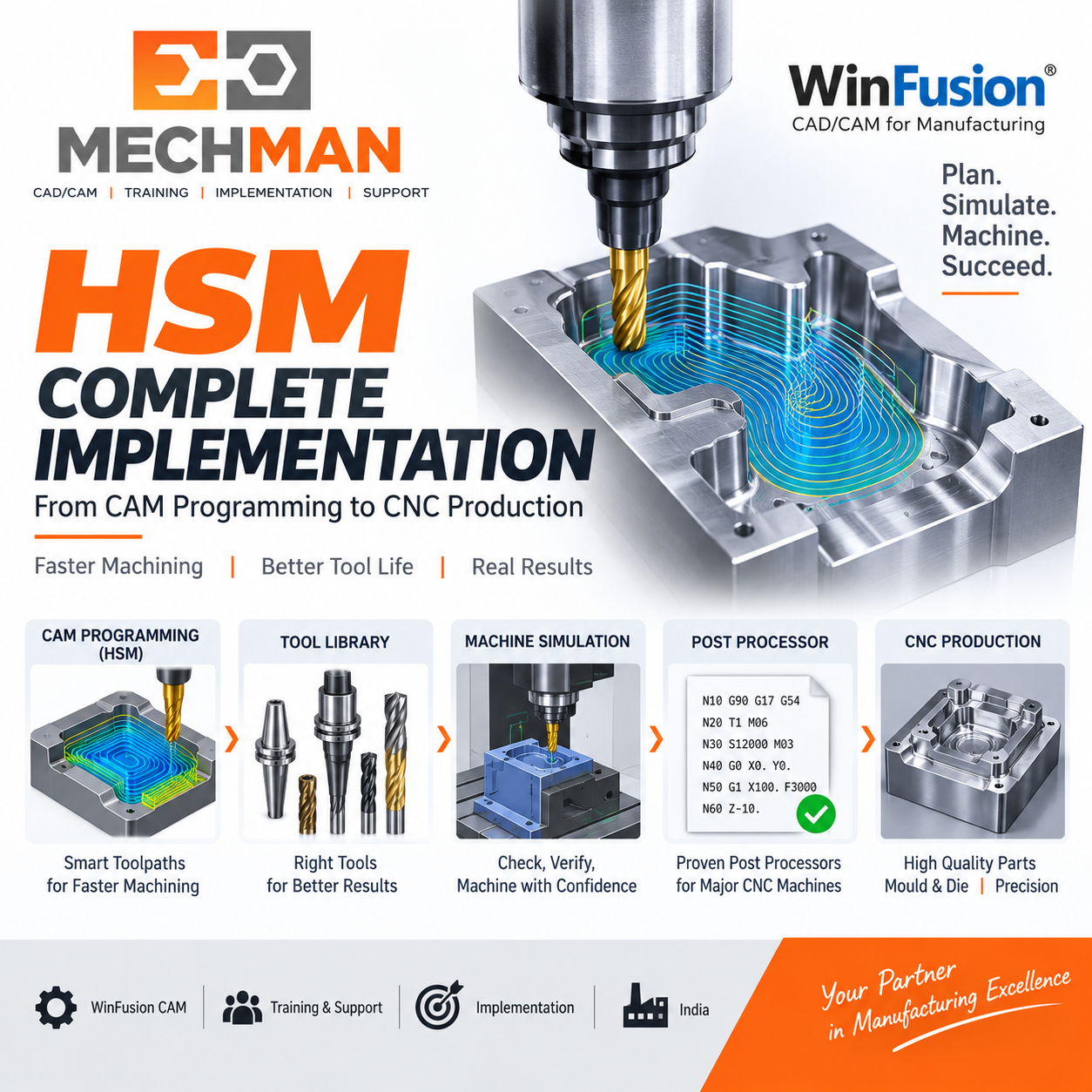

CAM Programming ⭐
→
Tool Library
→
Cutting Params ⭐
→
Machine Simulation
→
Proven Post ⭐⭐
→
NC → CNC ✅
WinFusion: CAM Programming → Proven Post → NC Code → Machine. Programmer ko machine par unnecessary manual NC editing minimum karni pade aur implementation fast ho!
🏆 HSM ke Practical Benefits — Who Benefits Most?
HSM Se Kya Milta Hai:
✅Cycle time reduction ⭐
✅Improved tool utilization
✅Smoother machine motion ⭐
✅Better surface quality
⭐More consistent machining!
Who Benefits Most:
→Mould & Die Manufacturing ⭐
→Aerospace Components
→Automotive Components ⭐
→Precision Engineering
→Complex CNC Components ⭐
⭐Any valuable machine time!
WinFusion + Mechman Solution = HSM ka Complete Package!
✅CAM Software ⭐
✅Toolpath Training
✅Proven Post Processor ⭐
✅Machine Simulation
✅CNC Implementation ⭐
⚡Technical Support!
