Indexed vs Simultaneous 5-Axis


⚙️ 5-Axis Guide — WinFusion 2025

Indexed vs Simultaneous 5-Axis —
WinFusion Mein Kaunsa Aur Kab? ⚙️

3+2 Indexed | Continuous 5-Axis | Machine Simulation | Proven Post | Complete Implementation

3+2 Indexed ⭐

Rotate → Lock

Then machine

Angle FIXED! ✅

VS

Simultaneous ⭐

All 5 axes move

Continuously!

Angle DYNAMIC! ⭐

WinFusion dono type ki 5-axis machining support karta hai: Indexed 3+2 (angle set karo phir machine karo) aur Simultaneous 5-Axis (machining ke saath angle continuously change karo). Kaunsa kab use karna chahiye — aaj samjho!

Customer ko sirf “5-axis software” nahi chahiye — use samajhna chahiye ki kis job mein 3+2 Indexed machining use karna hai aur kis job mein Continuous Simultaneous 5-Axis chahiye! WinFusion dono ka complete workflow + proven post + simulation support karta hai!

“Indexed 5-Axis = angle set karo, phir machine karo. Simultaneous 5-Axis = machining ke saath angle continuously change karo!” ✅

WinFusion focus: Sirf toolpath banana nahi — Proven Post Processor + Machine Simulation ke saath program ko CNC machine tak successfully implement karna! ✅

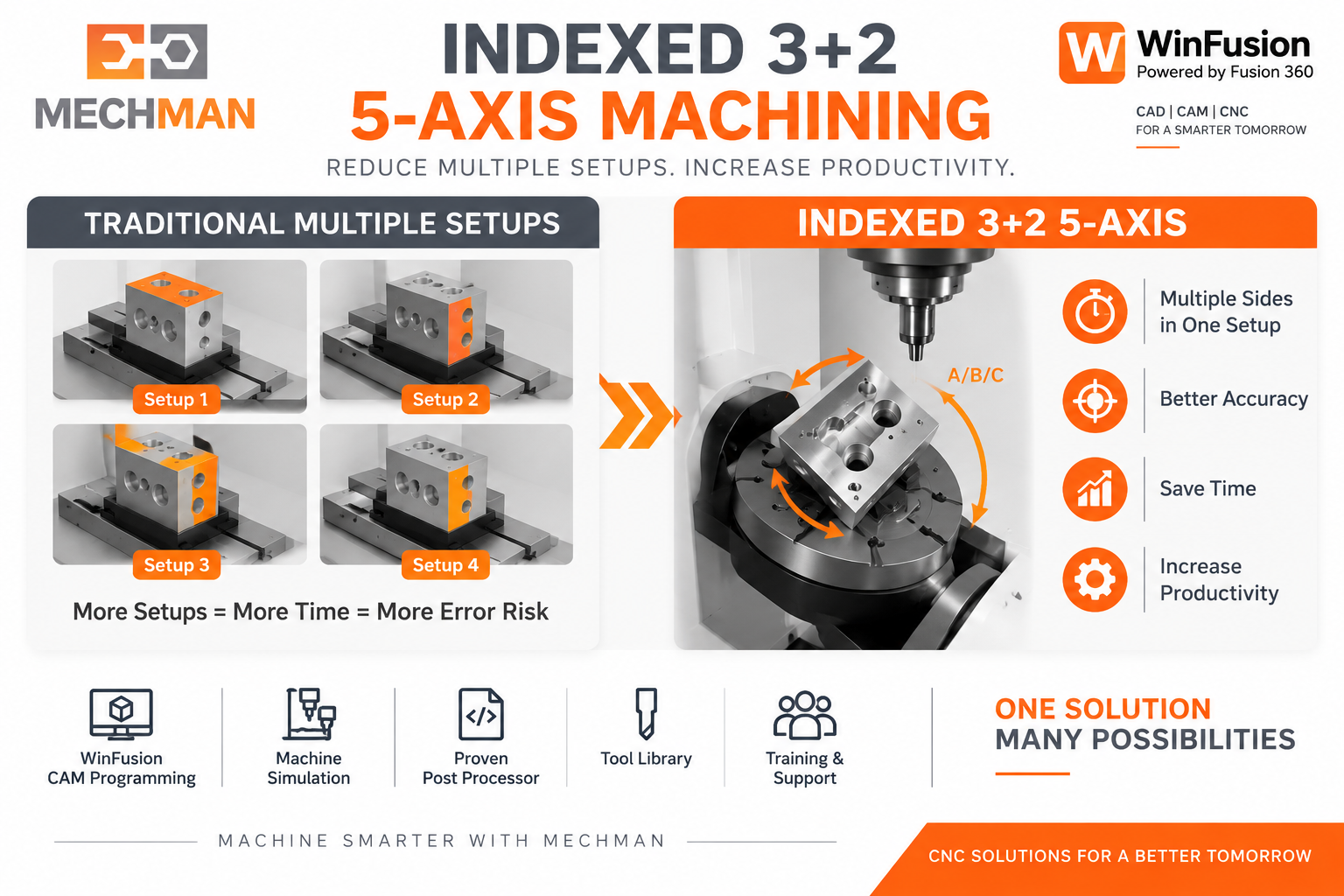

🔴 Indexed 5-Axis (3+2) — Rotate, Lock, Then Machine!

3+2 Indexed ka simple concept — Rotate → Position → Machine → Repeat!

3+2 Indexed: Machine rotary axes pehle component ko required angle par position karte hain → axis lock/position hoti hai → phir XYZ se normal machining hoti hai. Multiple sides ek setup mein machine possible!

Rotate ⭐

A/B/C axis

→

Position

Required angle

→

Machine ⭐

XYZ 3-axis

→

Next Side

Rotate again

→

Complete ✅

1 setup done!

✓

Multiple Setups Reduce ⭐

Operator re-clamping nahi

✓

Better Accuracy ⭐

Datum maintain hota hai

✓

3-Axis Programmer Learn Easy

XYZ programming same

⭐

Lower post complexity! ✅

Best for: Multiple angled holes, pockets, features on different faces — 1 setup mein! ✅

🔵 Simultaneous 5-Axis — Continuously Moving All Axes!

Simultaneous = Machining ke dauran 5 axes sab continuously coordinate kar sakte hain!

Simultaneous 5-Axis mein CAM system continuously calculate karta hai: Tool position + tool orientation + lead/lean angle + holder clearance + machine movement + collision avoidance — sab ek saath! Complex curved surfaces ke liye mandatory!

Simultaneous 5-Axis mein CAM continuously calculate karta hai:

Tool Position ⭐

Orientation ⭐

Lead/Lean Angle

Holder Clear ⭐

Machine Move

Collision Avoid ✅

✓Impeller / Turbine Blade ⭐
✓Aerospace Components ⭐
✓Complex Mould/Die Surface
✓Deep Cavity + Undercut ⭐
✓Port Machining
⭐Swarf Machining! ✅

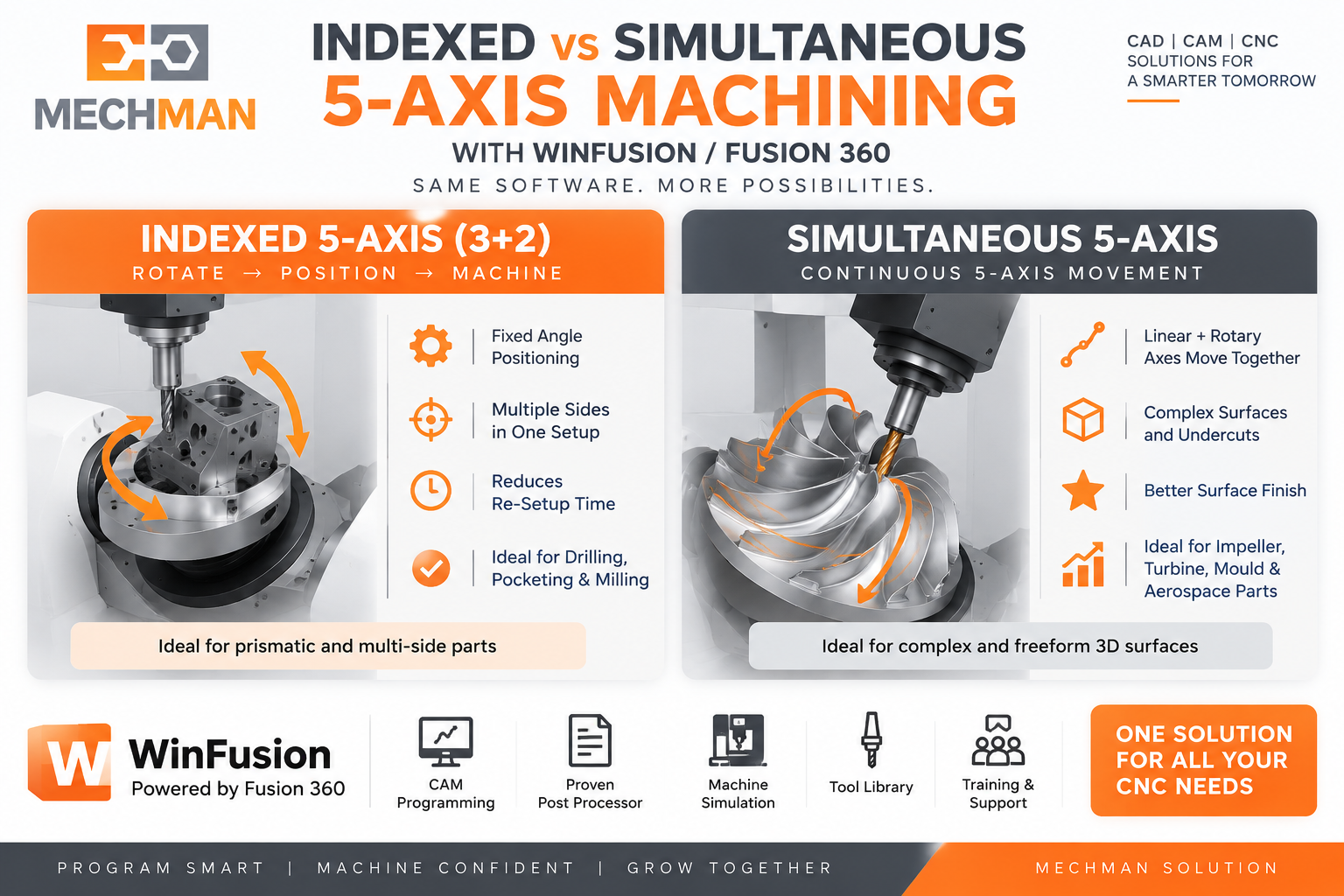

📊 Indexed vs Simultaneous — Head-to-Head Comparison

Parameter 3+2 Indexed Simultaneous 5-Axis
Rotary Axes During Cut Fixed/Locked Continuously Moving ⭐
Programming Complexity Moderate ✅ High ⭐
Post Processor Need Standard ✅ Proven Critical ⭐⭐
Machine Simulation Helpful ✅ Mandatory ⭐⭐
Curved Surfaces Limited ⚠️ Excellent ⭐
Best For Multi-face features ⭐ Blade/Port/Complex ⭐
WinFusion Support Full Support ✅ Full Support ✅

Kaunsa Choose Karo? — Simple Decision Rule!

Use 3+2 Indexed When: ⭐

  • Multiple angled holes/pockets ⭐
  • Different face features needed
  • Fewer setups goal
  • 3-axis programmer team
  • Standard components ✅

Use Simultaneous When: ⭐

  • Curved/twisted surfaces ⭐
  • Blade/impeller machining
  • Deep cavity undercuts
  • Port/Swarf machining
  • Complex 3D geometry ✅

⚙️ Proven Post + Simulation — Dono Type Ke Liye Critical!

“Meri machine ke liye proven post aur simulation ready hai ya nahi?” — Ye asli sawaal hai!
Key Question!

WinFusion: CAD Model → 3+2/Simultaneous CAM Toolpath → Machine Simulation → Proven Post Processor → NC Program → CNC Machine. Machine kharidne ke baad post idle nahi rehni chahiye — proven post ready hona chahiye!

3+2 Post Requirements:

  • Correct G-code output ⭐
  • Rotary positioning syntax
  • Safe retract sequence
  • Machine-specific format ✅

Simultaneous Post Requirements:

  • RTCP/TCP handling ⭐⭐
  • Rotary axis output format
  • Tool axis direction ⭐
  • Smooth motion output ✅

WinFusion: Indexed ho ya Simultaneous — Proven Post + Machine Simulation + Implementation Support = Production Ready! ✅

Customer Ko Real Value — Software Price Se Zyada Important!

❌ Sirf Software Price Compare:

  • Post develop karo ⚠️
  • Prove-out: days/weeks
  • Machine idle reh sakti hai
  • Production delay possible ⚠️

VS

✅ WinFusion Complete Solution:

  • Proven Post Ready ⭐
  • Machine Simulation ⭐
  • Implementation support
  • Production Fast Start! ✅

WinFusion — Indexed aur Simultaneous Dono Ka Master! ⚙️

3+2 Indexed ho ya Continuous Simultaneous — WinFusion ka focus sirf toolpath banana nahi! Proven Post Processor + Machine Simulation ke saath program ko CNC machine tak successfully implement karna hai!

3+2 Indexed

🔴 Multiple Faces!

Simultaneous

🔵 Complex Curves!

WinFusion

⚙️ Both Done!

Indexed + Simultaneous + Proven Post + Machine Simulation = Production-Ready 5-Axis Success! ⚙️🚀

⚙️
