♻️ Rest Finishing Guide — WinFusion 2025
Rest Finishing — WinFusion Mein
Remaining Material Ka Smart Solution! ♻️
Previous Op Awareness | Smaller Tool | Corners & Deep Areas | Mould Die | Cycle Optimize
Roughing ⭐
Ø16 — fast removal
→
Remaining
Corners + deep areas
→
Rest Finish ⭐
Ø6 — target only!
Rest Finishing — previous operation ke baad jo material remaining hai usse specifically target karna. Especially mould, die, complex 3D components mein corners aur deep areas ke liye. Air cutting eliminate, cycle time optimize!
Jab roughing ya semi-finishing operations complete ho jaate hain, toh large tool cutter ki limitations ki wajah se corners mein, deep pockets mein aur narrow areas mein material remaining reh jaata hai. Ise hata ne ke liye smaller tool se Rest Finishing (Rest Machining) toolpath use karte hain!
“Rest Finishing ka simple meaning: Pehle wale operation ne jo material nahi hata paya — use specifically target karke clean karo!” ✅
WinFusion mein: Previous operation ke reference se actual remaining material identify karo → Small tool se only wo area machine karo → Air cutting eliminate! ✅

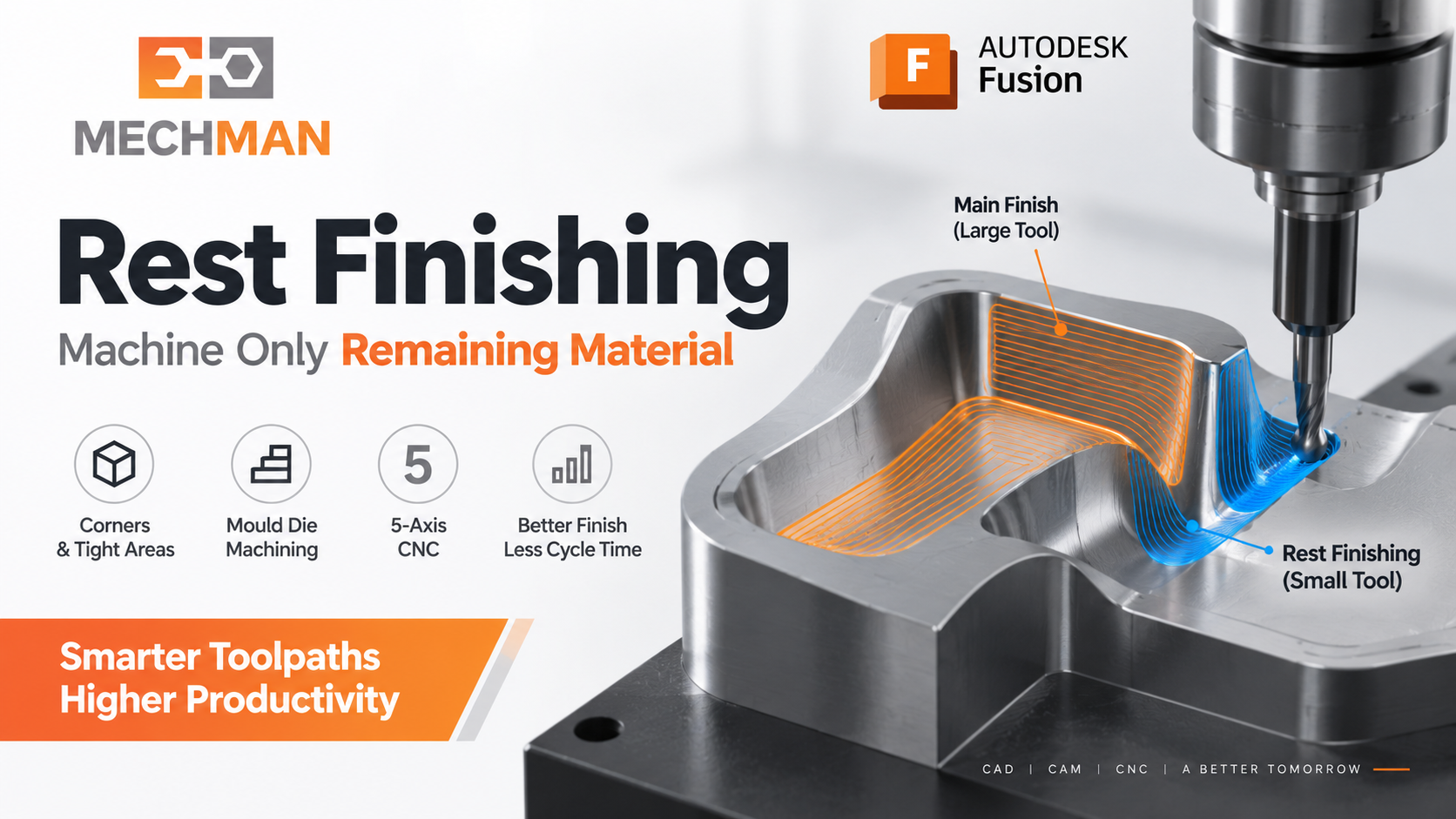

♻️ Rest Finishing Kya Hai?
Previous large tool ke baad remaining material ko smaller tool se accurately machine karna = Rest Finishing!
❌ Without Rest Machining:
- Corners mein material
- Deep areas unclean
- Manual polishing ⚠️
- Poor quality finish
✅ With Rest Finishing:
- Targeted cleaning ⭐
- All areas covered
- Less manual work ✅
- Better quality finish!
Rest Finishing = Air cutting virtually zero + Only real remaining material machine hoga! ✅

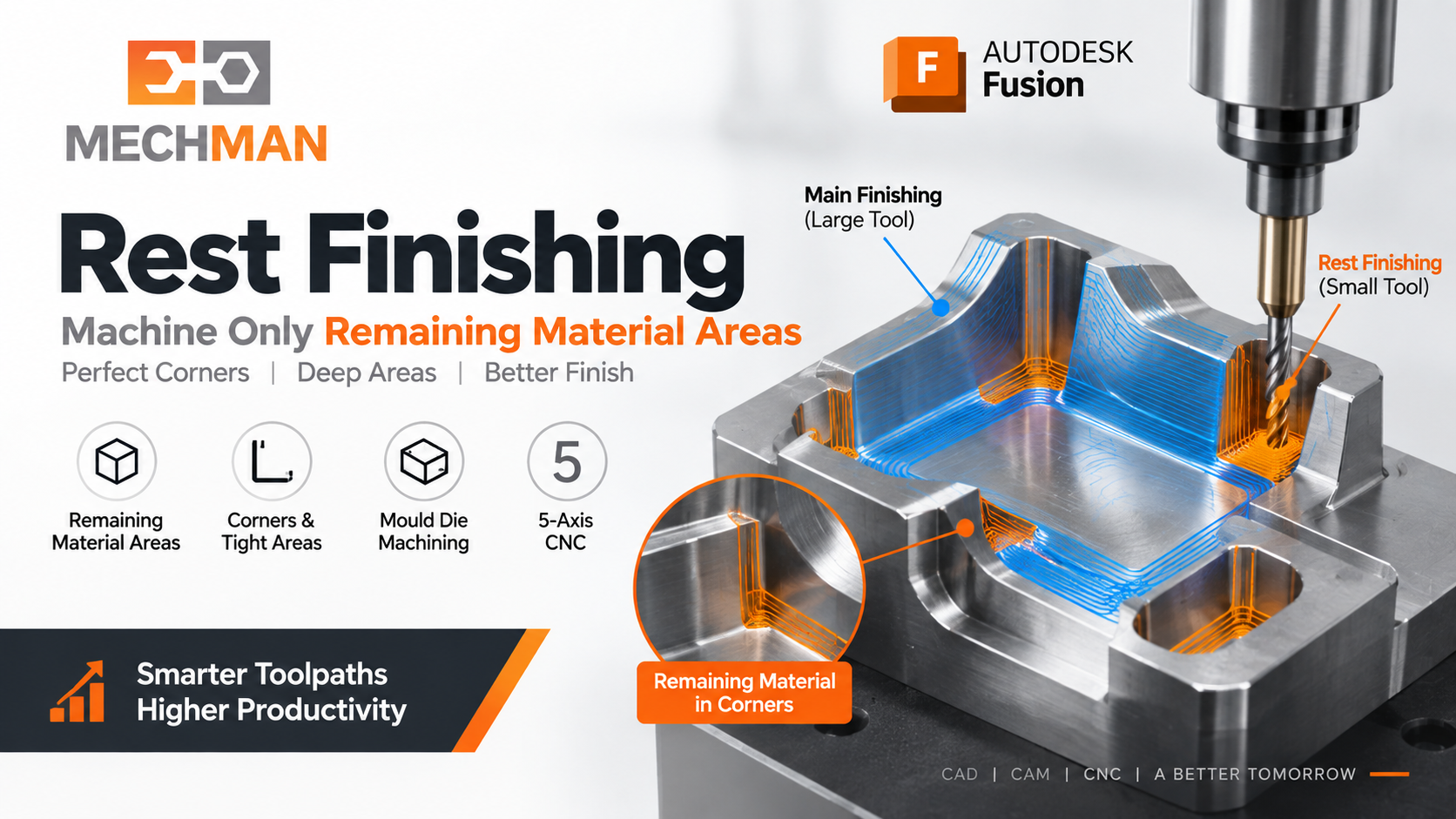

📍 Remaining Material Kahan Hoti Hai?
Large tool ke baad ye specific areas mein material remaining rehta hai — Rest Finishing exactly yahin target karta hai!
Large roughing tool ke baad — inner corners, deep recesses, narrow slots aur tight radii mein material remaining rehta hai. WinFusion Rest Finishing ise previous operation reference se accurately identify karta hai!
→
Inner Corners ⭐
Large tool corner radius se bigger
→
Deep Recesses ⭐
Short flute length couldn’t reach
→
Narrow Slots
Too narrow for large tool
→
Tight Radii ⭐
Smaller radius than tool
→
Step Transitions
Level changes areas
⭐
WinFusion sab detect karta hai!
Previous op reference use karo ✅
⚙️ WinFusion Mein Rest Finishing Kaise Setup Karte Hain?
3 Reference Methods — WinFusion Rest Finishing Setup:
1
From Previous Operation ⭐ — Most Accurate!
WinFusion directly pehle ki operation ka reference leta hai — remaining stock exactly pata rehta hai! Rest Finishing toolpath sirf un areas par jayega jahan actual material hai!
Best method for Die-Mould, Aerospace, Complex 3D jobs! ✅
2
From Tool Size ⭐ — Quick Setup!
Previous operation mein use hue tool ki diameter enter karo — CAM software calculate karega ki is diameter se kitna aur kahan remaining material hoga!
Fast setup when exact previous op data unavailable! ✅
3
From Stock ⭐ — Full Rest Calculation!
Original stock se remaining material calculate karo — entire machining history consider hota hai!
Multi-operation complex jobs ke liye best! ✅
🔩 Tool Sequence — Correct Order Follow Karo!
Rest Finishing ka correct machining sequence — gradually smaller tools use karo:
Ø16 EM
Step 1: Main Roughing ⭐
Maximum material fast remove — Adaptive Clearing
Heavy Cut
Ø10 BN
Step 2: Semi-Finishing / Rest Roughing
Medium areas cleanup — after Ø16
Medium
Ø6 BN ⭐
Step 3: Rest Finishing — Corner + Deep Areas!
Only remaining material from Ø10 — targeted cleaning ⭐
Rest! ✅
Ø3 BN ⭐
Step 4: Fine Rest Finishing — Tight Corners!
Only remaining material from Ø6 — final detailed cleaning ⭐
Fine! ✅
Each step mein: Only previous tool se jo material remaining tha wahi machine hoga — air cutting virtually zero! ✅
⚙️

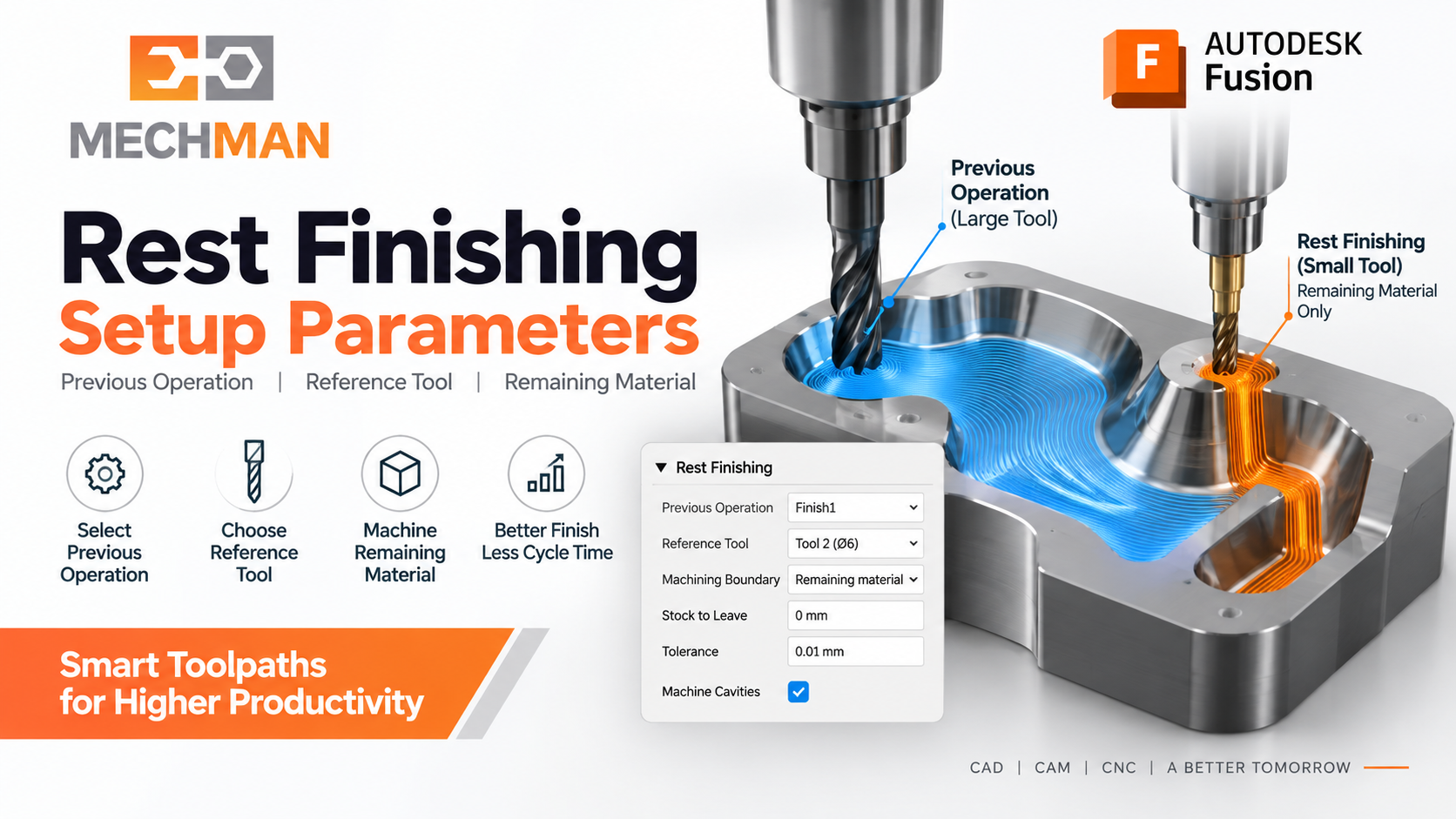

Rest Finishing Setup — Key Parameters!
Correct setup = Accurate rest area detection + Clean machining!
Rest Finishing mein: Previous operation reference + Correct small tool + Stock to leave — ye sab properly set karo. Tool collision aur holder clearance bhi verify karo simulation mein!
✓Previous Op Reference ⭐
✓Correct Small Tool ⭐
✓Stock to Leave
✓Stepover / Stepdown
✓Lead-In / Lead-Out ⭐
⭐Simulation verify! ✅
🏭 Rest Finishing Kahan Sabse Zaroori Hai?
🔧 Die & Mould Industries:
Die-mould mein Rest Finishing critical hai kyunki:
- Complex 3D cavities + cores ⭐
- Multiple corners/radii
- High accuracy required
- Less manual polishing = better ✅
Manual finishing cost save! ✅
✈️ Aerospace + Precision:
Complex geometry + tight tolerance:
- Thin wall + undercuts ⭐
- Multiple depth levels
- Tight dimensional accuracy
- Surface quality critical ✅
Accurate rest detection essential! ✅
Simulation + Proven Post = Rest Finishing Ka Complete Solution!
Always Verify!
Machine Simulation Checks:
- Small tool holder clearance ⭐
- Deep area reachability
- Remaining stock verify
- Collision check ✅
WinFusion Proven Post:
- Machine-specific NC ⭐
- Min manual editing
- Controller compatible
- Production ready ✅
WinFusion: Rest Finishing toolpath → Simulation verify → Proven Post → NC Code → Machine par confident production start! ✅

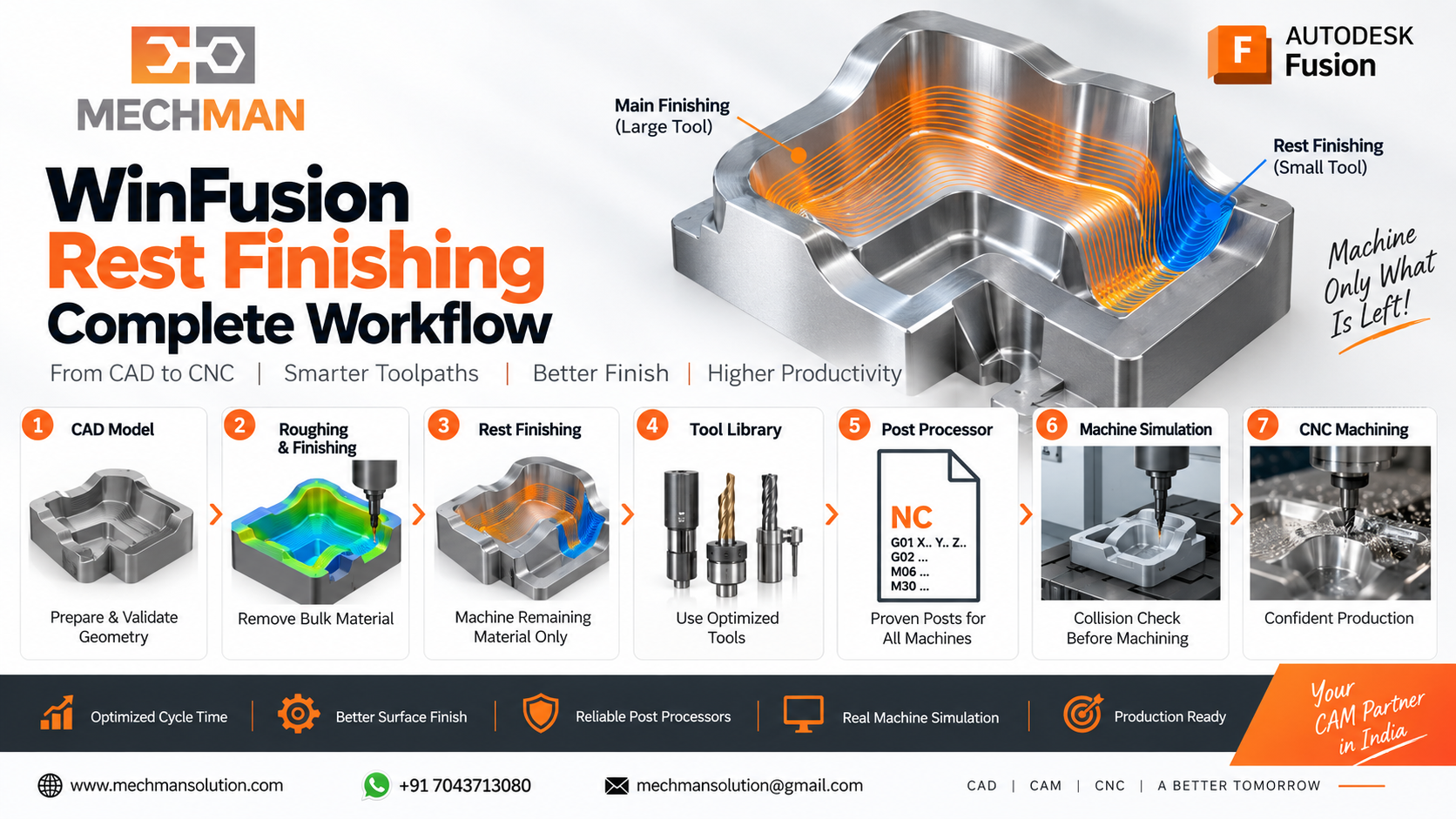

WinFusion — Complete Rest Finishing Workflow 🚀
WinFusion: Roughing → Rest Roughing → Rest Finishing → Fine Rest → Simulation → Proven Post → Production. Har step previous operation ka reference use karta hai — intelligent aur efficient machining!
♻️ Rest Finishing Ke Major Benefits:
✅Air Cutting Eliminate ⭐
✅Better Surface Quality
✅Reduced Manual Polishing ⭐
✅Tool Life Improve
✅Cycle Time Optimize ⭐
♻️Intelligent Machining!
Rest Finishing — Yahi Hai Smart CNC Programming! ♻️
Pehle bade tool se maximum material remove karo — phir smaller tool se specifically remaining areas target karo! Ye approach air cutting virtually eliminate karta hai aur tool life improve karta hai!
Air Cutting
♻️ Eliminate!
Surface Quality
✨ Better!
WinFusion: Roughing → Rest Roughing → Rest Finishing → Fine Rest = Intelligent Machining Sequence! ♻️🚀
♻️
