Rest Machining Deep Dive 2025
Rest Machining Kya Hota Hai?
Complete Expert Guide ⚙️
Remaining Stock | Small Tool | Deep Corners | Better Finish — Sab Explained

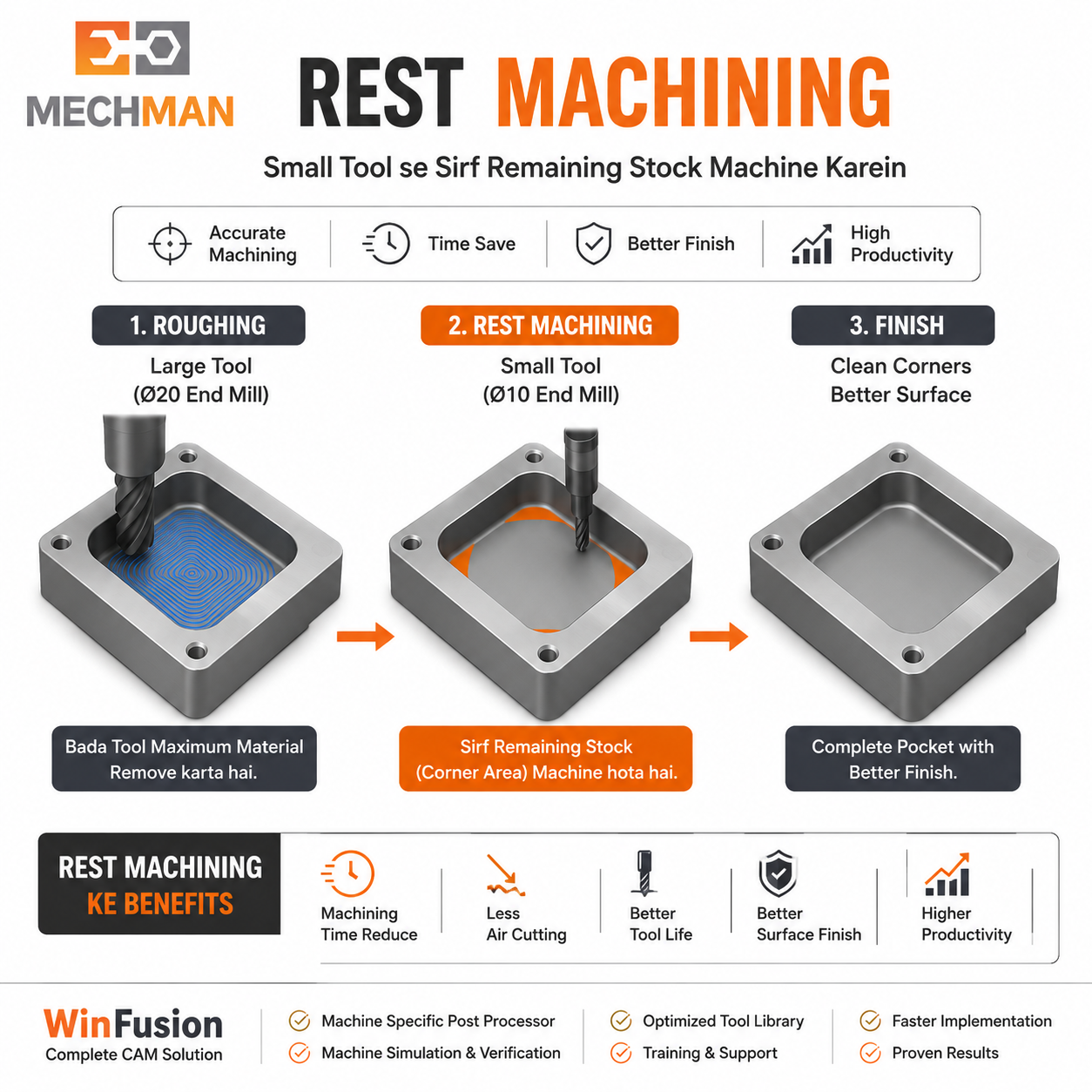

Rest machining ka concept: pehle bade tool se material hatao, phir chote tool se sirf wahi stock remove karo jo reh gayi hai — air cutting minimum, tool life maximum.
CNC machining mein ek common situation hoti hai — roughing ke baad part mein kuch areas mein stock reh jaati hai jahan bada tool pahunch hi nahi paata. Ye hote hain deep corners, narrow pockets, fillets aur complex surfaces.
Agar aap in areas ko direct finish karne ki koshish karo — small tool unexpected material se milta hai aur break ho sakta hai! Yahan Rest Machining kaam aata hai.
Rest Machining = Smart CAM system jo track karta hai ki pehle tool ne exactly kahan kahan material remove kiya, aur next tool ko sirf remaining stock par bhejta hai. No air cutting, no unexpected contact!

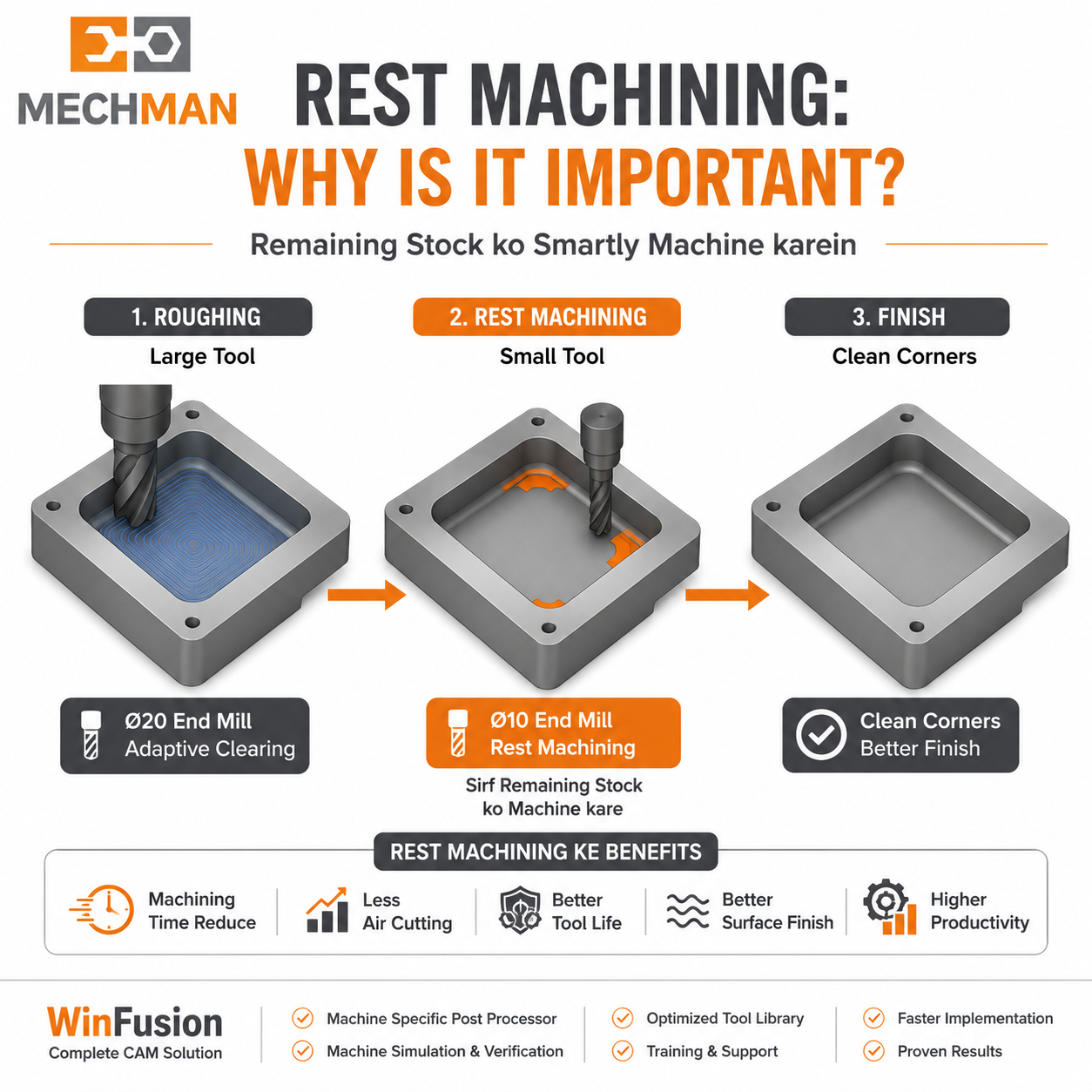

⚠️ Rest Machining Kyu Zaruri Hai?
Agar aap rest machining use nahi karte aur seedha small tool se program karte ho:
✗Small tool aur full material se milta hai
✗Unexpected overload — tool break!
✗Program time zyada
✗Air cutting zyada
✗Surface finish poor
✗Component damaged
Result: Expensive tool break + damaged component + cycle time waste. Small tool break = stop production!
Rest machining — pehle kya stock reh gayi yeh track karo, phir chota tool sirf wahan bhejo. Air cutting minimum, tool safe!

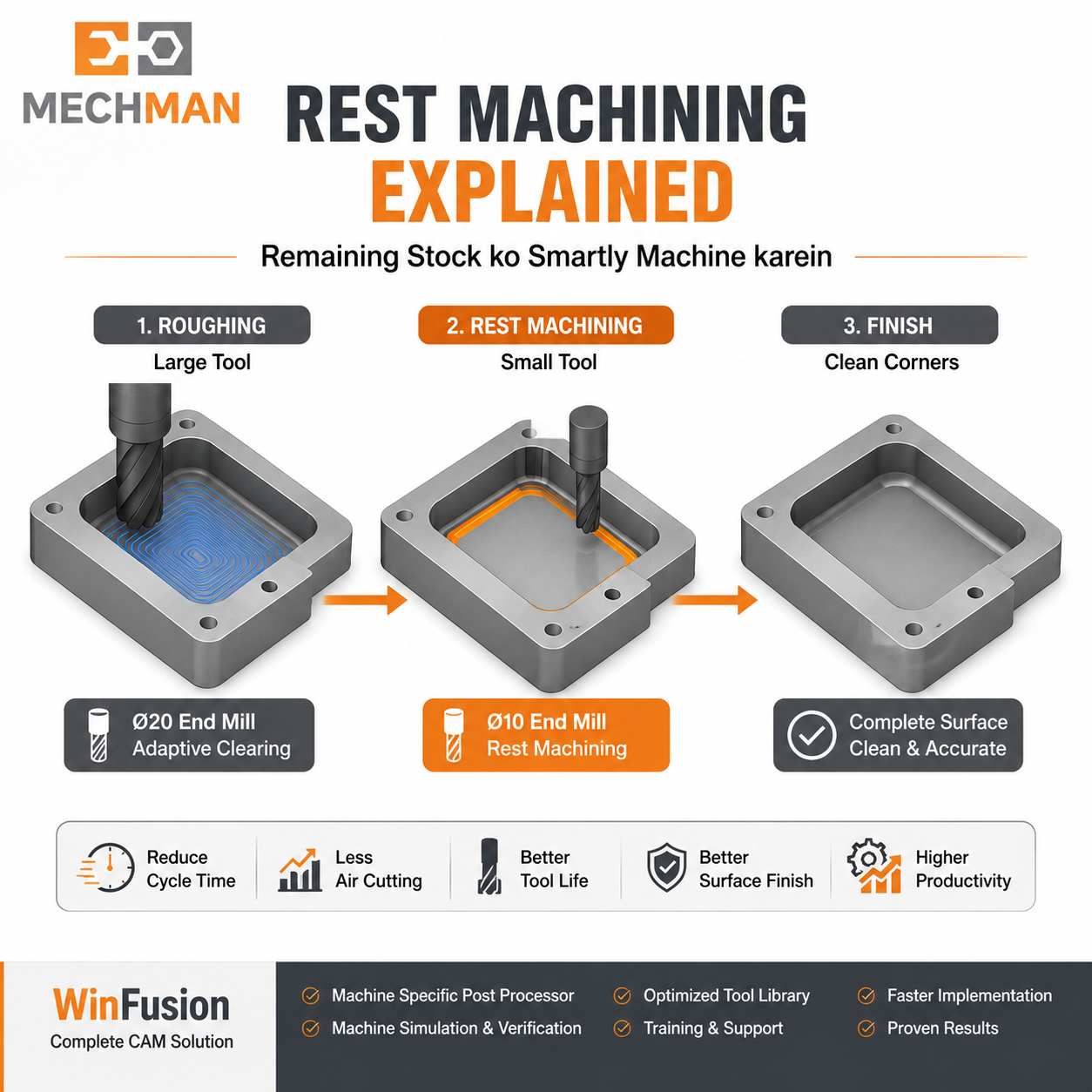

Rest Machining Kaise Kaam Karta Hai? 🔄
S1
Roughing — Bade Tool Se Bulk Material Remove
Sabse pehle ek bada roughing tool (jaise 10mm ya 16mm endmill) se maximum material remove kiya jaata hai:
Lekin: Corners, narrow areas, deep pockets mein bade tool ki wajah se remaining stock (uncut material) reh jaati hai!
S2
Stock Model — CAM Smart Tracking 🧠
Yahan magic hota hai! Fusion Manufacturing mein “In-Process Stock” ya “Rest Stock” feature automatically track karta hai:
→Pehle tool ne kahan katan kiya
→Kahan stock remaining hai
→Corner radius kaisa hai
⭐Next tool exactly wahan jaayega
Smart Stock Tracking = Small tool sirf remaining areas par = Zero unnecessary air cutting = Tool safe!
S3
Rest Machining — Chota Tool, Smart Path ⭐
Smart!
Ab chota tool (jaise 4mm, 6mm) sirf remaining stock areas par jaata hai—baki jagah toolpath nahi hogi:
Chota tool remaining areas mein hi jaata hai — uncut corners, fillets, deep pockets. Air cutting minimum, overload zero!
✓No air cutting
✓Tool never overloaded
⭐Faster cycle time
Rest Machining Ke Types 📋
🔁 Roughing Rest Machining
Large tool ke baad smaller roughing tool se remaining stock remove:
- Multi-step roughing possible
- Larger axial DOC maintain
- Tool sequence: 16mm → 10mm → 6mm
- Maximum MRR at each step
Best for: Deep cavities, large parts, efficient roughing
✨ Finishing Rest Machining
Finish tool ke baad pencil/corner tool se remaining areas finish:
- Corners properly finished
- Fillets clean
- Deep narrow pockets finish
- Perfect surface quality
Best for: Mold cavities, precise components, aerospace parts
Corners aur sharp transitions pe focus karta hai:
- Corner fillets clean
- Sharp inside corners
- Blend with adjacent surfaces
- Part accuracy improve
Best for: Die work, fixtures, precision machining
⭐ Pencil Machining — Special!
Deep narrow areas aur undercuts ke liye specialized rest:
- Very small ball nose tool
- Deep ribs + grooves
- Long reach holders
- Aerospace + medical parts ⭐
Best for: Complex geometry, thin walls, fine features!

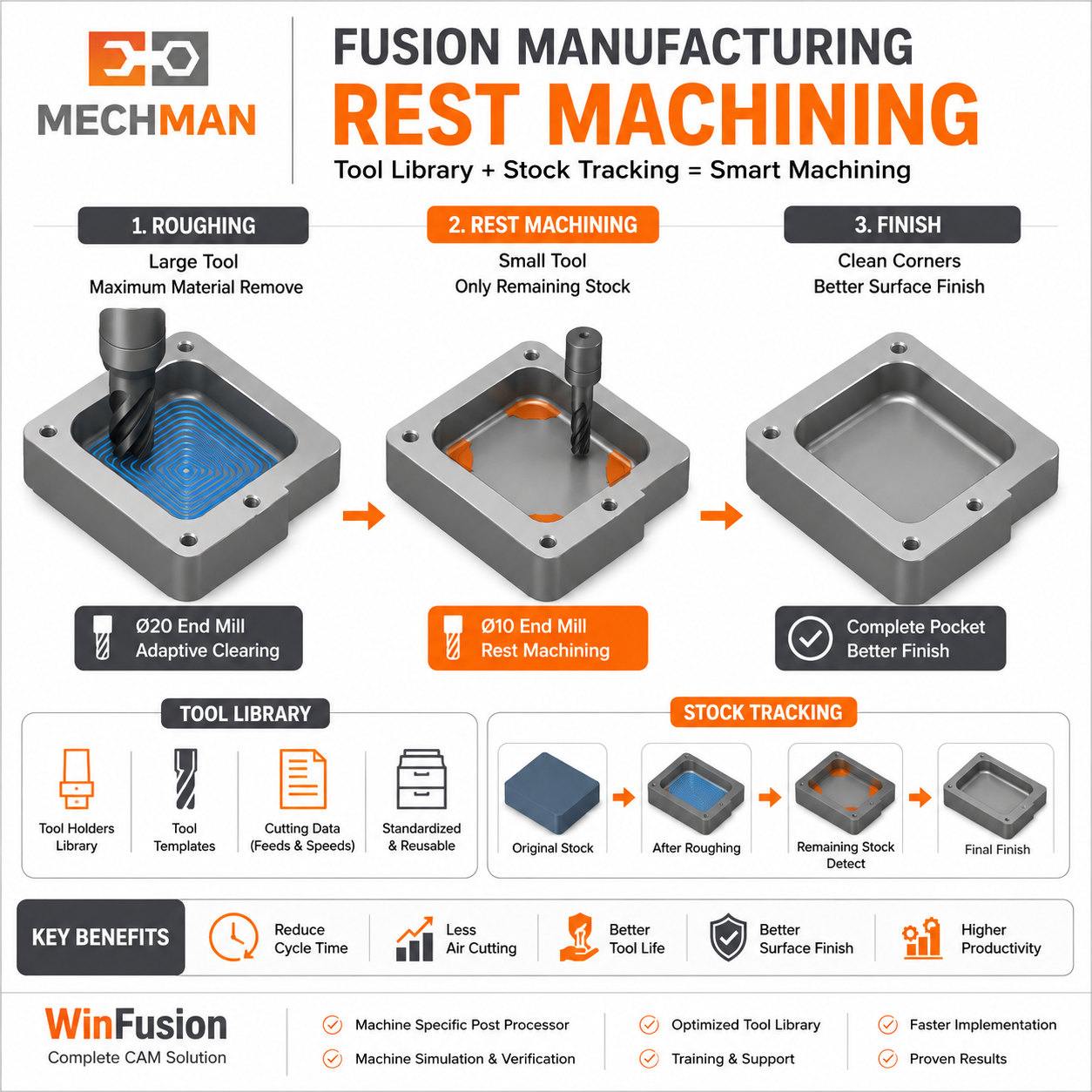

Fusion Manufacturing Mein Rest Machining 💻
Fusion Manufacturing — rest machining setup easy hai. Tool library + in-process stock + adaptive rest. Programmer confidently multiple step machining kar sakta hai!
From Previous Operation
Previous toolpath se automatic stock calculate
From Stock Model
Defined stock model se remaining material detect
Auto In-Process ⭐
Fusion automatically track karta hai har operation ke baad
Adaptive Rest
Pencil ⭐
Steep & Shallow Rest
Corner Rest ⭐
Morph Rest
Parallel Rest
3D Pocket Rest ⭐
📊 Rest Machining Use Karo — Fark Dekho!
| Parameter |
❌ Without Rest |
✅ With Rest Machining |
| Small Tool |
Hits full stock — breaks! |
Only remaining stock ✅ |
| Air Cutting |
Excessive |
Minimum ✅ |
| Cycle Time |
Longer |
Reduced ✅ |
| Corner Quality |
Stock remaining |
Perfect finish ⭐ |
| Tool Life |
Shorter |
Significantly Better ✅ |
WinFusion — Rest Machining Expert Setup 🚀
WinFusion implementation — rest machining strategies properly configure hokar machine par run hoti hain. Programmer pehle din se efficient complex parts program kar sakta hai!
✅Fusion Manufacturing Setup
✅Machine-Specific Post Processor
✅Tool Library + Rest Strategies
✅Machine Simulation + Verify
✅Mold + Aerospace + Medical
✅Programmer Training
✅3/4/5-Axis + Turn-Mill
⚡First Program Se Productive!
Conclusion 🎯
Rest machining ek essential CAM technique hai—especially jab complex 3D parts, mold cavities, aerospace components, ya deep pockets machine karne ho.
WinFusion ke saath Fusion Manufacturing implement karein—rest machining se complex parts zyada fast aur safe machine hoti hain! ✅
⚙️
