5-axis machining aaj ke manufacturing industry ka sabse advanced CNC machining process hai. Aerospace, Medical, Mold & Die, Automotive aur Precision Engineering — sab industries mein complex parts machine karne ke liye iska use bahut tezi se badh raha hai.
Agar aap impeller, turbine blade, aerospace bracket, mold insert ya complex multi-sided components manufacture karte hain — 5-axis machining production time dramatically reduce kar sakti hai.
5-Axis Machining Kya Hai? 🔍
Simple language mein samjho: Traditional 3-axis machine mein tool sirf X, Y aur Z direction mein move karta hai.
5-axis machining mein machine ke paas 2 additional rotary axes hote hain jisse tool ya component rotate ho sakta hai.
X
Left/Right
Y
Front/Back
Z
Up/Down
A
Rotation ⭐
B/C
Rotation ⭐
Result:

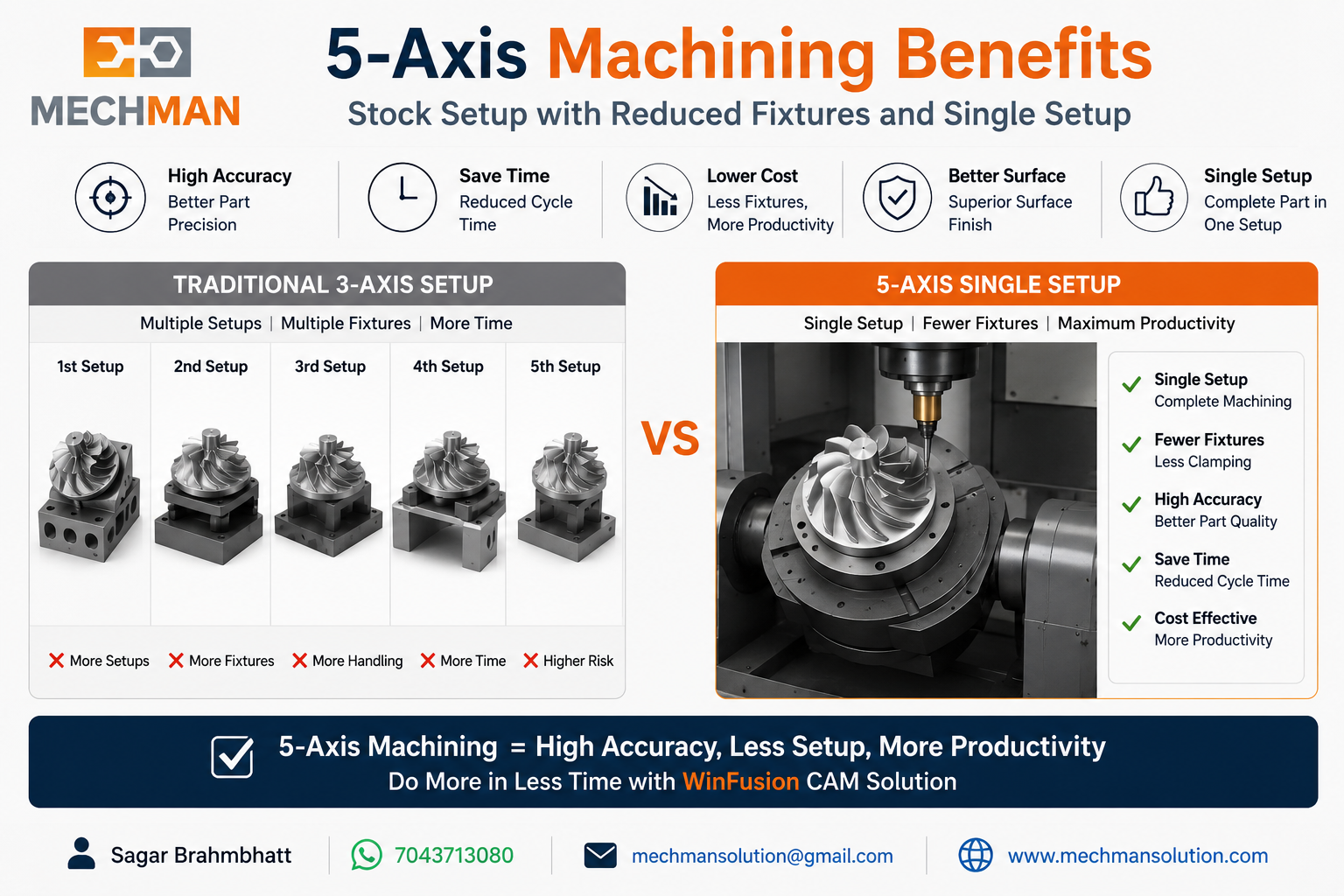

3-Axis vs 5-Axis Machining ⚖️
| Feature | 3-Axis | 5-Axis ⭐ |
|---|---|---|
| Setup Required | Multiple | Single ✅ |
| Complex Parts | Limited | Excellent ✅ |
| Accuracy | Good | Very High ✅ |
| Surface Finish | Average | Superior ✅ |
| Cycle Time | Higher | Lower ✅ |
| Tool Access | Limited | Full Access ✅ |

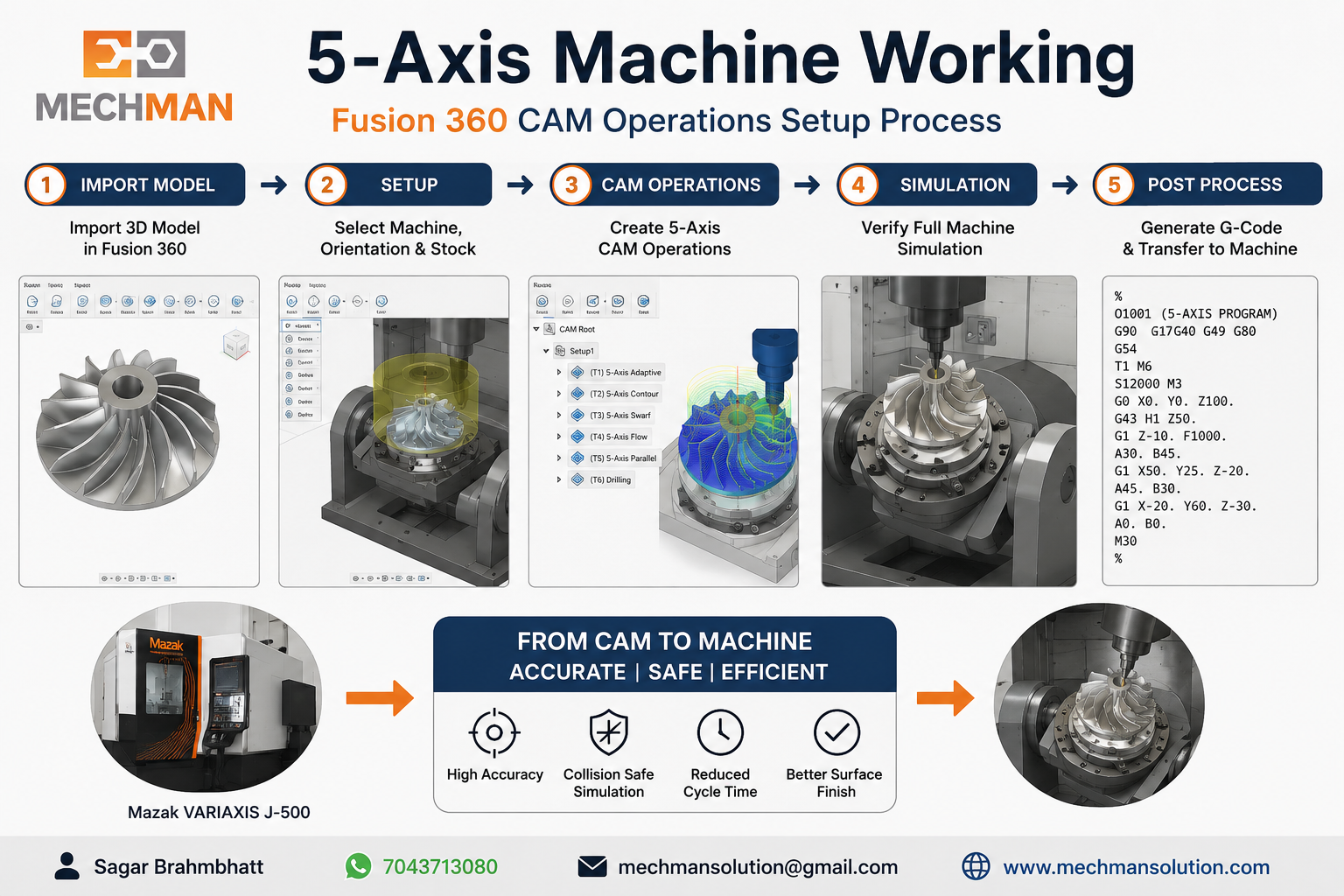

5-Axis Machine Kaise Kaam Karti Hai?
5-axis machine simultaneously tool aur workpiece dono ko rotate kar sakti hai — isse cutter difficult areas tak easily reach kar leta hai.
Example: Impeller Machining
3-Axis Machine
Multiple setups lagenge — manual repositioning, zyada time
5-Axis Machine ⭐
Component auto-rotate, tool optimal angle, better finish, less cycle time
Industries Using 5-Axis Machining 🏭
✈️ Aerospace
- Turbine Blades
- Blisks
- Structural Components
- Engine Parts
⚕️ Medical
- Knee Implants
- Hip Implants
- Surgical Instruments
🏭 Mold & Die
- Injection Molds
- Compression Molds
- Die Casting Dies
🚗 Automotive
- Prototype Parts
- Engine Components
- Performance Parts
Common 5-Axis Machines
Haas UMC Series
Brother Speedio Series
Okuma GENOS 5-Axis
Why CAM Software Is Critical? ⚠️
Bahut si companies 5-axis machine purchase kar leti hain, lekin actual production start karne mein problem aati hai.
Isi wajah se kai companies mein machine ki EMI start ho jaati hai — lekin production start nahi hota. ⚠️
WinFusion — Affordable 5-Axis Solution 🚀
⚙️ 5-Axis Simultaneous Programming
- Impeller Machining
- Blade Machining
- Port Machining
- Swarf Machining
- Multi-Axis Finishing

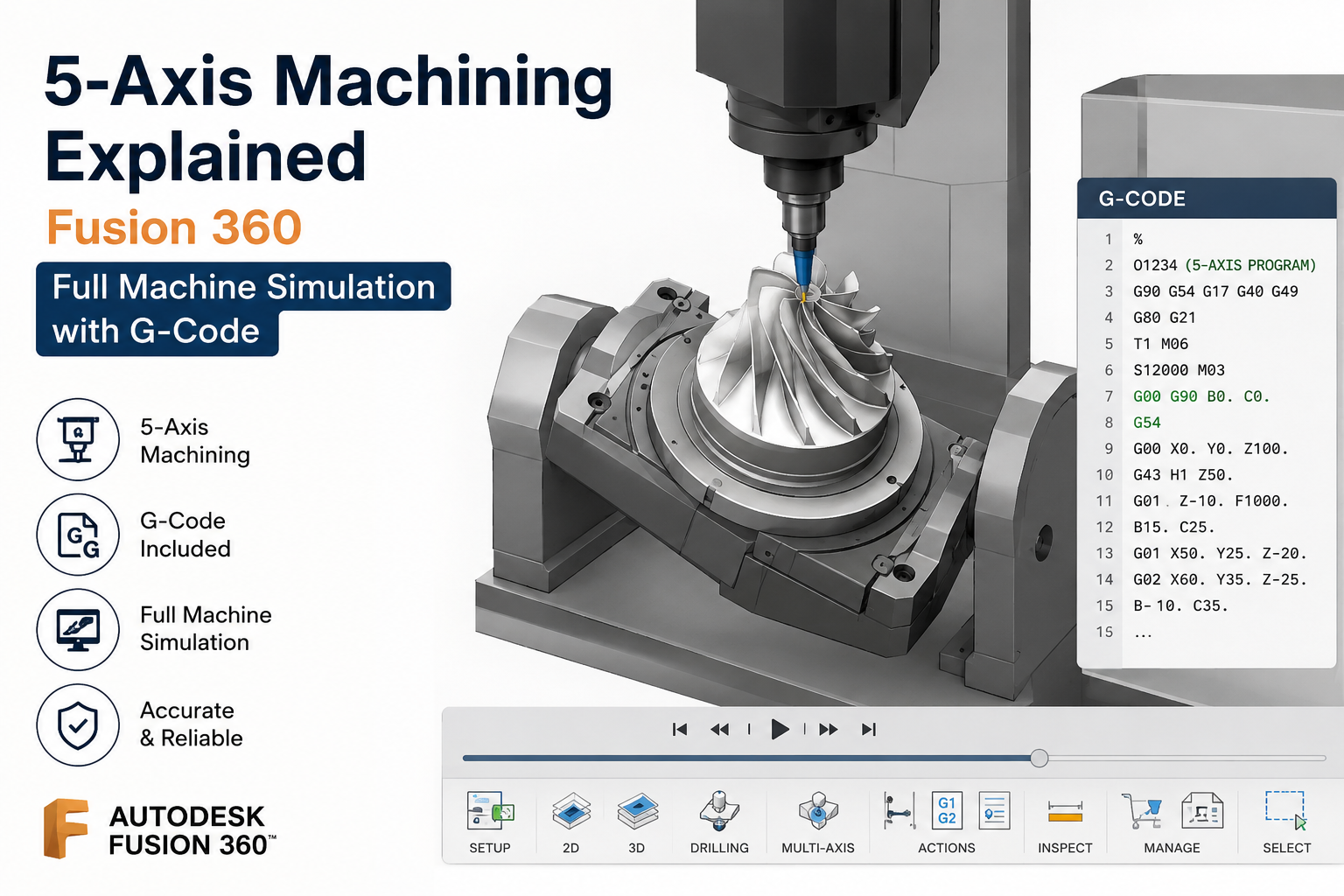

🛡️ Machine Simulation
- Full Machine Verification
- Collision Detection
- Safe Tool Movement

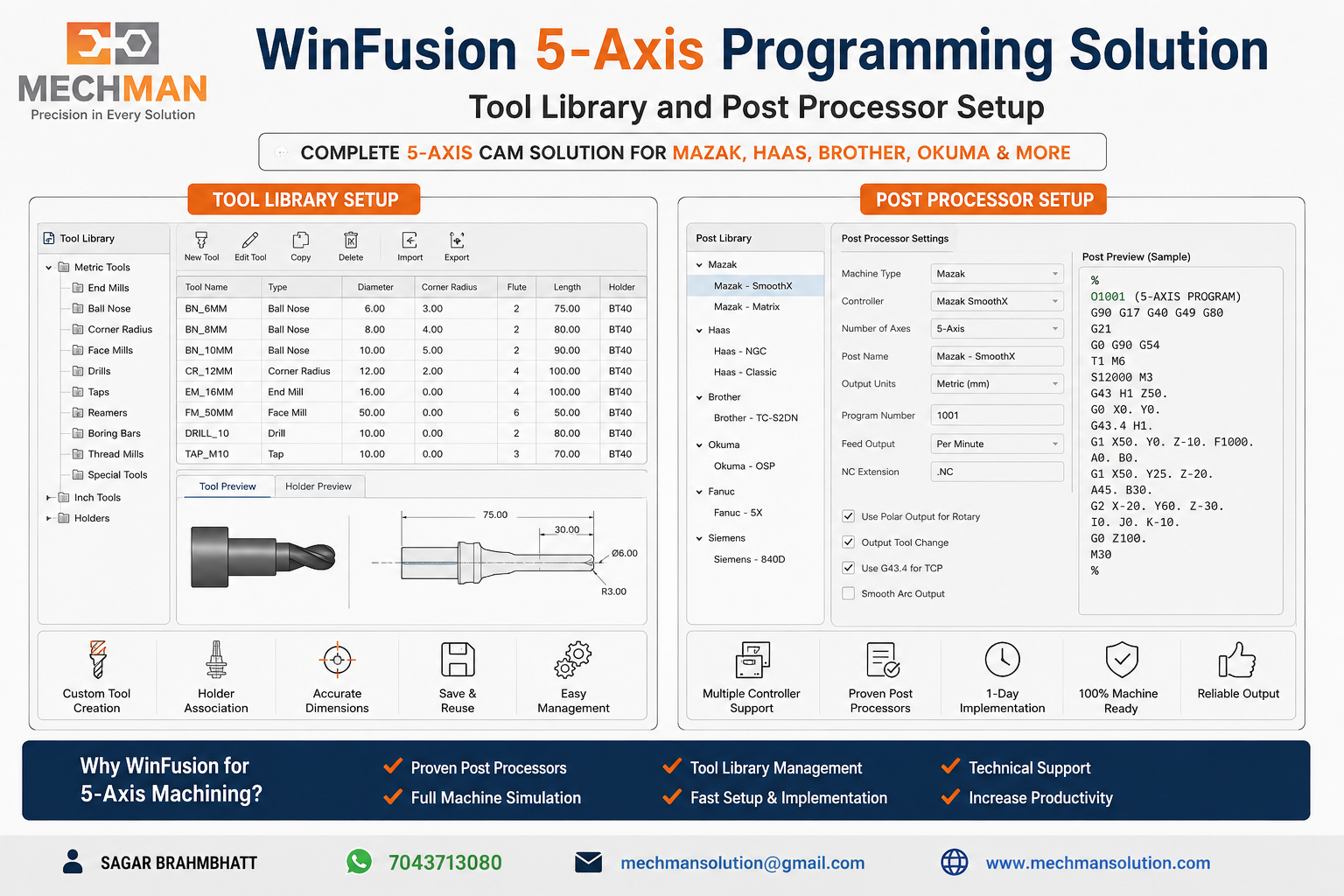

🔧 Proven Post Processors Available For:
Haas
Brother
Okuma
Fanuc
Siemens
Mitsubishi
⚡ Fast Implementation — Most Cases Mein:
Benefits of 5-Axis Machining 📈
⏱️ Reduced Setup Time
Single setup mein multiple faces machine ho sakte hain.
✨ Better Surface Finish
Tool optimal angle maintain karta hai.
🔧 Higher Tool Life
Shorter tools use kar sakte hain.
🚀 Faster Production
Cycle time significantly reduce hota hai.
🎯 Improved Accuracy
Multiple re-clamping errors completely eliminate ho jaate hain.
Who Should Learn 5-Axis Machining? 🎓
CAM Engineers
Tool Room Engineers
Manufacturing Engineers
Aerospace Manufacturers
Mold Makers
Machine Shop Owners
Conclusion 🎯
5-Axis Machining modern manufacturing ka future hai. Better accuracy, lower cycle time, aur complex part manufacturing ki capability — sab kuch ek hi machine mein.
Lekin successful implementation ke liye sirf machine kharidna enough nahi hai — proven CAM software, reliable post processor aur proper training bhi chahiye. WinFusion ke saath aap yeh sab quickly implement kar sakte hain. 🚀
