CNC Tool Breakage Guide
CNC Machining Mein Tool
Kyu Toot Jaata Hai? 🔧
7 Main Reasons + Fusion 360 Se Har Problem Ka Solution
Fusion 360 Machine Simulation — Tool breakage ke reasons screen par pehle hi identify ho jaate hain. Machine par jaane se pehle sab verify karo.
CNC machining mein tool breakage ek common problem hai—lekin agar tool baar-baar toot raha hai to iska direct impact production, machine safety, surface finish aur delivery time par padta hai.
Especially jab company ke paas 4-Axis, 5-Axis, Turn-Mill ya expensive CNC machine ho — tab tool breakage ka cost aur bhi high ho jaata hai.

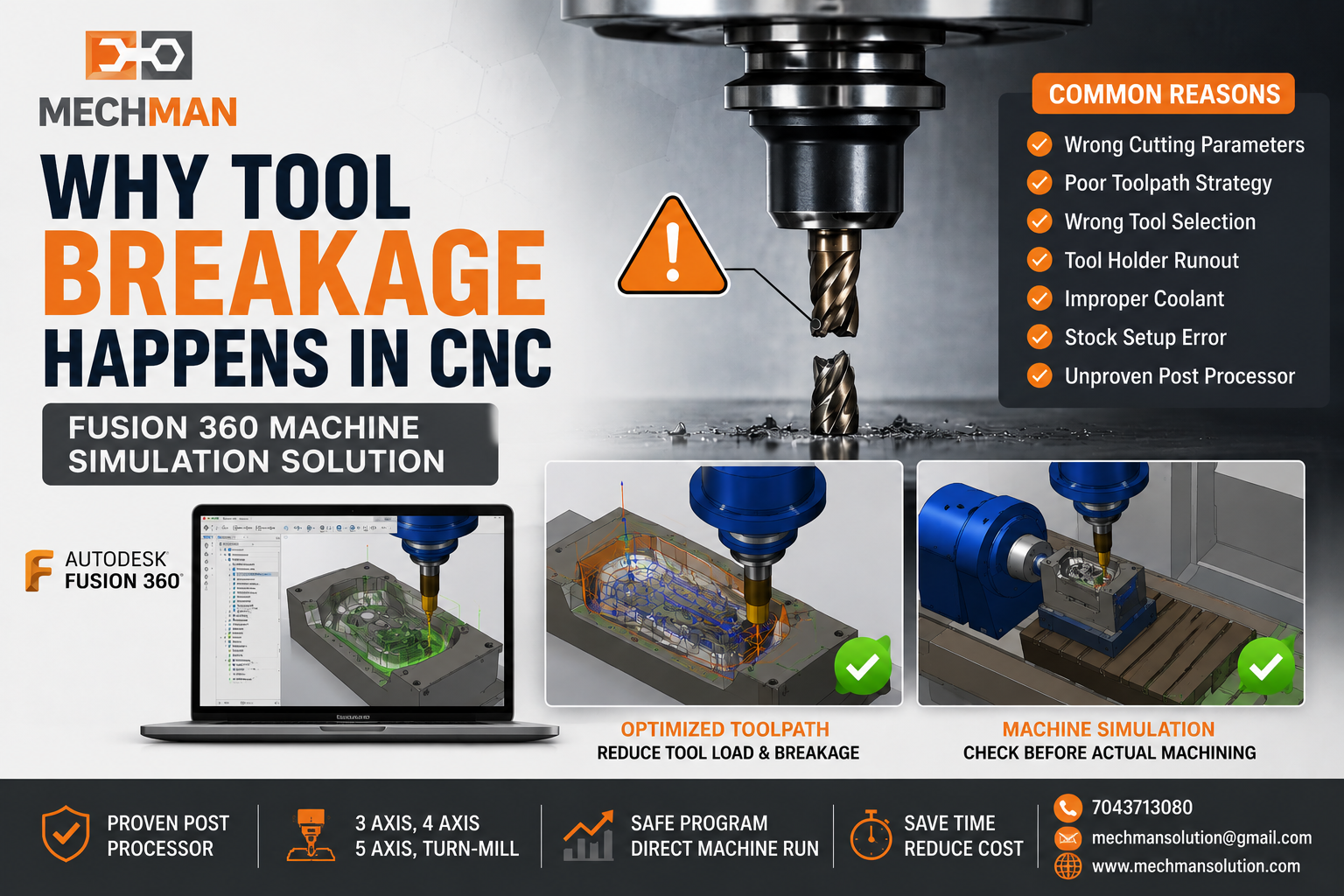

Tool tootne ka reason sirf tool quality nahi hota. Yahan hain 7 real reasons — aur unka Fusion 360 solution.
7 Main Reasons — Tool Kyu Toot Jaata Hai? 🔍
1
Wrong Cutting Parameter ⚙️
❌ Kya Hota Hai
Feed, speed, depth of cut material ke according set nahi — tool par extra load, heat, vibration. Result: breakage.
✅ Fusion 360 Fix
Tool Library mein material-based feeds & speeds set karo — baar baar manually set nahi karna padega.

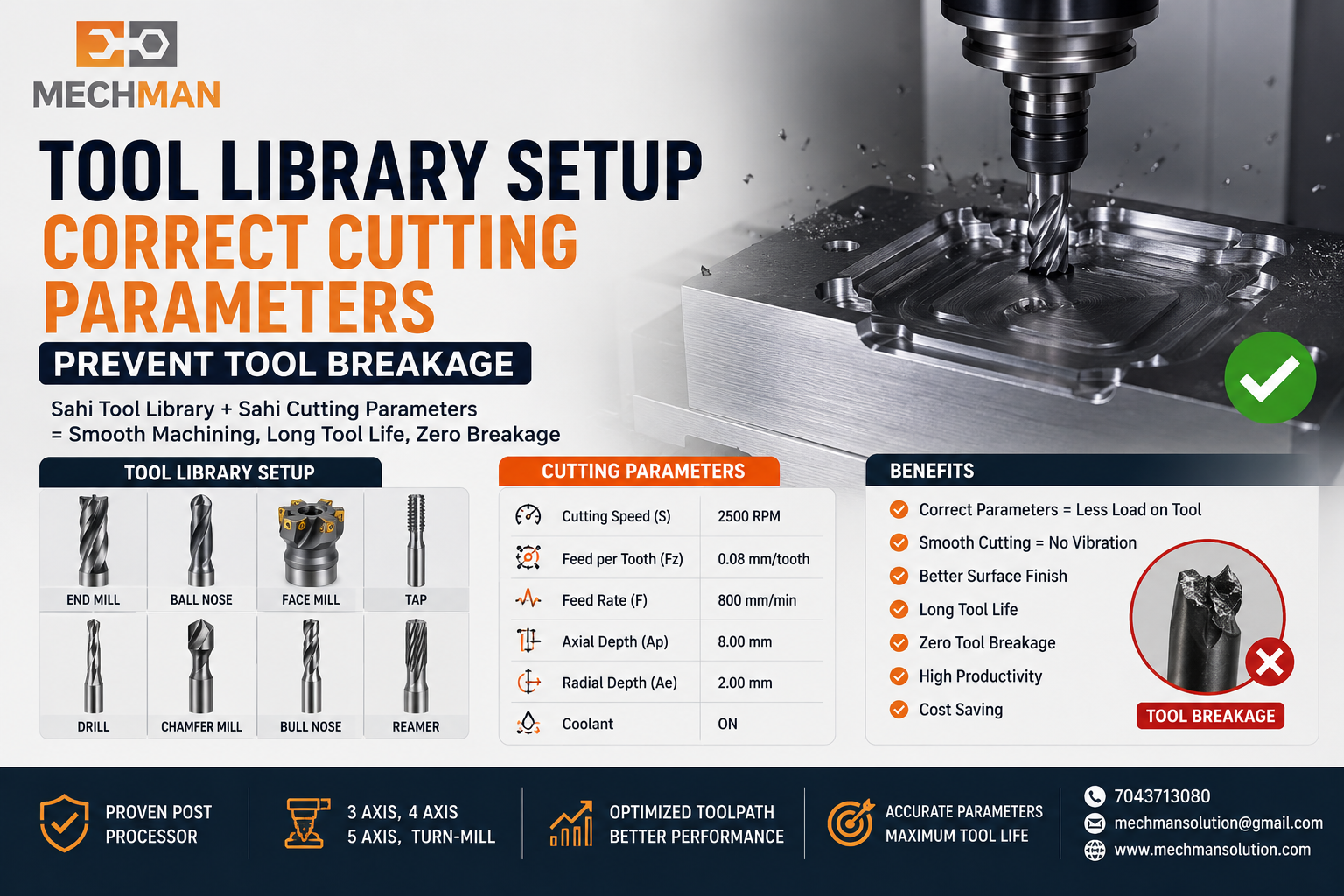

Standardized Tool Library — correct RPM, feed, depth of cut. Ek baar sahi set karo, tool breakage drastically reduce.
2
Poor Toolpath Strategy 📐
Most Common Cause
❌ Kya Hota Hai
- Corner mein heavy engagement
- Full slot cutting
- Sharp sudden movement
- Air cutting ke baad sudden entry
✅ Fusion 360 Fix
- Adaptive Clearing
- Proper lead-in/lead-out
- Smoothing active karo
- Toolpath simulation verify karo

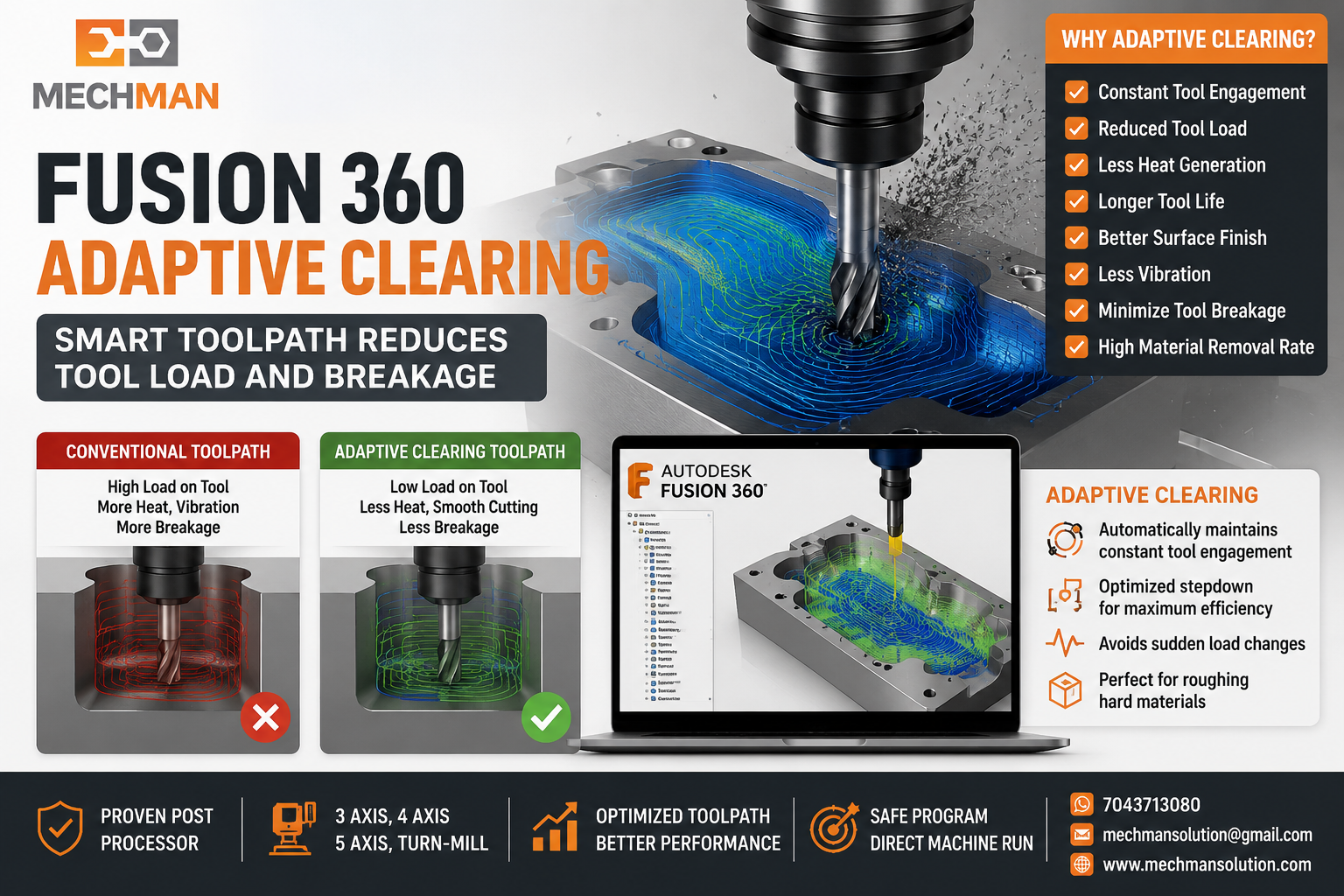

Adaptive Clearing — constant tool load, smooth entry/exit. Tool kabhi sudden heavy load nahi leta — breakage prevent hota hai.
Har material ke liye same cutter nahi hota. Aluminium, steel, stainless, die steel, titanium — sabke liye tool geometry, coating aur flute design alag hota hai.
Agar wrong tool select kiya gaya to tool jaldi wear hoga aur break ho sakta hai. Fusion 360 Tool Library mein material-specific tools properly organize karo.
Agar holder mein runout hai to tool center mein rotate nahi karega. Cutting uneven hoti hai — tool ek side se zyada load leta hai.
Fix: Quality holder use karo, runout check karo (<5 micron ideal), collet cleanliness maintain karo.
Coolant pressure, direction ya flow proper nahi hai to cutting zone mein heat generate hoti hai. Deep drilling, slotting aur high-speed machining mein coolant issue tool breakage ka major reason hota hai.
✓Through-spindle coolant preferred
✓Correct pressure maintain karo
✓Coolant direction check karo
✓Chip evacuation ensure karo
6
Stock Setup Galat Hona ⭐
CAM Fix Available
Agar CAM mein stock size actual stock se match nahi karta — tool unexpected material mein cut karega. Machine par sudden heavy load aayega aur tool toot sakta hai.

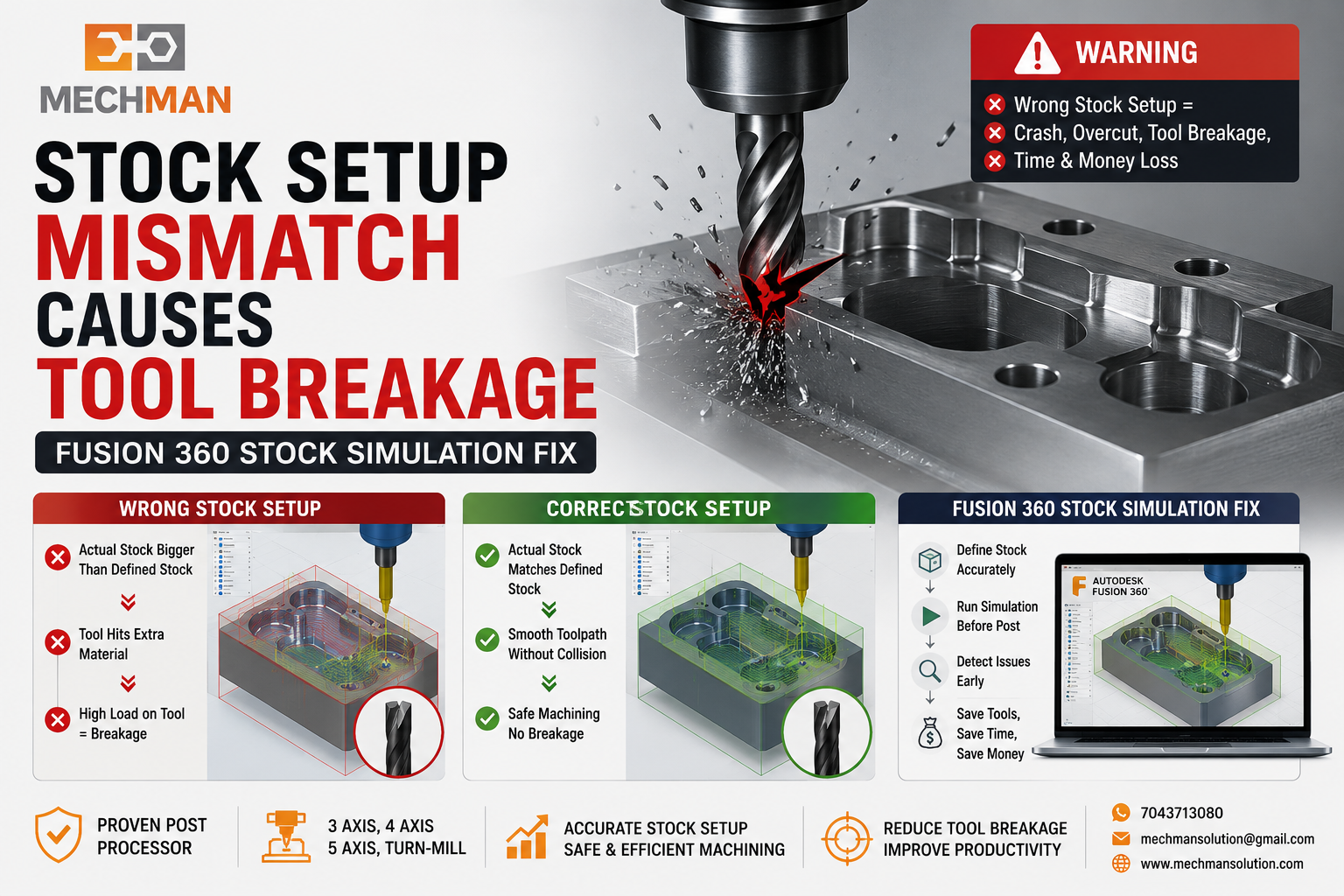

Accurate stock definition — CAM mein actual stock exactly match karo. Unexpected material mein tool entry = breakage. Fusion 360 stock simulation se pehle verify karo.
Fusion 360 Fix: Stock Setup + Machine Simulation se yeh issue machine par jaane se pehle hi check ho sakta hai. ✅
CAM mein toolpath sahi ho sakta hai—lekin agar post processor proven nahi hai to NC output machine ke according correct nahi banega. 4-Axis, 5-Axis aur Turn-Mill mein post processor mistake tool breakage, collision aur wrong movement ka reason ban sakti hai.

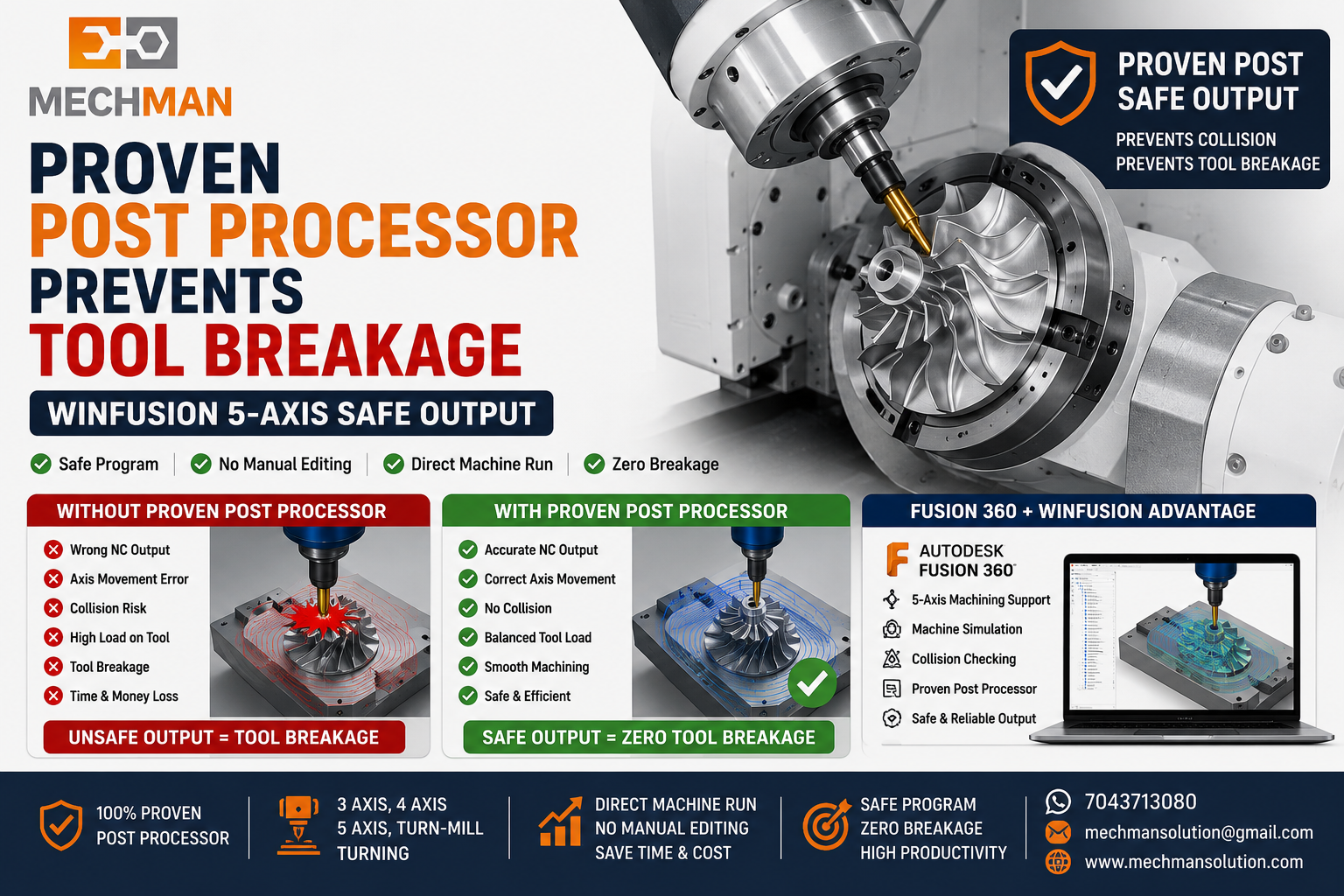

5-Axis Machine Simulation with proven post processor — NC output verify karo. Galat post = wrong movement = tool breakage.
WinFusion: Machine-wise proven post processor provide karte hain — program directly machine par safe run hota hai. ✅
Fusion 360 Tool Breakage Ko Kaise Reduce Karta Hai? 🛡️
Fusion 360 CAM mein complete manufacturing workflow milta hai — programmer toolpath ko machine par bhejne se pehle verify kar sakta hai:
WinFusion Advantage 🚀
WinFusion ka main focus hai customer ko ready-to-run CAM solution dena — sirf software nahi:
✅Fusion 360 CAM Implementation
✅Proven Post Processor
✅Machine Simulation Setup
✅Tool Library Setup
✅5-Axis & Turn-Mill Support
⚡Real Job Cutting Support
Conclusion 🎯
Tool breakage ka reason sirf tool quality nahi hota — wrong parameter, wrong toolpath, stock setup mistake, coolant issue, holder runout aur post processor problem bhi major reasons hote hain.
Agar aap CNC machining mein tool breakage reduce karna chahte ho — Fusion 360 with WinFusion implementation best solution ho sakta hai. 🚀
🔧
