⚡ Adaptive CAM Guide — WinFusion 2025
Adaptive Toolpath — WinFusion Mein
Fast & Smart CNC Roughing! ⚡
Consistent Tool Engagement | Better Tool Life | Faster MRR | Cycle Time Reduce
Adaptive Toolpath — CNC machining mein sirf toolpath banana nahi, material ko efficiently remove karna, tool life improve karna aur cycle time reduce karna equally important hai. WinFusion Adaptive isi ko smartly handle karta hai!
CNC machining mein sirf toolpath banana important nahi—material ko efficiently remove karna, tool life improve karna aur cycle time reduce karna equally important hai. Yahi kaam Adaptive Toolpath smart way mein karta hai!
WinFusion powered by Autodesk Fusion CAM ke through Adaptive Clearing use karke roughing operations ko faster, smoother aur more predictable banaya ja sakta hai!
WinFusion Workflow: 3D Model → Stock Setup → Tool Selection → Adaptive Toolpath → Simulation → Post Processor → CNC Machine! ✅
⚡ Adaptive Toolpath Kya Hota Hai?
Core Concept: Tool engagement consistent maintain karo — load spike avoid karo!
❌ Traditional Pocket/Roughing:
Straight line → LOW engagement
Corner → HIGH engagement spike! ⚠️
Load spike = Tool breakage risk + Machine vibration + Poor finish!
✅ Adaptive Roughing:
Smart path → Consistent engagement ✅
Corner → Auto path adjust ✅
Consistent load = Better tool life + Smoother cut + More reliable!
Adaptive ka simple meaning: Toolpath automatically calculate hota hai — cutter par controlled aur consistent load maintain rahe! ✅
🏆 Adaptive Toolpath Ke 3 Major Benefits
1
Faster Material Removal Rate (MRR) ⚡
Higher depth of cut + efficient flute utilization!
Traditional Roughing:
- Shallow depth of cut
- Frequent retract moves
- Air cutting more
- Slower overall MRR ⚠️
Adaptive Roughing:
- Higher axial depth possible ⭐
- Efficient flute utilization
- Less air cutting
- Better MRR → Less roughing time ✅
Production shop ke liye direct benefit: Less roughing time = Better machine utilization! ✅
2
Better Tool Life — Controlled Engagement! 🔩
Adaptive toolpath smooth cutting motion maintain karta hai. Traditional roughing mein sudden corner engagement se cutter par load increase hota hai — Adaptive ise avoid karta hai!
Consistent Load
No sudden spikes
Smooth Motion
Arc transitions
Better Life ⭐
More cuts/tool
3
Reduced Cycle Time — High Production Impact! ⏱️
❌ Traditional:
Unnecessary air cutting + Inefficient movement → Longer roughing time!
✅ Adaptive:
Efficient removal → Shorter cycle → More parts per shift!
High-production environment mein har component par save hua time = significant production saving! ✅
⚙️ Adaptive Sirf 3-Axis Ke Liye Nahi — Multi-Axis Bhi!
WinFusion — Different CNC Applications Ke Liye Adaptive Implementation:
Adaptive Clearing — 3-Axis se 5-Axis tak. Complex components mein Machine Simulation + Proven Post Processor ke saath sabse effective. WinFusion complete multi-axis implementation provide karta hai!
✅3-Axis Milling ⭐
✅4-Axis Machining
✅5-Axis Complex ⭐
✅Turn-Mill
✅Die & Mould ⭐
⭐All production CNC!
🎮 Adaptive + Simulation + Proven Post = Complete Solution!
🎮
Simulation Kyun Zaroori? ⭐
Adaptive toolpath ke baad direct machine par run karna ideal nahi!
- Machining movement verify ⭐
- Stock removal check
- Machine behavior see
- Collision detect early
- Confidence before run ✅
Complex CNC mein simulation = valuable confidence! ✅
⚙️
Proven Post Processor ⭐
Critical!
CAM powerful ho — lekin machine ko correct NC code chahiye!
→Adaptive path → post → NC code
→Machine-specific proven post ⭐
→Min manual NC editing ✅
WinFusion: Proven post = production ready! ✅

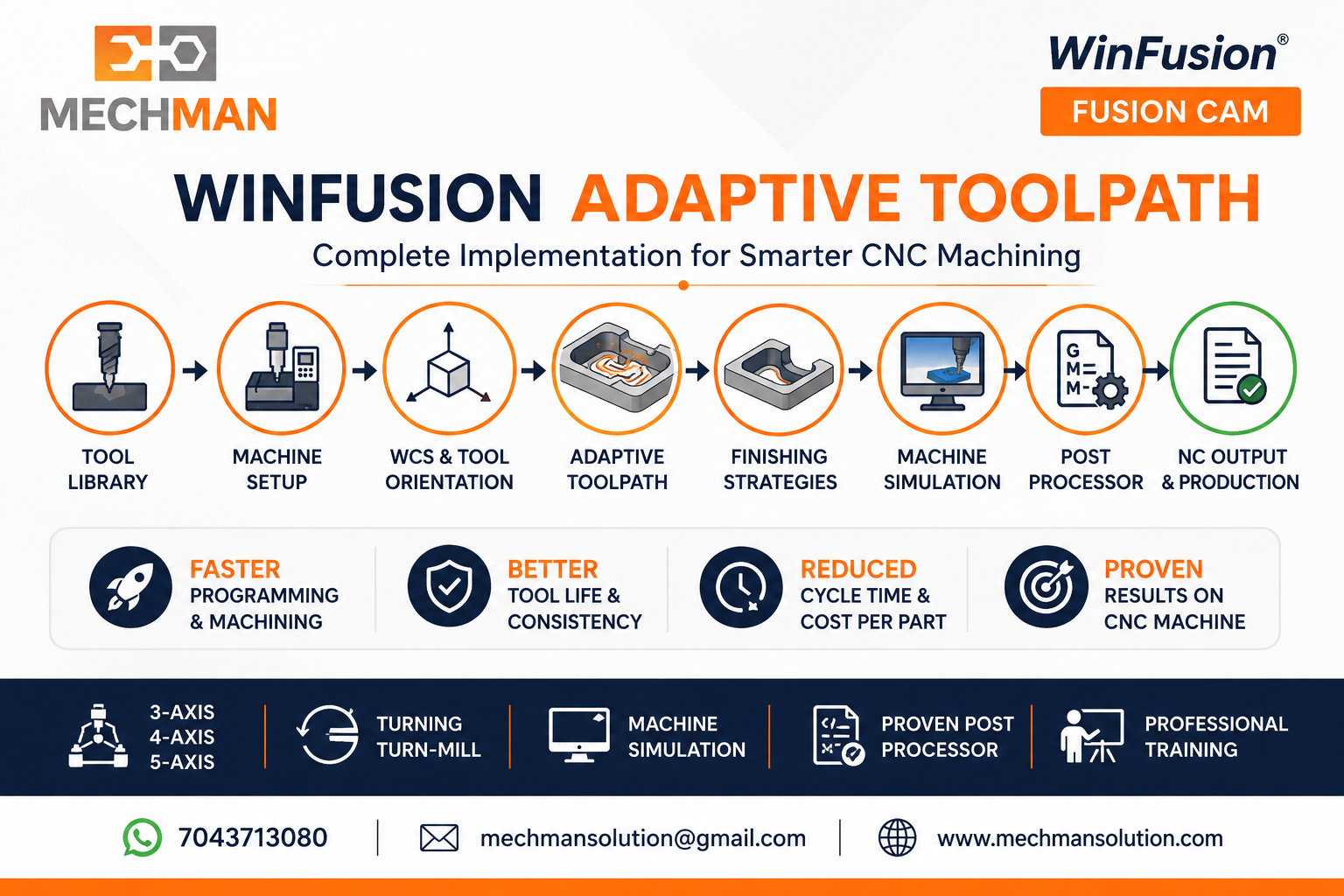

🗺️ WinFusion Adaptive — Complete Implementation Path
Adaptive Toolpath sikhane ke baad poora production-ready workflow milta hai:
Tool Library
→
Machine Setup
→
WCS + Orientation
→
Adaptive ⭐
→
Finishing
→
Simulation
→
Post → NC ✅
WinFusion: Adaptive Toolpath sikhana + complete production-ready CAM workflow implement karna. CAM generate karo → Simulate karo → Post process karo → Machine par safely execute karo!
⚠️ New 4-Axis / 5-Axis Machine Li Hai? — Ye Important Hai!
Action Required!
Machine installation ke baad agar CAM implementation ready nahi hai — machine ki EMI chalu, lekin full production capability utilize nahi ho rahi!
❌Post processor ready nahi → Delay!
❌Programming workflow proven nahi → Delay!
✅WinFusion: Adaptive + Post + Simulation
✅Day 1 production possible! ⭐
WinFusion: Software + Proven Post + Machine Simulation + Training = Integrated CNC workflow! ✅
🏭 Adaptive Toolpath Kiske Liye Sabse Useful?
✅CNC Milling Shops ⭐
✅Die & Mould Machining
✅Precision Components
✅Automotive Parts ⭐
✅Aerospace Type Components
✅Heavy Engineering
✅Complex Machining Jobs
⚡Any valuable CNC time!
Adaptive Toolpath — Smart Choice! ⚡
Adaptive Clearing WinFusion mein aapki roughing ko smarter banata hai — consistent tool engagement, better life, faster cycle. Aur WinFusion mein sirf toolpath nahi — complete production workflow milta hai!
WinFusion: Adaptive Toolpath + Simulation + Proven Post = CAM Programming to Proven CNC Production! ⚡🚀
⚡
