Toolpath Optimization Guide
CNC Toolpath Optimize Kaise
Karein? ⚙️
Fusion 360 CAM — 8 Proven Techniques Se Machine Ka Full Potential Nikalo
Fusion 360 Machine Simulation — Optimized toolpath ka final test yahan hota hai. Simulation pass = production confident.
CNC machining mein toolpath optimization ka matlab sirf program banana nahi hota. Iska main goal hota hai:
✓Cycle time reduce karna
✓Tool life improve karna
✓Surface finish better banana
✓Machine collision avoid karna
Agar toolpath proper optimize nahi hai — machine unnecessary air cutting karegi, tool load uneven hoga, surface finish poor aayegi aur expensive CNC machine ka full utilization nahi hoga.
Toolpath Optimize Karne Ke 8 Steps 🎯
1

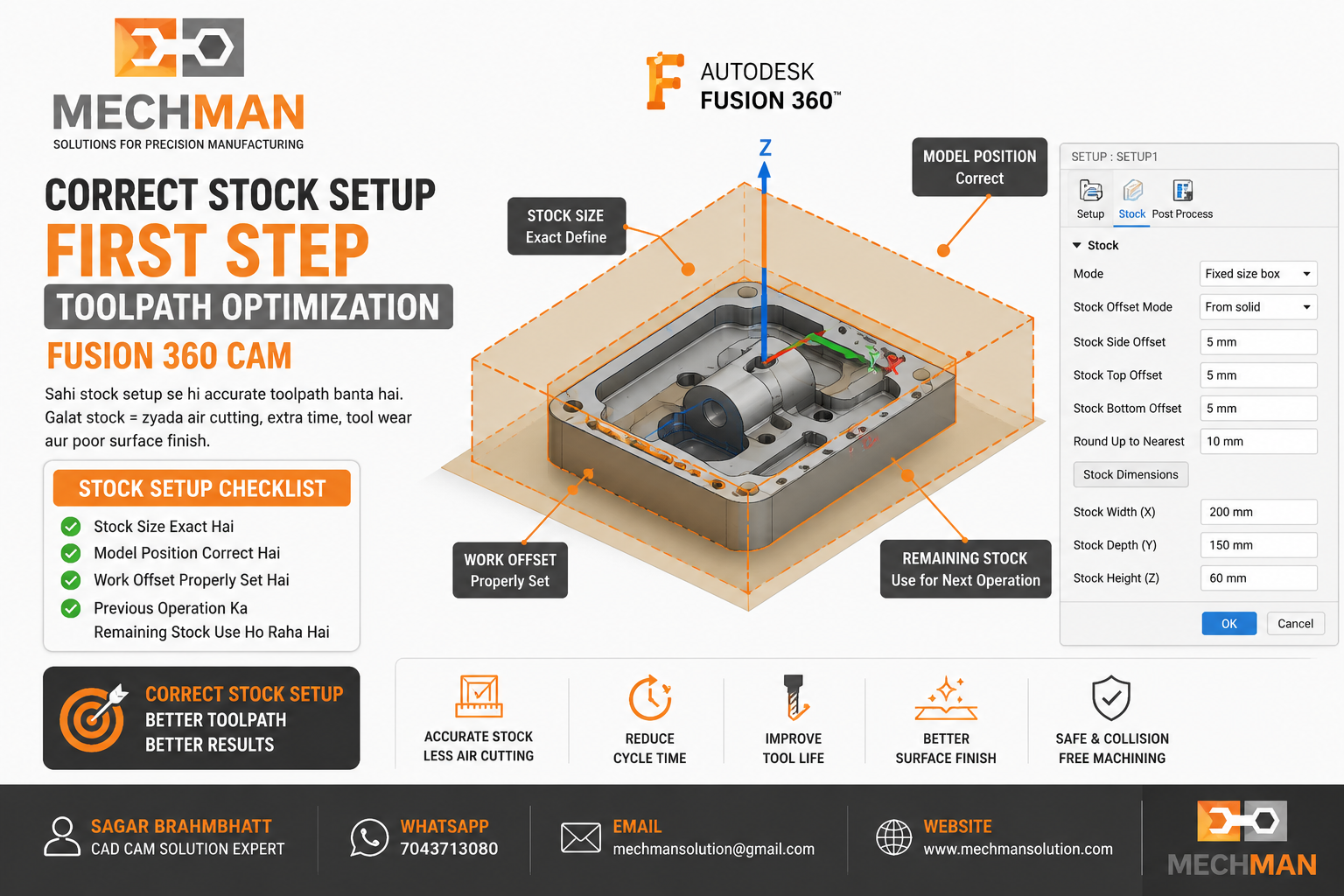

Correct Stock Setup Se Start Karo 📦
Toolpath optimize karne ka first step hai — accurate stock setup. Agar raw material size galat define hai to software unnecessary area machine karega.
Accurate stock definition — pehla step. Galat stock = unnecessary machining = wasted time.
✓Stock size exact define karo
✓Model position correct karo
✓Work offset verify karo
⭐Previous stock use karo
2

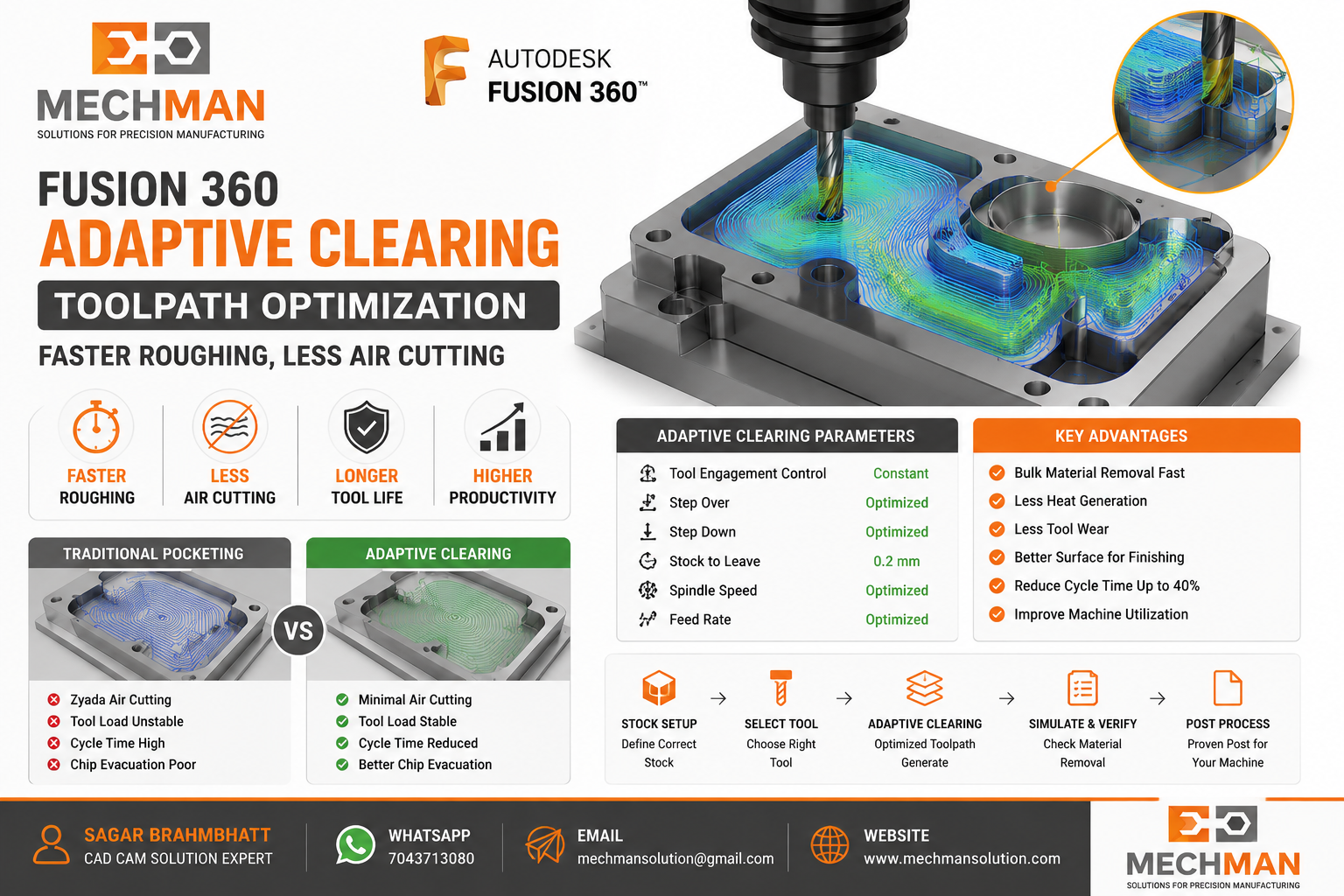

Adaptive Clearing Use Karo ⭐
Game Changer
Roughing mein normal pocketing ke bajay Adaptive Clearing use karna better hota hai. Tool engagement stable rehta hai—shock load kam, material removal faster.
3D Adaptive Clearing — bulk material removal ke liye best. Constant engagement, less vibration, tool life better.
✓Roughing time reduce
✓Tool life improve
✓Less vibration
✓Better chip evacuation
3

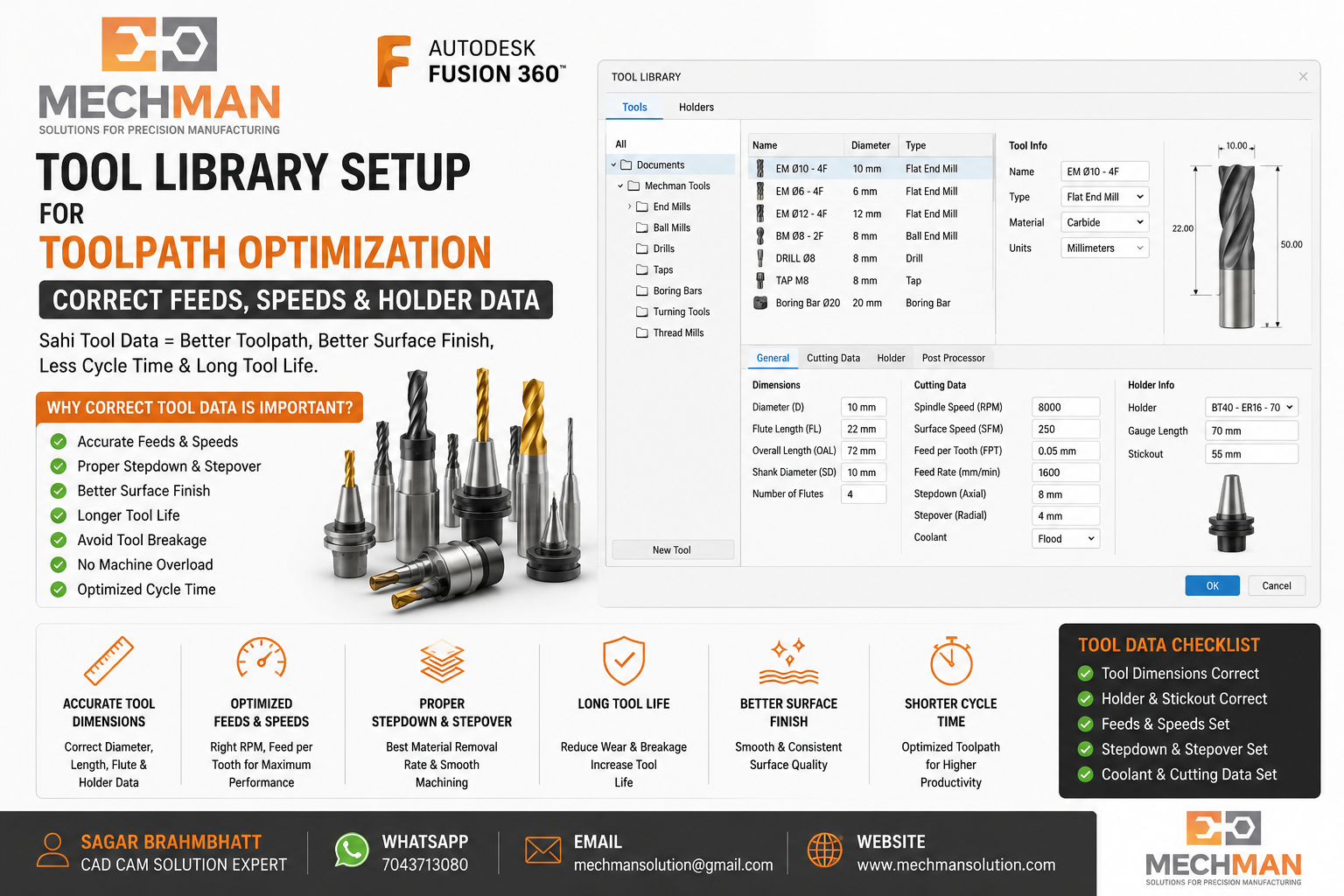

Tool Library Proper Set Karo 🔧
Toolpath optimization tabhi possible hai jab tool data correct ho. Galat tool data se tool breakage, collision aur poor surface finish ho sakta hai.
Tool Library — tool diameter, flute length, holder, feed, RPM, stepdown, coolant sab standardize karo.
4
Linking Moves Optimize Karo 🔗
Kai baar cutting time se zyada time tool ke unnecessary travel mein waste hota hai. Small linking improvement bhi production mein big saving deta hai.
✓Retract height minimize karo
✓Safe Z practical rakho
⭐Lead-in/Lead-out smooth
⭐Keep Tool Down active
5
Rest Machining Use Karo ♻️
Roughing ke baad small area bach gaya hai to same large tool se repeat machining karne ki jagah Rest Machining use karo. Software ko exact remaining material pata hota hai — sirf wahi machine hota hai.
Result: No repeated cutting, less air cutting, faster cycle time, better tool utilization.
6
Finishing Toolpath Smart Select Karo ⭐
Surface Quality Key
Har surface ke liye same finishing strategy use karna correct nahi hota. Right finishing toolpath = better finish + less polishing.
🔵 Flat Area
Horizontal Finishing
🔴 Steep Wall
Contour Finishing
🟣 Complex 3D
Parallel / Scallop
⭐ Mold Surface
Pencil + Finish Combo
7
Machine Simulation Run Karo ⭐
Non-Negotiable
Program machine pe bhejne se pehle Fusion 360 Machine Simulation run karna very important hai. Toolpath ko actual machine digital twin par check karo.
✓Collision check
✓Over travel
✓Holder clash
✓Rotary movement
✓Air cutting
✓Cycle time
8
Proven Post Processor Use Karo 🔗
Final Step
Optimized CAM toolpath tabhi useful hai jab post processor proven ho. Agar post processor proper nahi hai to CAM mein perfect dikhne ke baad bhi machine pe issue aa sakta hai.
✔Proven post processor
✔Machine simulation ready
✔3/4/5-Axis, turn-mill support
⚡Fast implementation
WinFusion Ka Complete Solution 🚀
Agar aapke paas 3-axis, 4-axis, 5-axis ya turn-mill CNC machine hai aur aapko optimized toolpath, proven post processor ya Fusion 360 CAM implementation chahiye — WinFusion help kar sakta hai:
✔Fusion 360 CAM Implementation
✔Proven Post Processors
✔Machine Simulation Setup
✔Tool Library Optimization
✔Training + Onsite Support
⚡Same Machine — More Production
Conclusion 🎯
Toolpath optimization ka main purpose hai — same machine se more production lena.
Fusion 360 CAM mein adaptive clearing, rest machining, tool library, stock setup, linking control aur machine simulation jaise tools use karke CNC cycle time reduce kiya ja sakta hai aur machining safe ban sakti hai. 🚀
⚙️
