Machine Library Setup


⚙️ Machine Library Guide — WinFusion 2025

Machine Library Setup —
Fusion CAM Ka Critical Foundation! ⚙️

CNC Machine Define | Kinematics Setup | Simulation Model | Post Processor Link

🏭

VMC

3-Axis

⚙️

4-Axis

+ Rotary

🔩

5-Axis ⭐

Advanced

🔄

Turn-Mill

Complex

Machine Library = Fusion CAM mein apni actual CNC machine ka complete digital model. Simulation accurate hogi tabhi jab machine ka exact setup — kinematics, axis config, table, spindle — properly define ho!

Bahut CNC programmers Fusion CAM mein toolpath banate hain, simulation run karte hain — lekin simulation mein jo machine dikhti hai woh unki actual CNC machine se bilkul alag hoti hai! Result? Virtual simulation sahi nahi dikhti — real machine par problems!

Machine Library properly setup karna matlab — Fusion mein teri actual CNC machine ka exact digital twin create karna! Simulation accurate → Collision check reliable → Production confident!

WinFusion implementation mein Machine Library setup ek critical step hai — especially 4-Axis, 5-Axis aur Turn-Mill machines ke liye!

🤔 Machine Library Kya Hota Hai?

Simple Language Mein: Fusion CAM ka ek module jahan aap apni actual CNC machine ka complete digital model define karte ho!

❌ Bina Proper Machine Library:

  • Generic machine model simulation
  • Actual machine ka table nahi
  • Rotary configuration wrong
  • Spindle limits unknown
  • Collision check unreliable ⚠️

✅ Proper Machine Library Se:

  • Actual machine simulate ⭐
  • Real axis travel limits
  • Correct rotary config
  • Fixture space accurate
  • Reliable collision check ✅

Machine Library = Fusion mein apni machine ka exact digital twin! ✅

📦 Machine Library Mein Kya Define Hota Hai?

Complete Machine Definition — Ye Sab Parameters Correctly Set Karo:

1️⃣ Machine Type + Configuration

→Machine type: Milling / Turning / Turn-Mill
→Axis configuration: 3-Axis / 4-Axis / 5-Axis
⭐Kinematics type (Table-Table / Head-Table etc.)

2️⃣ Axis Travel Limits

X Travele.g. ±400mm
Y Travele.g. ±250mm
Z Travele.g. 0–400mm
A/B/C Rotary ⭐e.g. ±100°

3️⃣ Spindle Configuration

Max Spindle Speede.g. 12000 RPM
Spindle Powere.g. 15 kW
Tool Changer ⭐24/32 tools

4️⃣ Post Processor Link ⭐

Machine Library mein correct Post Processor link karna — Critical!

→Fanuc, Siemens, Heidenhain etc.
→Machine-specific proven post
⭐WinFusion proven post! ✅

Fusion Machine Library — machine ka axis config, table, spindle, rotary travel limits sab define karo. Simulation accurate tabhi hogi!

🚨 5-Axis Machine Ke Liye Machine Library Kyun Critical Hai?

5-Axis mein galat Machine Library = Complete simulation waste!
Most Critical!

❌ Wrong Config Ka Result:

  • Simulation mein no collision
  • Actual machine par collision 💥
  • Wrong rotary movement
  • Overtravel undetected ⚠️
  • Expensive machine damage

✅ Correct Config Se:

  • Exact machine movement simulate
  • Collision virtually detected ⭐
  • Rotary limits checked
  • Safe production start
  • Machine protected ✅

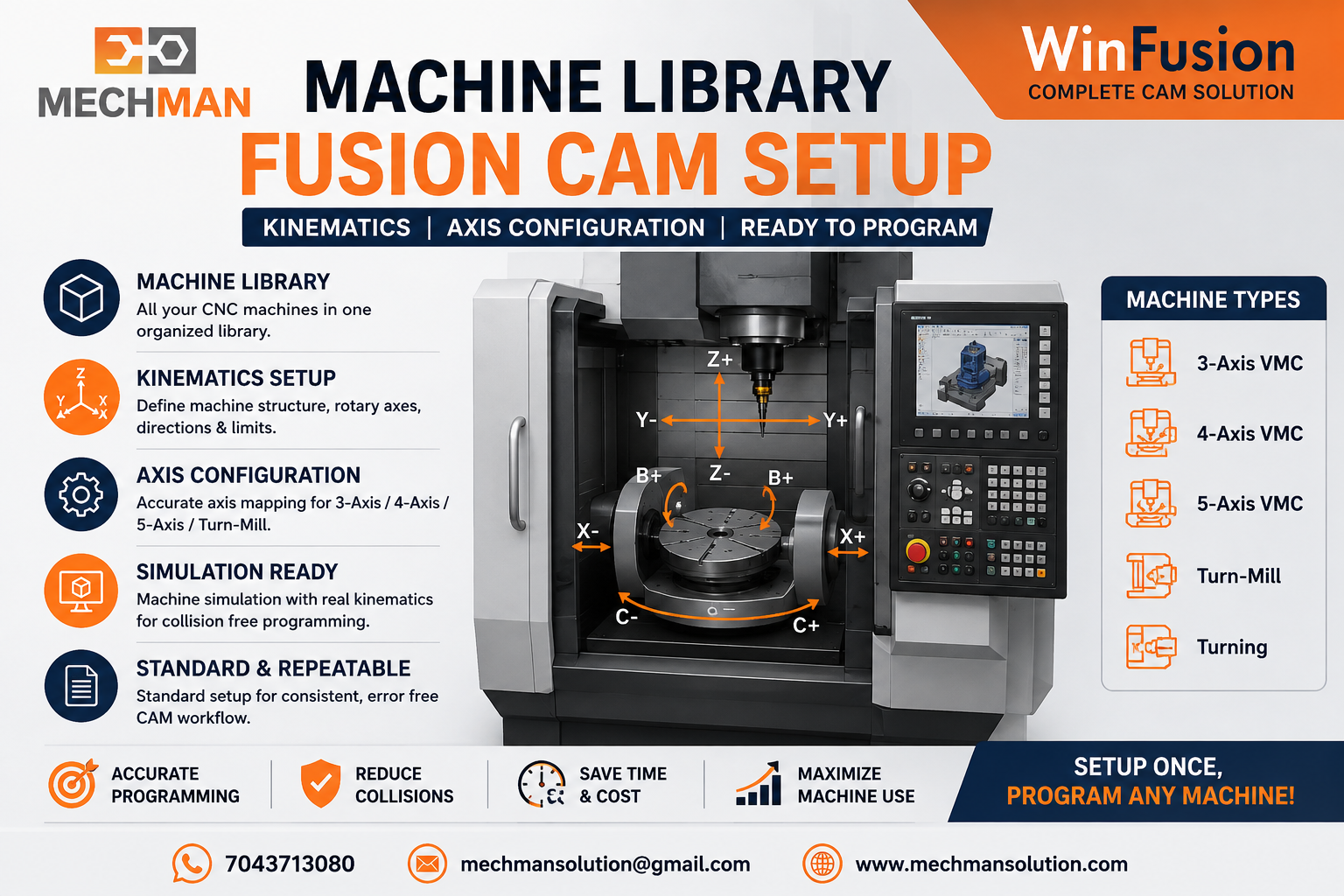

5-Axis Machine Kinematics Types — Kaunsi Hai Aapki?

Table-Table

Both rotary on table

Head-Head ⭐

Both on spindle head

Head-Table ⭐

1 head + 1 table

Machine-specific kinematics galat define karo → Post Processor NC code wrong → Machine crash! WinFusion yahi correctly setup karta hai! ✅

🔄

Turn-Mill Machine Library — Sabse Complex Setup!

Turn-Mill mein ek machine mein multiple components hoti hain — sab define karna zaroori hai:

→Main Spindle configuration
→Sub Spindle setup
⭐Milling Spindle (Live Tooling)
⭐Turret configuration
→C-Axis indexing setup
⭐Synchronization define ✅

Turn-Mill Machine Library galat = Simulation mein collisions nahi dikhenge → Real machine par catastrophic! WinFusion isi ko prevent karta hai! ✅

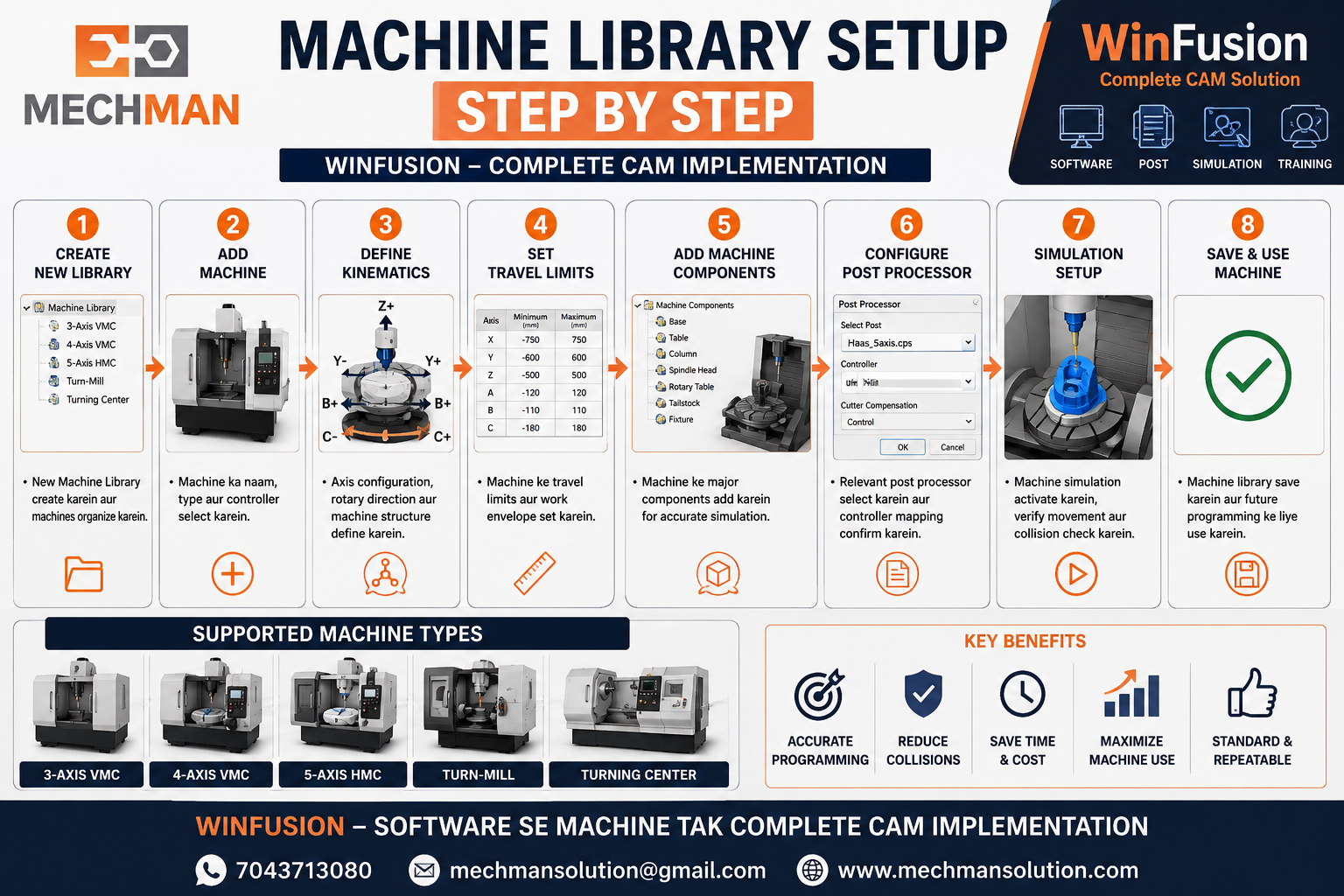

📋 Machine Library Setup — Step by Step Process

WinFusion Machine Library Setup — Actual Implementation Process:
1

Machine Make + Model + Controller Identify Karo

Mazak, Haas, DMG Mori, Fanuc controller — machine ka nameplate + manual check karo

First Step

2

Machine Configuration Type Select Karo

Milling / Turning / Turn-Mill — Machine type define karo

Machine Type

3

Axis Travel Limits Enter Karo ⭐

X, Y, Z, A, B, C — machine spec sheet se exact limits

Limits ⭐

4

Spindle + Rapid Speed Configure Karo

Max RPM, feed rates, rapid speed — actual machine specs

Spindle

5

5-Axis Kinematics Define Karo ⭐

Head-Table / Table-Table / Head-Head — machine ka actual build match karo

Kinematics ⭐

6

3D Machine Model (Optional but Recommended)

Machine manufacturer se 3D model milta hai — simulation visual realistic hoti hai

3D Model

7

Proven Post Processor Link Karo ⭐

Machine Library se correct post link → NC code generate → Machine production!

Post ⭐

Correct machine library = Accurate simulation = Production confidence. WinFusion yahi systematically setup karta hai — machine install hote hi!

🏭 WinFusion — Common CNC Machines ka Library Setup

Machine Type Controller Post Type
Haas VF Series VMC 3-Axis Haas Control Proven Haas ✅
Mazak 5-Axis 5-Axis ⭐ Mazatrol Mazak Proven ✅
Fanuc VMC 3/4-Axis Fanuc 0i/30i Fanuc Proven ✅
Jyoti CNC Turning/Milling Fanuc/Siemens Proven ✅
WinFusion Support: Mazak | Haas | DMG Mori | Okuma | Brother | Fanuc | Siemens | Heidenhain ⭐

Machine Library → Simulation → Production Confidence — Complete Chain! ⭐
Machine Library + Tool Library + Proven Post = Complete simulation. Virtual mein verify → Real machine par confident → Day 1 production!
Machine Library ⭐
+
Tool Library ⭐
+
Proven Post ⭐
=
Reliable CNC Production! ✅

WinFusion — Machine Library + Complete Implementation 🚀

✅Machine Library Setup
✅Proven Post Processor
✅5-Axis Kinematics Config
✅Machine Simulation
✅Tool Library Integration
✅Turn-Mill Full Setup ⭐
✅Training + Support
⚙️Day 1 Productive!

Final Thought ⚙️

Machine Library properly setup karna ek time investment hai — lekin yahi investment simulation accurate banata hai, production safe karta hai aur machine ka ROI faster deliver karta hai!

Simulation

Accurate ✅

Production

Safe ✅

Machine ROI

Faster ✅

Machine make + model + controller WinFusion ke saath share karo — Machine Library + Proven Post + Simulation — complete setup ho jayega! ⚙️🚀

⚙️

Machine Library | Post Processor | Simulation | Training

Mechman Solutions — WinFusion

Autodesk Authorized Partner | Vadodara, Gujarat | Since 2015

Machine make + model + controller + axis config share karo → WinFusion Machine Library setup karega!

www.mechmansolution.com

© 2025 Mechman Solutions | WinFusion — Machine Library Setup Guide | Vadodara, Gujarat
