Simulation & Collision Checking


🎮 Simulation Guide — WinFusion 2025

Simulate & Collision Check —
Machine Par Jaane Se Pehle! 🎮

Virtual Machine Run | 5-Axis Kinematics | Holder Collision | Production Safety

❌ No Simulation

  • Tool break 💥
  • Component scrap
  • Machine crash
  • Spindle damage
  • Machine downtime

VS

✅ WinFusion Simulate

  • Collision detected ✅
  • Fix in software
  • Machine safe
  • Production ready
  • Confident run ⭐

WinFusion Simulation & Collision Check — machine par program chalane se pehle virtually run karke verify karo. Expensive machine, costly material aur complex 5-Axis jobs mein yahi sahi approach hai!

CAM programming complete hone ke baad toolpath ko direct machine par chalane ke bajay — pehle software ke andar virtually run karke check karo! Yahi hai WinFusion Simulation & Collision Check ka purpose!

“Machine par program test karne se better hai — pehle WinFusion mein machine ko virtually chala kar check karo!” ✅

Goal: Sirf animation dekhna nahi — Program ko safer, predictable aur production-ready banana! ✅

🎮 Simulation Kya-Kya Check Karta Hai?

WinFusion Simulation — Ye Sab Virtually Verify Hota Hai:

✓

Tool Correct Direction Mein Move ⭐

Wrong movement early detect

✓

Stock Correct Jagah Remove ⭐

Over-cut / under-cut check

✓

Holder-Fixture Collision ⭐

Holder vs part/fixture check

✓

Machine Axis Limit ⭐

Overtravel prevent

✓

4/5-Axis Rotary Movement ⭐

Rotation correct check

✓

Unwanted Material / Over-cut ⭐

Remaining stock verify

WinFusion me pehle virtually check karo — machine par safe aur confident production start karo! ✅

💥 Bina Simulation Ke Kya Ho Sakta Hai? — Real Scenario!

⚠️ 5-Axis Aerospace Component — No Simulation Scenario:
Actual Risk!

❌ Without Simulation:

  • Screen par toolpath correct dikhta hai
  • Lekin actual machining mein tool tilt hote samay holder fixture hit karta hai
  • CRASH! 💥

Tool break + Fixture damage + Component scrap + Spindle damage + Machine downtime! ❌

→

✅ WinFusion Simulation:

  • Holder collision virtually detected
  • Software mein fix karo
  • Safe program generate karo
  • Machine par confident run ⭐

Zero crash risk + Production ready! ✅

⚡ 5 Types of Collision — Simulation Sab Check Karta Hai!

Collision sirf cutter aur component ke beech nahi — in sab ko check karo!
1

Tool ↔ Fixture ⭐

Tool vice, clamp ya fixture ko hit kar sakta hai — especially deep machining mein!

Critical!

2

Holder ↔ Component ⭐

Cutter safe ho, lekin holder component ki side wall ko touch kare — ye most common issue!

Most Common!

3

Spindle ↔ Fixture

Deep machining mein spindle nose fixture ke paas aa sakta hai — especially low clearance jobs mein!

Deep Jobs!

4

Machine ↔ Machine ⭐

5-Axis mein table rotate hone pe machine structure ke saath interference — kinematics check zaroori!

5-Axis Critical!

5

Tool ↔ Stock (Rapid) ⭐

Rapid movement galat position par ho to tool raw stock mein directly enter kar sakta hai!

Rapid Risk!

🔬 Normal Simulation vs Machine Simulation — Kya Fark Hai?

Normal Toolpath Simulation:

  • Cutter movement dekho
  • Stock removal dekho
  • Over-cut / under-cut check
  • Basic path verify

Basic verification — Good for 3-Axis! ✅

Machine Simulation ⭐:

Advanced!

Complete CNC machine virtual model:

Machine Table ✅
Rotary Axis ⭐
Spindle ✅
Tool+Holder ⭐
Fixture ✅
Workpiece ⭐

Actual machine movement ka best visualization! ✅

5X

5-Axis Machining Mein Simulation Aur Bhi Critical Kyun? ⭐

5-Axis machine mein X+Y+Z+A+C simultaneously move karte hain. Screen par toolpath correct dikhne ke baad bhi actual machine kinematics alag ho sakti hai! WinFusion Machine Simulation yahi verify karta hai!

❌ 3-Axis se difference:

  • Rotary axes simultaneously move
  • Tool continuously tilt
  • Screen dikh raha ≠ Machine actual

✅ Machine Simulation needed:

  • Machine kinematics verify ⭐
  • Rotary collision check
  • Axis limit check ✅

WinFusion ka Critical Combination — Machine Model + Kinematics + Post Processor:

Machine Model ⭐

3D virtual machine

+

Machine Kinematics ⭐

How axes move

+

Proven Post ⭐

NC code correct

=

Production Safe! ✅

Confident CNC run

Sirf toolpath correct hona enough nahi — NC Code bhi machine ke controller aur config ke according correct hona chahiye! ✅

🏆 Production Mein 5 Direct Benefits

1

Machine Crash Risk Reduce ⭐

Expensive machine aur spindle protect karne mein help milti hai

Machine Safe! ✅

2

Tool Breakage Reduce ⭐

Holder aur cutter interference pehle identify ho sakta hai

Tool Protected! ✅

3

Component Scrap Reduce ⭐

Over-cut, wrong orientation ya wrong sequence pehle detect

Part Safe! ✅

4

Setup Time Reduce ⭐

Operator ko repeatedly machine par edit ya dry-run kam karni padte hain

Time Saved! ✅

5

Programmer Confidence Increase ⭐⭐

NC generate karne ke baad actual machine behaviour ka better visualization milta hai

Confident! ✅

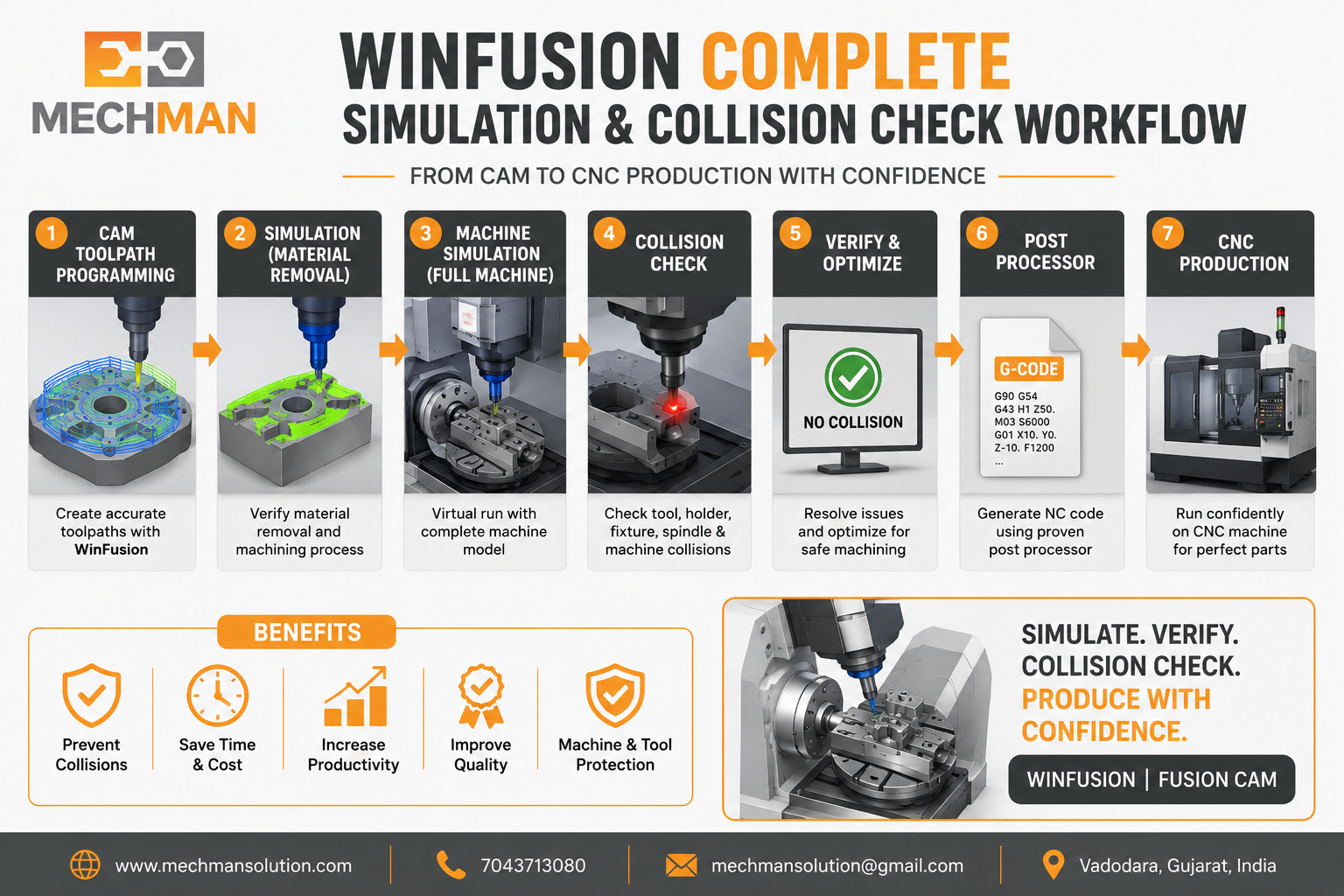

WinFusion — Complete Professional CNC Workflow 🚀

Simulation ka sahi place — CAM ke baad, Machine se pehle!
1

CAD Model + Stock Setup + WCS

2

Tool Library + Tool Orientation

3

Toolpath Programming (Adaptive/Contour/Parallel etc.)

4

Simulate & Collision Check ⭐ — Yahan Verify Karo!

5

Machine Simulation ⭐ — Complete CNC Virtual Run!

6

Proven Post Processor → NC Code

✅

CNC Machine → Production! 🚀

WinFusion: CAM Toolpath → Simulation → Collision Check → Machine Simulation → Proven Post → NC Code → CNC Machine. Programmer confidence increase, machine side editing reduce!

Simple Line Mein Samjho: 🎮

“Machine par program test karne se better hai — pehle WinFusion mein machine ko virtually chala kar check karo!” ⭐

Safer Program

🎮 Virtual! ✅

Predictable

⚡ Confident! ✅

Production-Ready

🚀 Go! ✅

🎮
